NEW G.WEIKE LF0660
Overview

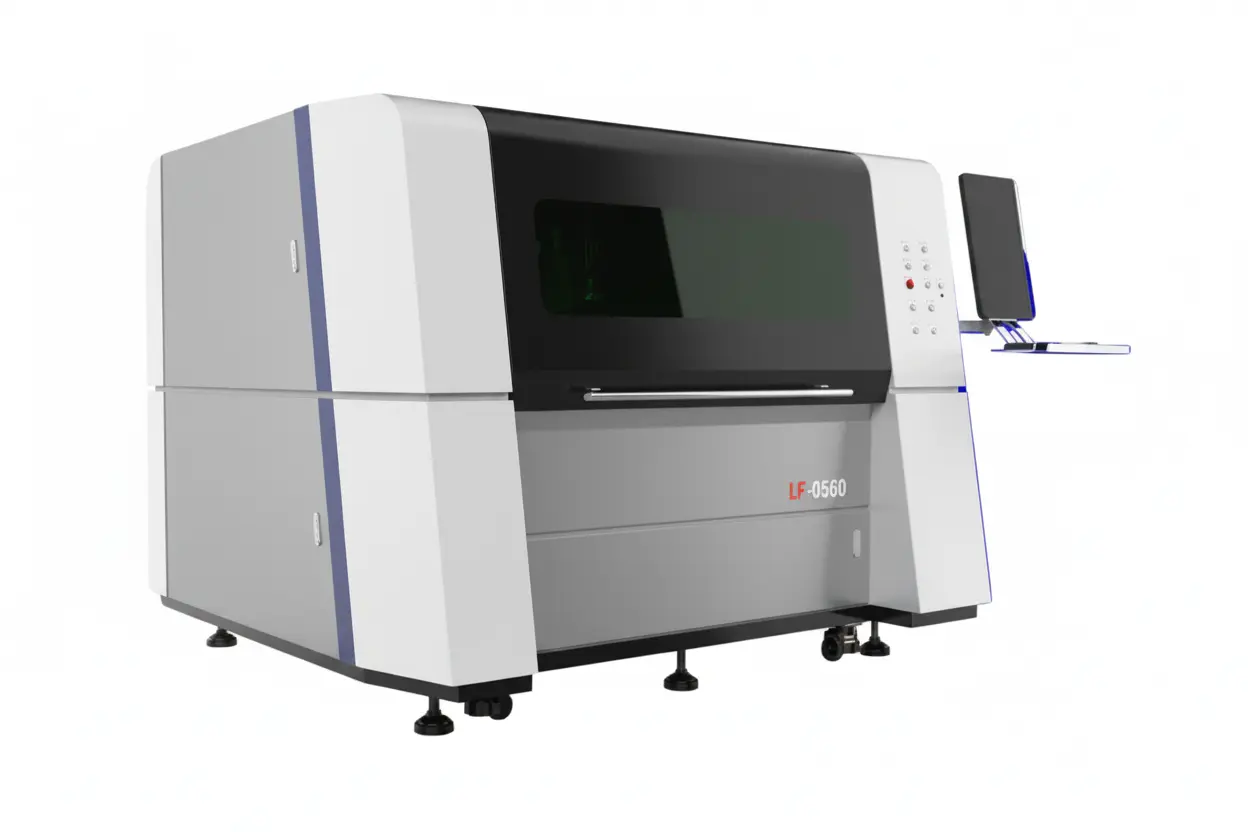

The G.WEIKE LF0660 is a high-precision 3,000W enclosed fiber laser cutting machine designed for precision metal cutting applications. It provides a 600 × 600mm processing area, up to 40 m/min maximum moving speed, 0.5G acceleration, and enclosed laser protection. The machine features a Gweike aviation aluminum gantry, TBI ball screws, Raytools laser head, CYPCUT control system, and Hanli water chiller.
Key Features
3,000W fiber laser power
600 × 600mm maximum processing range
Fully enclosed laser protection
40 m/min maximum X/Y moving speed
0.5G maximum acceleration
±0.03mm X/Y positioning accuracy
±0.02mm X/Y repeat positioning accuracy
150kg working platform load
3rd-generation aviation aluminum beam
Dual-rail and dual-driver design
TBI grinding ball screw
Raytools laser head
CYPCUT control system
Hanli water chiller
HP industrial computer
Designed for high-precision metal fabrication
Specs
Technical Specifications
Cutting Capacity / Parameters
Carbon steel
Stainless steel
Aluminum alloy
Brass
Included With the Machine
3kW LF0660 machine
50kVA frequency converter: Three-phase 208V or 480V input, Three-phase 380V output
15kW air compressor
Two-year consumable spare-parts package
Two-year service and maintenance
Free installation training
Machine Advantages
Enclosed Safety Design
The machine uses a fully enclosed design with protective viewing glass and smoke filtration.
Dual Rail & Dual Driver Design
The dual-rail and dual-driver configuration is designed to maintain straightness and stability during high-speed cutting.
3rd Generation Aviation Aluminum Beam
The machine uses a lightweight aviation aluminum beam designed for high-speed operation.
High Precision Drive System
The machine incorporates TBI grinding ball screws and high-precision motion components.
Packaging & Shipping
Packing size: 2360 × 1950 × 2130 mm
Gross weight: 3000 kg
Manufacturer: G.Weike Tech Co., Ltd
Model: LF0660
Machine Type: Fiber Laser Cutting Machine
Laser Power: 3000W / 3kW
Maximum Processing Range: 600 × 600 mm
X-Axis Travel: 600 mm
Y-Axis Travel: 600 mm
Z-Axis Travel: 40–60 mm
X/Y Positioning Accuracy: ±0.03 mm
X/Y Repeat Positioning Accuracy: ±0.02 mm
Maximum X/Y Moving Speed: 40 m/min
Maximum Acceleration: 0.5G
Working Platform Load: 150 kg
Enclosed Laser Protection: Yes
Machine Dimensions: 1822 × 2152 × 1908.6 mm
Machine Weight: 1000 kg
HS Code: 845611
