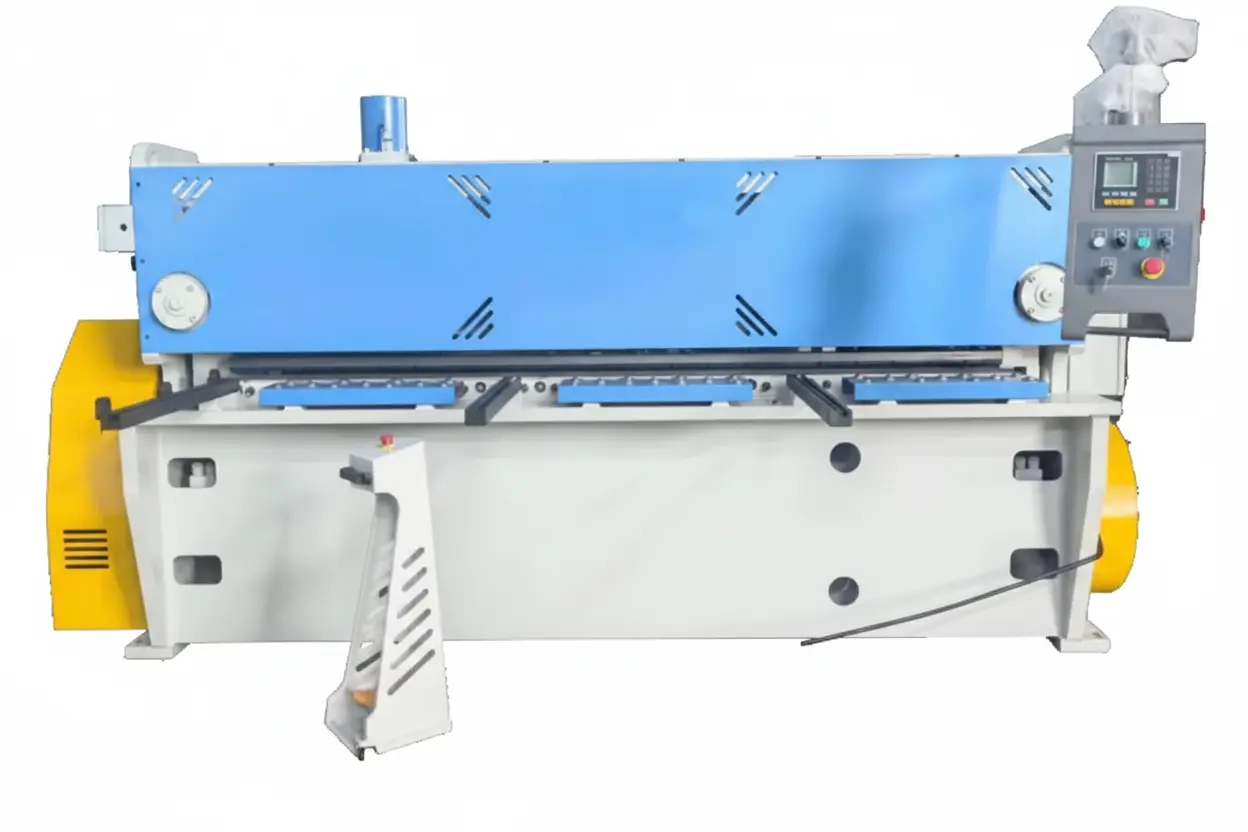

NEW BRENNAN BM11G-4-3200-900H

Key Specifications
Key Features
High-speed pneumatic clutch system for rapid cycling
40 strokes/min for production efficiency
Rigid welded steel frame with stress-relief treatment
Three-point roller guide system for precision cutting
Four-edge cutting blades (Cr12MoV) for extended life
Straight lower blade design reduces sheet deformation
Manual blade clearance adjustment for different materials
Dual guide rail + ball screw back gauge system
Polyurethane hold-down pads to reduce noise and protect material
E21S NC control system for back gauge positioning
Performance & Design Highlights
Designed for high-speed continuous production lines
Pneumatic transmission ensures quick engagement and smooth operation
Flywheel-driven mechanical system for stable cutting force
Capable of handling metal sheets and some non-metal materials
Optimized for uncoiling, leveling, and shearing line integration
Material Capability
Mild Steel (≤ 420 MPa)
Stainless Steel (reduced thickness)
Aluminum
Plastics / rubber sheets (light-duty)
Standard Components
Clutch: Pneumatic
Bearings: HRB
Electrical: Schneider components
Blades: Cr12MoV
Cutting Thickness (Mild Steel ≤ 420 MPa): 0.157 in (~10 gauge)
Cutting Length: 126 in (10.5 ft)
Shear Angle: 1.5°
Stroke Rate: 40 strokes/min
Back Gauge Travel: 29.5 in
Front Support Depth: 39.4 in
Machine Height (Throat / Table Height): 35.4 in
Motor Power: 20 HP (approx.)
