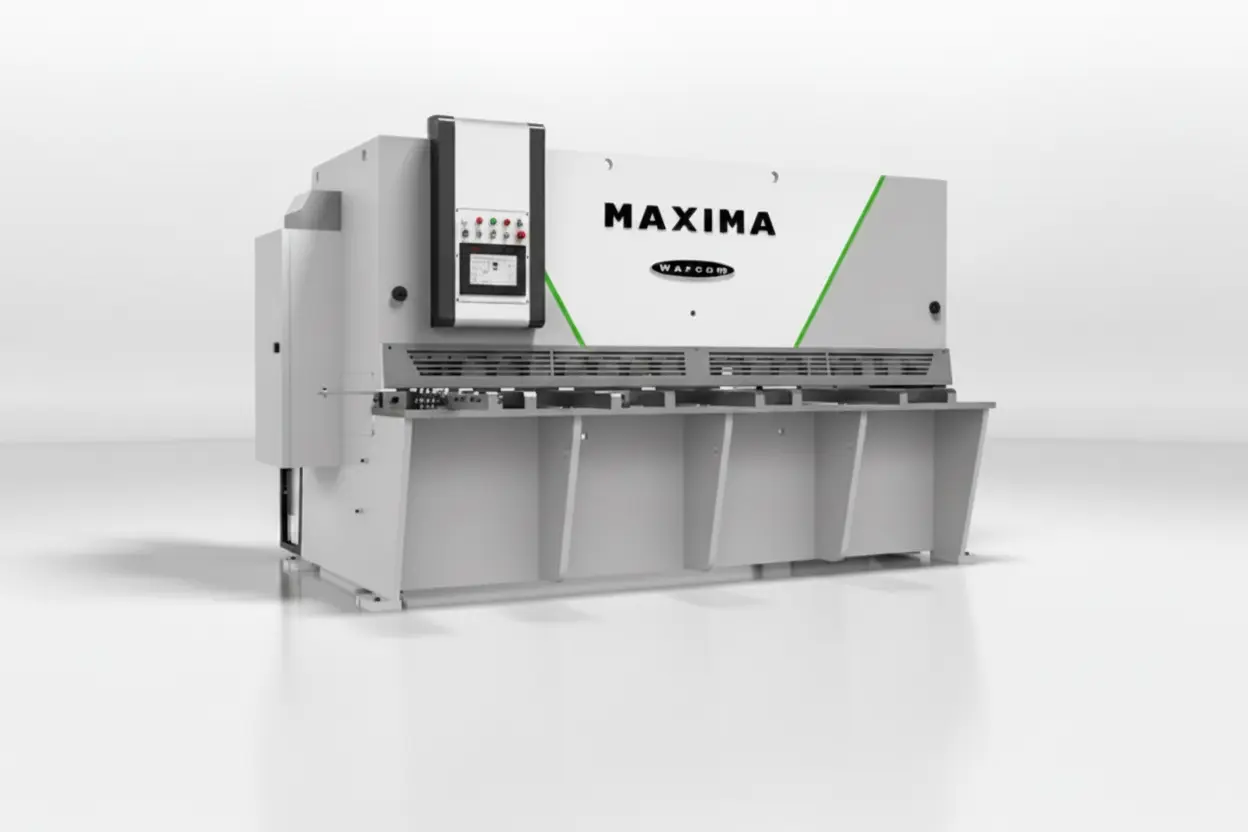

NEW WARCOM MAXIMA 20-4/7

Machine Specifications – Maxima 20-4/7
Alternative Model – Maxima 20-6/9
Standard Equipment
Warcom Maxima machine includes:
Siemens / Weintek 10" Touchscreen CNC Controller
3 CNC controlled axes: Backgauge, Blade clearance, Rake angle
Retractable backgauge during cutting
Hydraulic blade gap adjustment
Hydraulic rake angle adjustment
Remote foot pedal control
Two-edge blades suitable for mild steel and stainless steel
Hydraulic independent hold-down cylinders
Standard front support arms
Standard ruled squaring arm
Automatic centralized lubrication pump
Shadow line cutting system
Machine supplied without first-fill hydraulic oil
CSA compliant
Optional Accessories
Pneumatic Sheet Support Arms
Pneumatic sheet support arms (maximum 3 mm sheet thickness up to 3000 mm)
Pneumatic sheet support arms with follow-down movement (maximum 4 mm sheet thickness)
Ruled Side Square Arms
1000 mm with one swing stop
1500 mm with one swing stop
2000 mm with one swing stop
Additional Accessories
Milled flat bench (up to 3000 mm)
Covers for standard bench
Rubber covers for hold-down pistons
Protractor square arm – 500 mm
Protractor square arm – 1000 mm
Shaped front safety guard
Ball transfer bench
Services
Installation and operator training by Warcom technicians (travel, accommodation, and meals excluded)
Applications
Ideal for:
Sheet Metal Fabrication
Steel Service Centres
HVAC Manufacturing
Agricultural Equipment
Trailer Manufacturing
Metal Fabrication Shops
General Engineering
Industrial Manufacturing
Why Choose the Warcom Maxima Series?
Premium Italian engineering
CNC-controlled precision cutting
Hydraulic blade gap and rake angle adjustment
Fast production with up to 48 strokes per minute
Heavy-duty industrial construction
User-friendly touchscreen CNC interface
Reliable hydraulic performance
CSA Certified safety standards
Manufacturer: Warcom
Model: Maxima 20-4/7
Machine Type: Hydraulic Guillotine Shear
Cutting Length: 2050 mm (80.7")
Distance Between Side Frames: 2150 mm
Throat Depth: 500 mm
Mild Steel Capacity: 4 mm Nominal / 7 mm Maximum
Nominal Thickness: 4 mm
Blade Angle: 2°
Rake Angle Adjustment: 0°30' – 4°
Backgauge Stroke: 750 mm
Stroke Rate: 26–48 strokes/min
Main Motor: 9.2 kW
Electrical Supply: 400V / 50Hz / 3 Phase
Approximate Weight: 5,500 kg (12,125 lbs)
Cutting Length: 2050 mm
Distance Between Side Frames: 2150 mm
Throat Depth: 500 mm
Mild Steel Capacity: 6 mm Nominal / 9 mm Maximum
Nominal Thickness: 6 mm
Blade Angle: 2°
Rake Angle Adjustment: 0°30' – 4°
Backgauge Stroke: 750 mm
Stroke Rate: 26–48 strokes/min
Main Motor: 11 kW
Electrical Supply: 400V / 50Hz / 3 Phase
Approximate Weight: 6,000 kg (13,228 lbs)
