NEW LINMAC LD-1440E
Overview

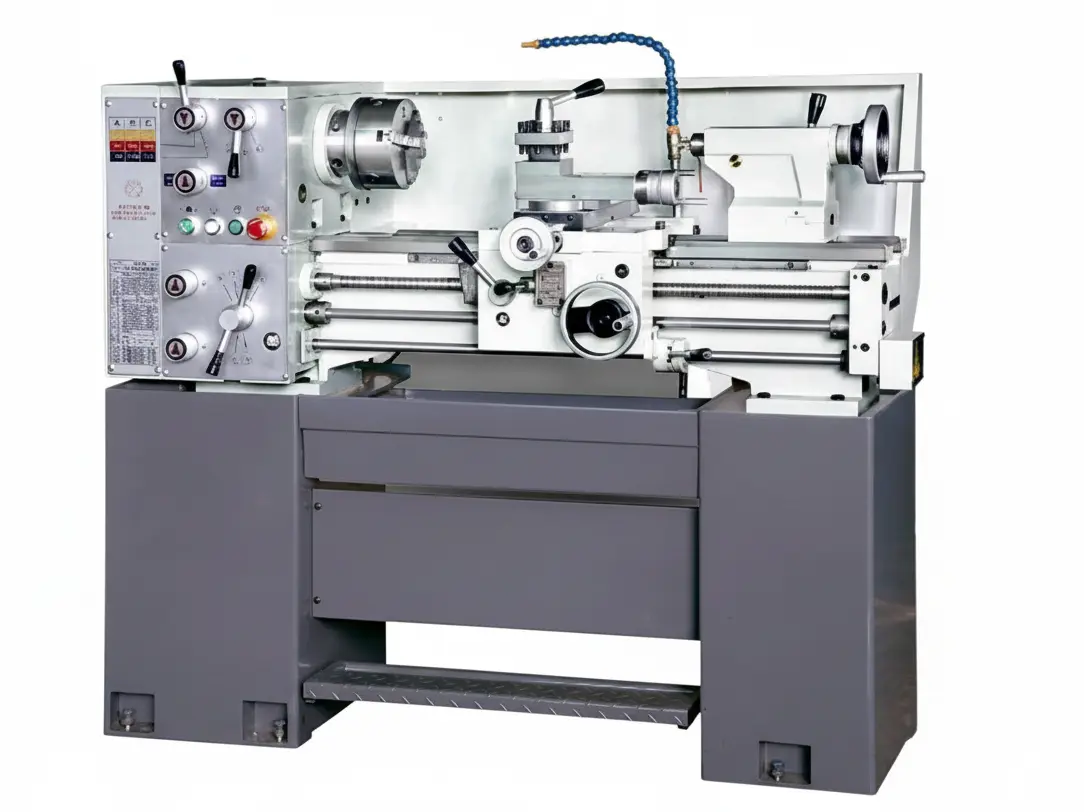

The Linmac LD-1440E High Speed Precision Lathe is a robust and reliable metalworking solution designed for precision turning operations. Built with high tensile cast iron and hardened bedways, this lathe delivers excellent stability, accuracy, and long-term durability for workshops and fabrication environments.
With a 14” swing and 40” between centers, this machine is ideal for general machining, maintenance work, and small-to-medium production tasks.
Key Features
Hardened and ground bedways for long-lasting accuracy
Rigid construction using high tensile cast iron
Precision ground gears in headstock
D1-4 camlock spindle for secure tooling
Available in both metric and imperial configurations
Specs
Technical Specifications
Capacity
Swing over bed: 360 mm (14”)
Swing over cross slide: 225 mm (8-3/4”)
Distance between centers: 1000 mm (40”)
Swing over gap: 520 mm (20-3/4”)
Spindle & Speed
Spindle speeds: 9 speeds
Speed range: 82 – 2000 RPM
Spindle bore: 40 mm (1-1/2”)
Spindle nose: D1-4 Camlock
Travels
Cross slide travel: 165 mm (6-1/2”)
Compound rest travel: 100 mm (4”)
Tailstock quill travel: 100 mm (4”)
Threading & Feeds
Metric threads: 0.4 – 7.0 mm (30 types)
Inch threads: 4 – 56 TPI (32 types)
Longitudinal feeds: 0.068 – 0.936 mm/rev
Standard Equipment
2HP (1PH) or 3HP (3PH) main motor
Rapid foot brake system
4-way tool post
Faceplate (10”)
Steady rest & follow rest
Coolant pump system
Complete electrical control unit
Floor stand included
Tool kit with box
Rear splash guard
Optional Accessories
3-jaw chuck (6”)
4-jaw chuck (8”)
Taper attachment
Quick change toolpost
DRO (X/Z axes)
Work light
Chuck guard & toolpost guard
