NEW LINMAC DP-915AH
Overview

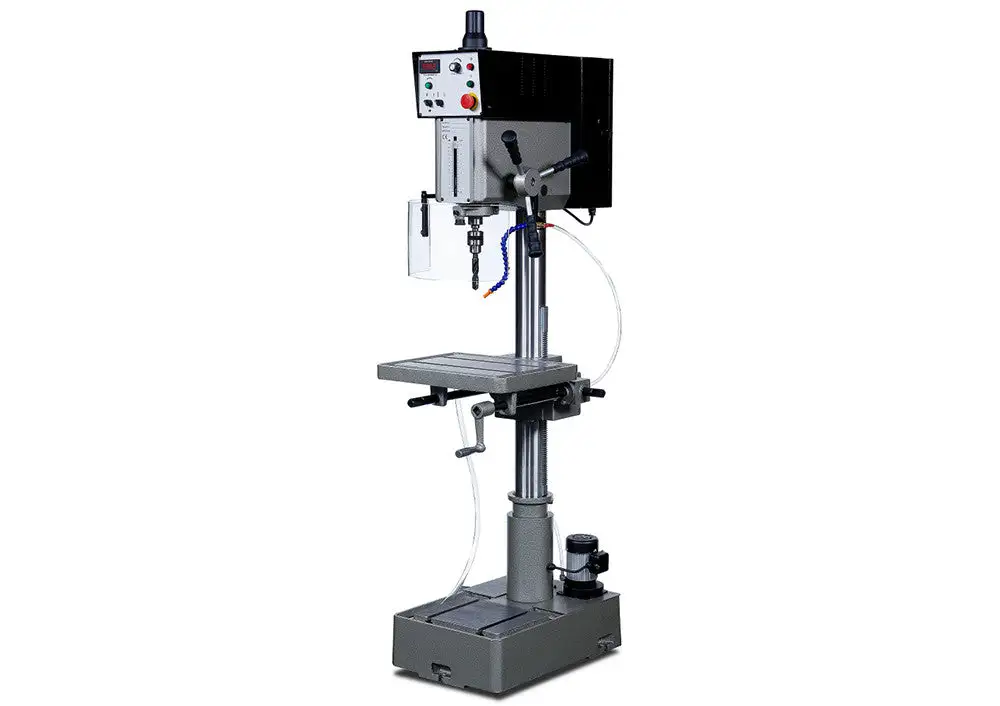

The Linmac DP-915AH is a variable speed drill press with inverter timing belt driven head. It allows users to drill and tap various steels at the proper speed, which extends tooling life and avoids unnecessary energy lost. When drilling at the exact speed, the tooling life can last for longer life than the regular pulley driven drills. Wide casting column provides strong support to the entire machine and reduces flexing as full 25mm (1”) capacity drilling. The rigid base and the work table are made of premium casting iron. The wide T-slot helps securing vises, tooling or workpieces well. DP-915AH drill has other available options for cooling system, guarding and a halogen work lamp.
Standard Features
Timing Belt Driven with Inverter variable Speed
Manual Down Feed
Auto Reverse Tapping
Digital RPM Readout
High Precision T-Slot Work Table
Integrated Coolant System
Specs
Specifications and Capacities
Drilling Capacity #3MT 1”
Swing 16”
Quill Diameter 2-1/2”
Column Diameter 3-5/8”
9/16” Table T-Slot
Cast Iron Base 15” x 23”
Machine Weight 572 lbs.
Tapping Capacity 5/8”
Spindle Travel 5-1/2”
Table Size 18” x 14”
Spindle Nose to Table 26.8”
Spindle Nose to Base 43.28”
Packing size (L x W x H) 820 x 622 x 2000 mm
