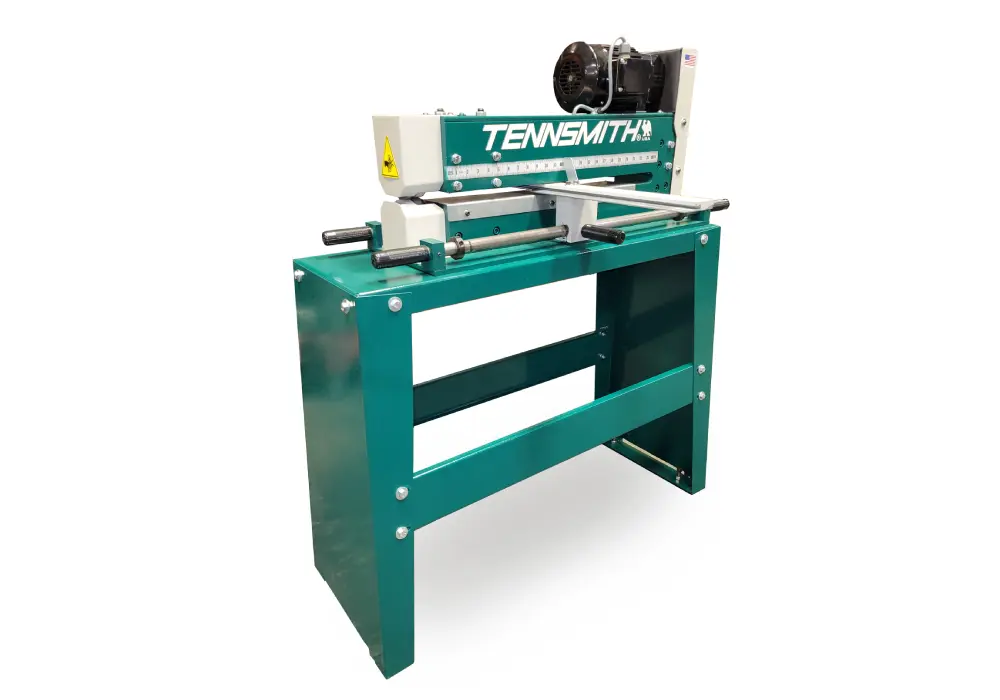

NEW TENNSMITH SLE24-16

The SLE48-16 Single Wheel Slitter can shear strips anywhere from 1” to 24” wide with no limitation in length. The operation is simple, set the pointer to the desired width of the cut, and lock it into place, no tools required. The maximum shearing capacity is 16ga. mild steel but will also cut aluminum, stainless and other materials.
*Please note stand is optional
Standard Features
Die-set type gauge mounting for easy setting and precise squareness
Gauge mounting rods are extended to provide convenient carrying handles
Gauge is easily removed for easy transportation and no “re-squaring” needed
Knives are “reversible”, intervals between sharpening is double that of a single edge knives
Outbound knives for easy access
Stripper rings are designed to hold the material flat, and to prevent marking on the material
Drive shafts mounted with precision sealed ball bearings
Dual bearings mounted at knife height end to minimize deflection and increase knife life
Heavy duty roller chain drive powered by 1/3 HP gear motor
Standard 110V, 6 amps
Optional stand
Stand dimensions— Assembled L x W x H: 43” x 16” x 33” , 95lbs
Machine dimensions—L x W x H: 42” x 37” x 17”, 350lbs
