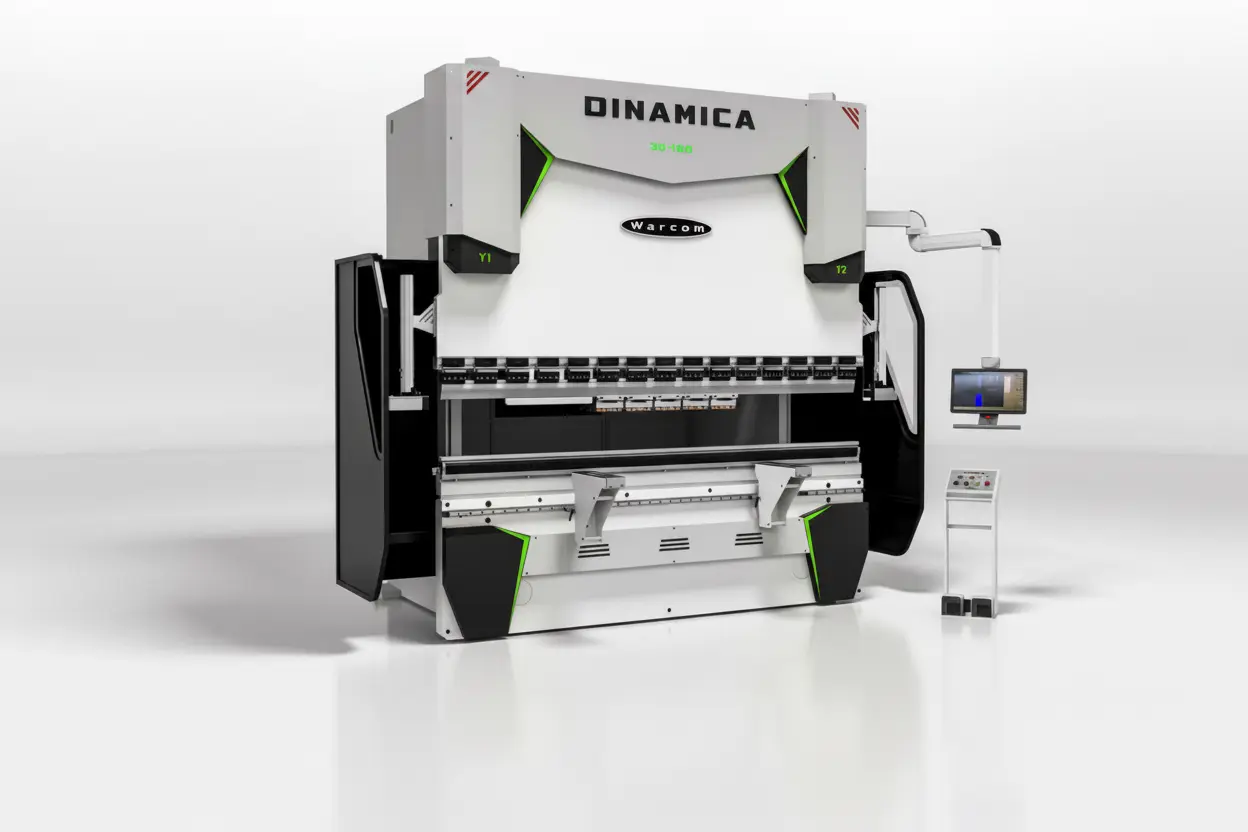

NEW WARCOM DINAMICA 80-25

Specifications
Standard Equipment
4-Axis CNC (Y1-Y2-X-R)
ESA S875 21" Touchscreen CNC Control
Motorized X-R Backgauge
Digital CAN BUS Motors
Two Manual Backgauge Fingers
Manual PROMECAM Upper Tool Clamping
Manual PROMECAM Lower Tool Clamping
Twin Roll Ram Guiding
DCS PLUS Dynamic Hydraulic Crowning
Heat Exchanger
Low Noise Hydraulic Pump
Two Height Adjustable Front Support Arms
Linear Guide Front Supports
Anti-Scratch Material on Supports
Side Parking for Front Supports
Latest Generation Lazer Safe Safety System
Adjustable LED Front Working Light
CSA Compliant
Machine Does NOT Include
Bending tools
First hydraulic oil fill
Control System
ESA S875
21-inch touchscreen
4-axis CNC control
Y1
Y2
X
R
Backgauge
X-R Motorized Backgauge
CAN BUS Digital Motors
600 mm X-axis travel
150 mm R-axis travel
Two manual finger stops
Safety Features
Latest Generation Lazer Safe Safety System
Adjustable LED working light
CSA Certified
Hydraulic Crowning System
Heat Exchanger
Low Noise Hydraulic System
Electrical Requirements
400 Volt
50 Hz
3 Phase
Approximate Shipping Weight
10,000 kg
Optional Upgrades Available
6-Axis (Y1-Y2-X-R-Z1-Z2)
7-Axis with X5 Conical Bending
8-Axis with X5-X6 Conical Bending
Pneumatic Tool Clamping
Wila Hydraulic Clamping
Wila Tool Packages
Lazer Safe IRIS Fast Bend
Angle Measurement Systems
Autopol 3D Offline Programming Software
Wireless Digital Protractor
Programmable LED Tool Station Indicator
Manufacturer: Warcom
Model: Dinamica 80-25
Machine Type: CNC Hydraulic Press Brake
Capacity: 80 Ton
Bending Length: 2700 mm
Distance Between Frames: 2050 mm
Throat Depth: 500 mm
Daylight: 500 mm
Ram Stroke: 300 mm
X-Axis Stroke: 600 mm
R-Axis Stroke: 150 mm
Y Positioning Accuracy: ±0.01 mm
X Positioning Accuracy: ±0.1 mm
Approach Speed: 200 mm/sec
Bending Speed: 10 mm/sec
Return Speed: 180 mm/sec
Main Motor: 9.2 kW
Hydraulic Oil Tank: 130 L
Maximum Oil Temperature: 45°C
Voltage: 400 V
Frequency: 50 Hz
Electrical Supply: 3 Phase (N+M)
Approximate Weight: 10,000 kg
Machine Color: RAL 7035 (Warcom Grey)
