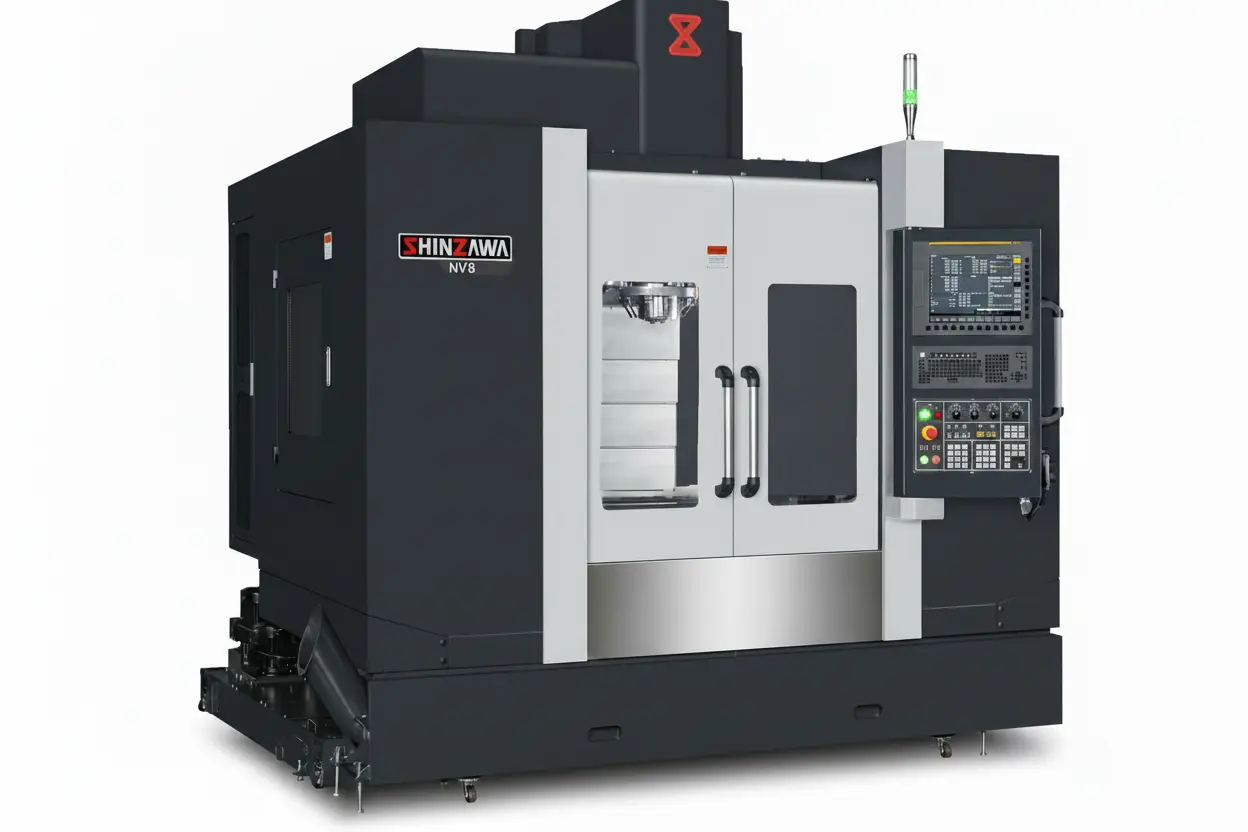

NEW SHINZAWA NV-8
Overview
The NV-8 is a high-performance CNC vertical machining center designed for precision milling, drilling, and tapping applications. Equipped with a 12,000 RPM direct-drive spindle, Mitsubishi M80A controller, BT40 spindle taper, and 24-tool arm-type ATC, the machine delivers excellent machining accuracy, fast rapid traverse rates, and stable cutting performance for mold, automotive, aerospace, and general manufacturing industries.
Specs
NV-8 Main Specifications
Standard Accessories
Rigid tapping
Spindle air blast
Fully enclosed splash guard
Electrical cabinet heat exchanger
Automatic lubrication system
Spindle oil cooler
Coolant system & coolant tank
Coolant flushing device
Work lamps
Foundation bolts & blocks
Tool box with tools
Water gun & air gun
Linear roller guideways
Screw type chip conveyor with chip cart
Model: NV-8
Machine Type: CNC Vertical Machining Center
Controller: Mitsubishi M80A (10.4" LED)
X/Y/Z Travel: 850 × 530 × 600 mm
Table Size: 950 × 530 mm
Max Table Load: 800 kg
Spindle Speed: 12,000 RPM
Spindle Motor: 11 / 15 kW
Spindle Taper: BT40
Tool Magazine: 24 Tools (Arm Type)
Rapid Traverse: 36 / 36 / 30 m/min
Spindle Nose to Table: 100 ~ 700 mm
Machine Weight: 5,200 kg
Machine Dimensions: 2580 × 2200 × 2850 mm
Voltage: 220V / 3PH / 60HZ
