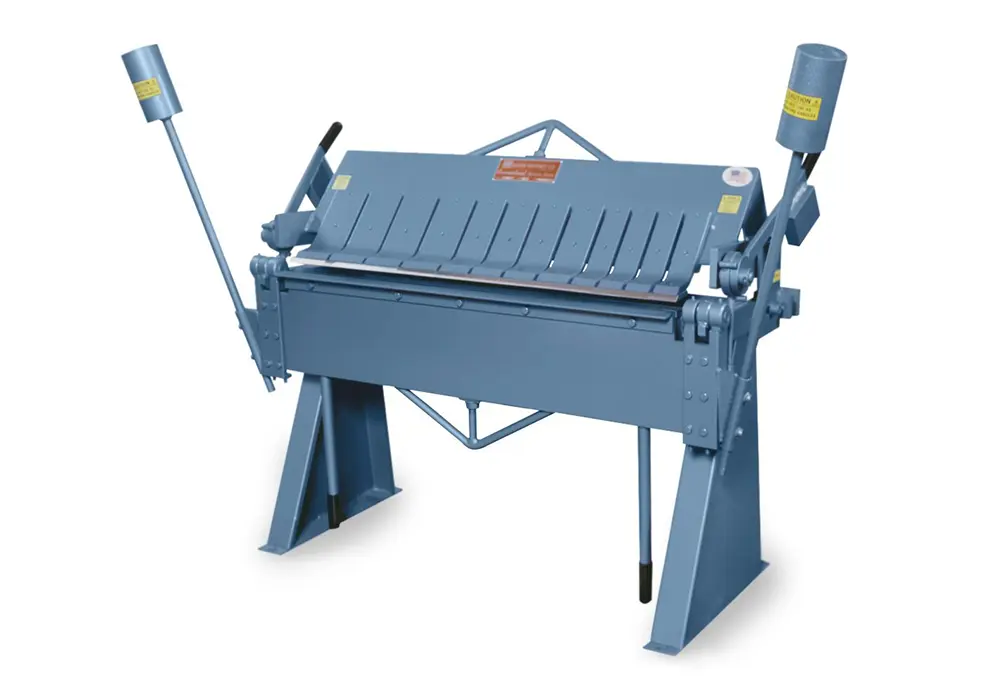

NEW ROPER WHITNEY U-616-6
Overview
The Roper Whitney floor mounted manual bending brakes are precision machines designed for accurate bending with rated capacities. Features of the Connecticut box and pan bending brake are a 6-inch depth of box capacity, 6 feet of 16 gauge bending capacity, positive clamping pressure adjustment, apron stop rod for repeat bends, replaceable bushings and hinge pins, long handles for extra leverage, work support angle bar for full capacity 1-inch minimum flange, improved leg design for lighter weight, all steel construction with no castings, heavy tie rods for minimum deflection, removable bending bar and angle, adjustable apron hinges and positive rear material gauge adjustment.
Standard Feature
Length - 72”
Bending Angle: 0-135°
Beam Adjustment: 1”
Min Reverse Bend: 1/2”
Positive clamping pressure adjustment
Adjustable apron hinges and a positive rear material gauge adjustment
Apron stop rods for repeat bends
Heavy tie rods for minimum deflection
Specs
Specifications and Capacities
Weight: 1800 lbs
Dimensions: 91 × 54 × 35 in
Bending length: 72 in/ 1830 mm
Capacity mild steel, 1-inch flange, with bending bar and angle in place: 16 ga/ 1.60 mm
Capacity mild steel, 1-inch flange, with bending angle removed: 1/4 in/ 6.35 mm
Capacity mild steel, 1-inch flange, with bending bar and angle removed: 24 ga/ 0.61 mm
Minimum reverse bend (bar and angle removed): 1/4 in/ 6.35 mm
Maximum lift of beam: 1 5/8 in/ 41 mm
Finger widths: 3, 4 and 5 in/ 76, 101 and 127 mm
Maximum depth of box: 6 in/ 152 mm
Front to rear adjustment: 1 1/8 in/ 28.5 mm
