NEW BRENNAN DC-13A
Overview

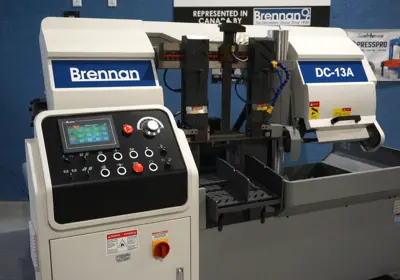

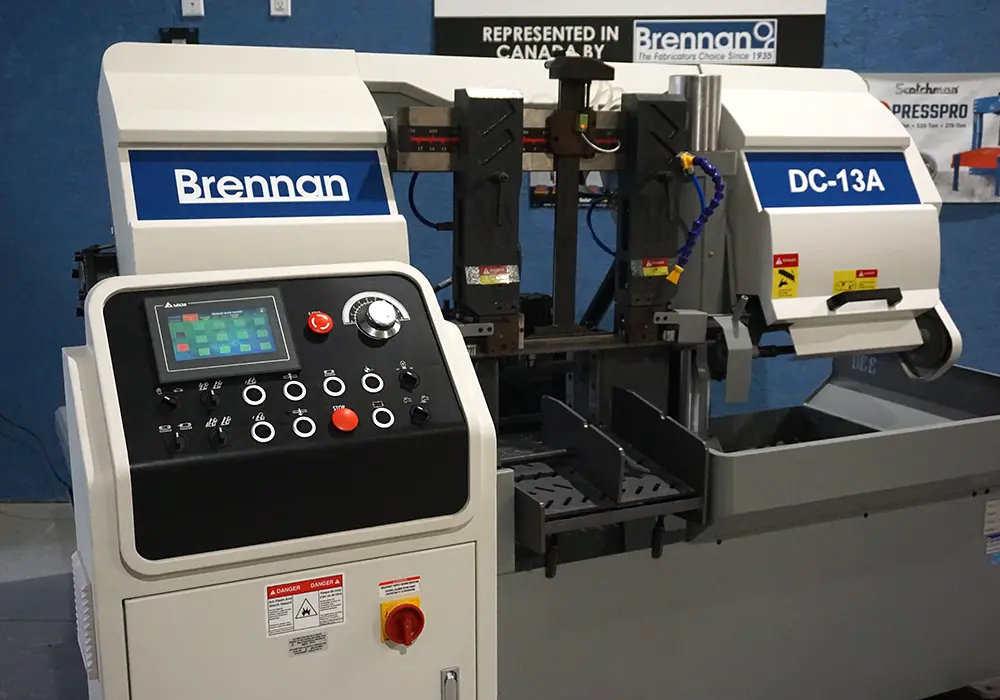

The Brennan DC-13A is an automatic horizontal band saw providing accurate 90 degree metal cutting for medium to heavy duty applications. A shuttle vise provides material indexing up to 19" in a single stroke.
Featuring a 13" x 13" capacity, 5.3HP VFD and inverter variable speed, the DC-13A is an all-round, economical solution for horizontal metal cutting applications.
Standard Features
7” HMI Touch Screen PLC Controller
Inverter-Controlled Infinitely Variable Blade Speed
Hydraulic Blade Tensioning
Automatic hydraulic Shut Off
Chip Conveyor
Hydraulic Top Clamp
Full Stroking Hydraulic Vises
Vise Pressure Regulator
Hydraulic Chip Auger
Blade Breakage Switch
Replaceable Blade Brush
Cast Iron band Wheels
Safety Door Interlocks
Specs
Specifications and Capacities
Capacity Round: 330 mm (13")
Capacity Square: 330 mm (13")
Blade Speed: 10 - 80 MPM (33 - 262 FPM)
Blade Size (LxWxT): 34 x 1.1 x 4115 mm (1.34 x 0.04 x 162”)
Blade Motor: 5.3HP
Hydraulic Motor: 1HP
Automatic Indexing Length (Per Stroke): 500 mm (19.5”)
Workbed Height: 685 mm (26.9")
Floor Space (LxWxH): 2350 x 2220 x 1500 mm (92.5 x 87.4 x 59")
