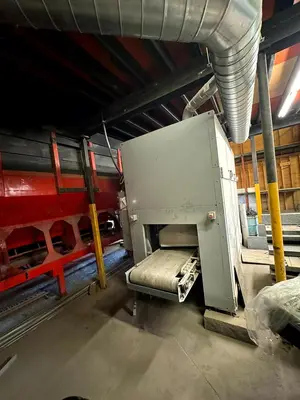

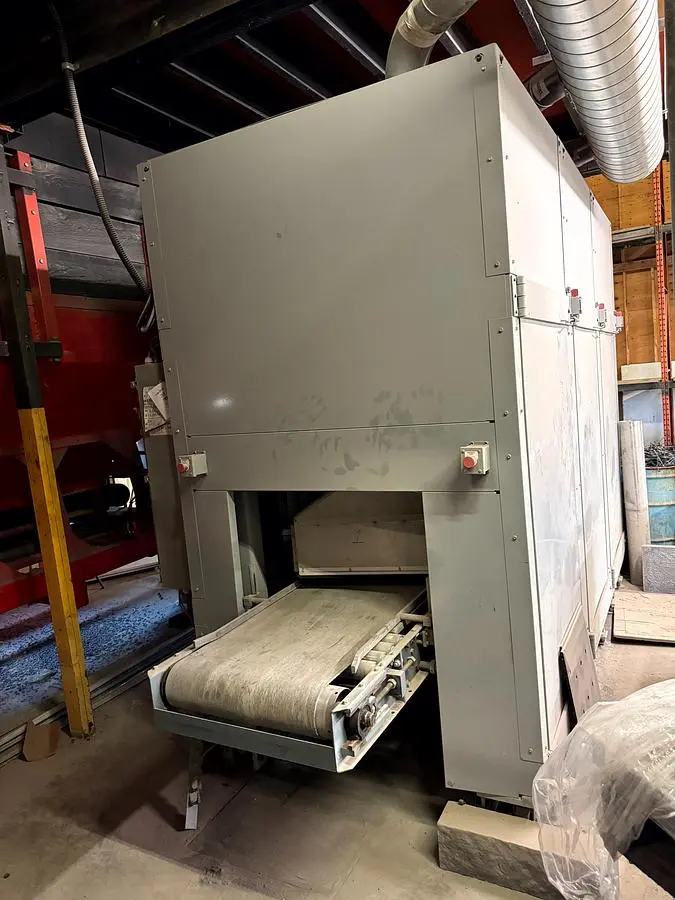

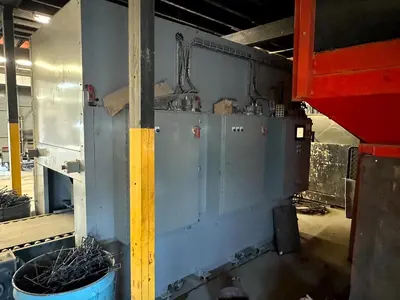

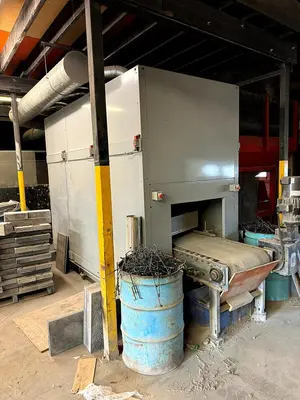

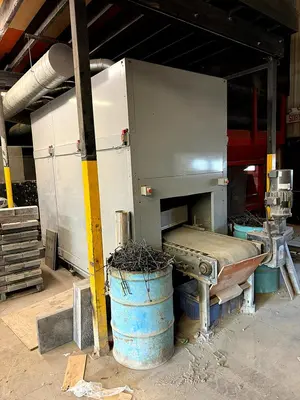

USED 2014 DI-COAT CORPORATION DCC-Z500

Used 2014 Di-Coat Corporation concrete product 3 head grinder

The DCC-Z500 Masonry Block Grinder is a heavy- duty machine designed for high production face grinding of CMU’s using “Di-Coated” Diamond Drums and / or vertical spindle wheels. The modular grinding station setup offers the rapid stock removal of diamond drums and the excellent finish of a vertical spindle diamond disc.  Sequential power-up of motors helps cut power cost and prevents power surge.


Dimensions:

Machine: 5′ wide x 16′ long x 10′ high
Electrical Control Box (Free-Standing): 1′ wide x 6′ long x 5′ high

Weight: 18,000 lbs

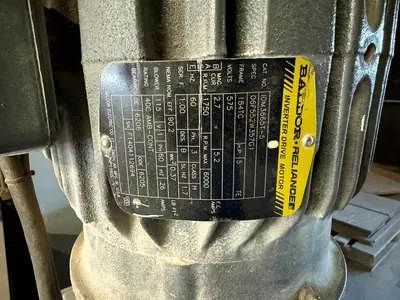

Motor:

Roughing Station (Drum): 30 HP Severe-Duty
Semi-Finishing Station (Drum): 30 HP Severe-Duty
Finishing Station (Drum): 15 HP Severe-Duty

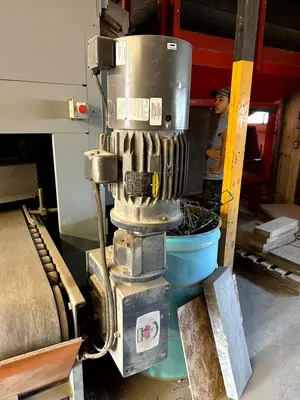

Extra Fine Finishing Station (Disc): 15 HP Severe-Duty
480 Volt – 3 Phase Optional: (240 Volts)

Coolant Requirement:

10-12 gal./min./station
Coolant Delivery/Cleaning Manifolds
Thru-Spindle Coolant Of Vertical Heads

Production Rate:

Three Programmable Speeds Producing 12-18 Blocks/minute.
22 Blocks/minute maximum

Machine Features:

Rigid, heavy-duty welded construction

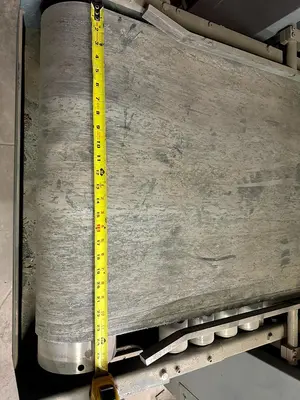

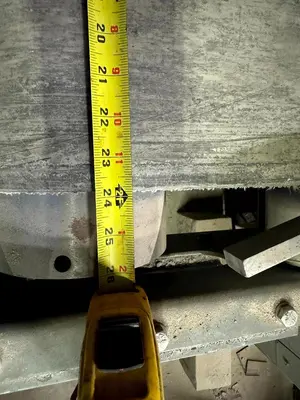

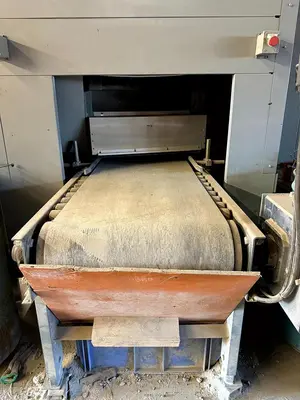

Belt/Platen multiple speed conveyor system (8-10-12 ft./min.)
Modular grinding cell configuration Accommodates up to four stations Head Spindles
Diamond Grinding drums skewed for improved finish & extended life
Special belt drive system to suppress noise levels
Centralized grease fittings
Ergonomic design

Block Height Adjustment:

Microprocessor controlled height adjustment for block size changes
Pre-programmed settings for 4, 6, 8, 10, 12″ CMU’s & 16″ specialty blocks
Height adjustment of all grinding stations can be lowered uniformly for grinding opposite side of block — at push of a button
All heads simultaneously move up & down automatically determined byrestrictor bar position
Push-button manual over-ride to change grind depth to non-standards
Hand-held “Zero-Out” control for calibrating individual drums & vertical wheels
Safety Feature–Automatic block height restrictor bar to prevent crashes

Drum Information:

Quick & easy diamond drum or disc change-over
Drums can be recoated by Di-Coat Corp. using high grade GE Diamond
Reconditioned or new drums supplied ready to mount with pre-installed pillow block bearings

Control Panel:

Free-standing control panel permits ease of operation & floor space optimization
Display prompts operator of required action
Single command to select 1st, or 2nd, side grind height
Digital display of fine adjustment of grinding heads
Each grind station may be individually active or off-line
Analog display of amperage draw for each grind station
Pause mode stops conveyor but leaves grinding heads running
Programmable stock removal setting for each station
On-screen programming
