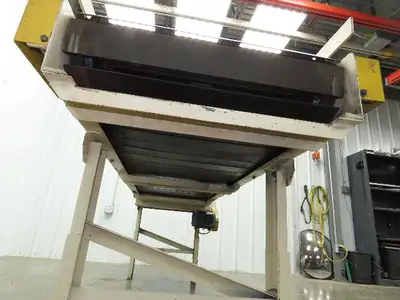

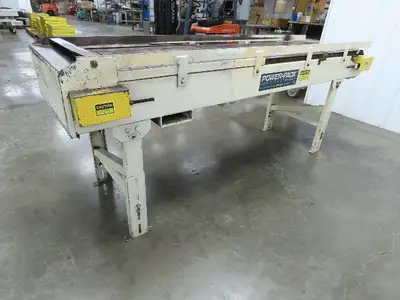

Power-Pack 24"x 8' Steel Slat Belt Conveyor .33Hp 230/460V Chain Drive 16FPM

Condition: Used in working condition, tested.
Set-Up: Heavy Duty Steel Slat Belt RF2060 Chain size. Adjustable height legs.
Drive Type: Chain drive
Motor & Gearbox: Sew-Eurodrive DRS71S4 .33Hp 230/460V 3PH 106:1 Ratio Gearbox 16 RPM Output.
Bed Length: 89" Conveying length exposed belt
Frame Width: 24-3/4"
Frame Height: 7-1/4"
Bed Width: 24-1/2"

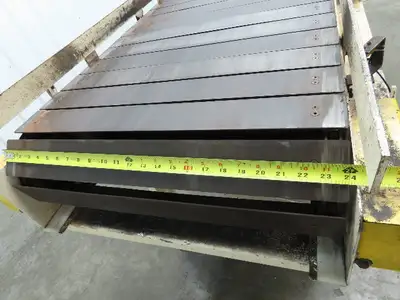

Belt Width: 24" x 2-7/8" Slats
Belt Speed: 16 FPM
Bed Height (From Floor): 31" to 44" Adjustable
Belt Surface (Type) and Condition: Steel Slats Bolt -n
Overall Length: 96-1/2"
Voltage tested and wired for:: 460V
Skirting, Guard Rail Height: 2" Removable Rails
In Good Used Condition. Tested @460V.
1/2Hp 460V 3PH End Drive.  56C-face gearmotor.
10' 2" Overall Frame Length.
10' 3" Overall Bed Length.
34" Frame Width.
29" Belt Width. Steel Mesh Belt.  (Not stainless.)
29"x 5" Dia Drive Roller Pulley.  Tail pulley is 4.5" Dia.
30 FPM Belt Speed.
34" to 42" Adj Conveyor Height.
5.75" Frame Height.
2" height angle iron guard rails screwed to the frame. 33.5" width between rails.
