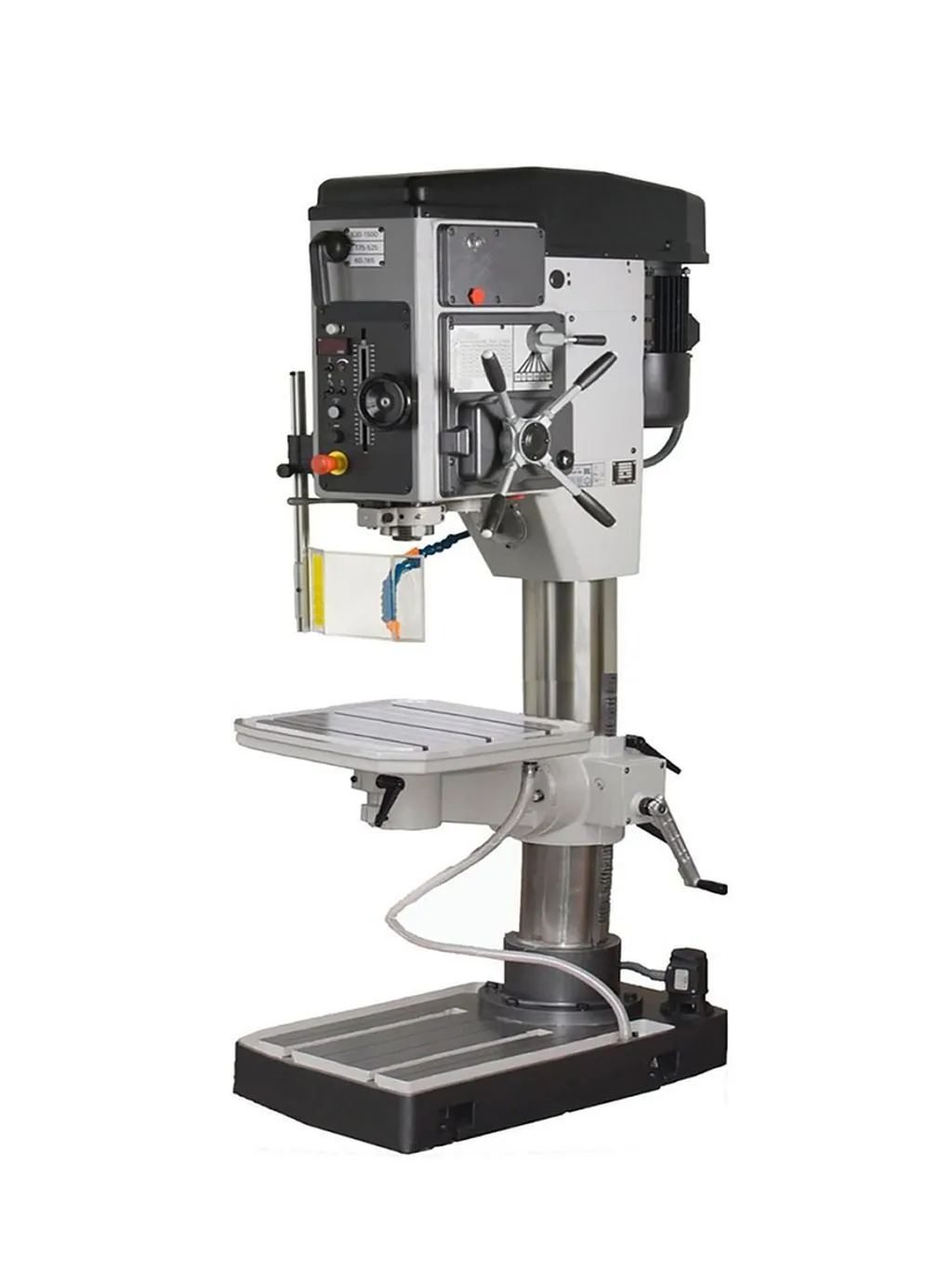

NEW 2025 CLAUSING BC50V

Machine Style.......... Floor Drill W/Adjustable Table
Drive Type.......... Belt Head Drive Mechanical Variable Speed
Number of Speed Steps.......... 3
Spindle Speeds Range 1 (RPM).......... 72 – 240
Spindle Speeds Range 2 (RPM).......... 240 – 720
Spindle Speeds Range 3 (RPM).......... 720 – 1800
Column to Spindle Center (in).......... 14.17
Spindle Nose.......... 4MT
Spindle Travel (in).......... 7.87
Quill Feed.......... Electromagnetic Clutch
4 Feed Ranges (in/rev).......... 0.0039, 0.0079, 0.0118, 0.0157
Spindle to Work Surface Min/Max. (in).......... 1.57 / 26
Column Diameter (in).......... 6.89
Adjustable Table Surface (in).......... 21.65 x 21.65
Work Table T-Slots (in).......... 1/2
Base Size (in).......... 33.9 x 26.3
Drill Capacity with Manual Feed (in).......... 1.97
E-Stop Switch.......... Yes
Voltage.......... 230 or 460
Phase.......... Three
Motor Horsepower.......... 5.5
Machine Weight (lbs.).......... 1,675
Machine Dimensions (WxDxH in).......... 26 x 45 x 81.9
Shipping Weight (lbs.).......... 1,874
Shipping Dimensions ships laying down (LxWxD in).......... 91 x 28 x 52

Machine Features:

• Mechanical variable speed belt drive
• 3 Speed Gear head with shift lever on the face of the drill
• Gear box lubrication by automatic pump
• Hardened and G
