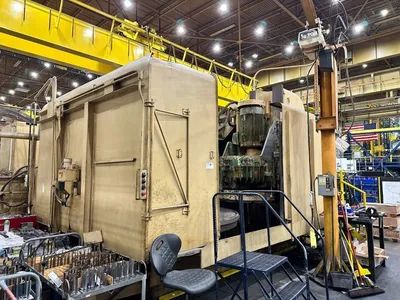

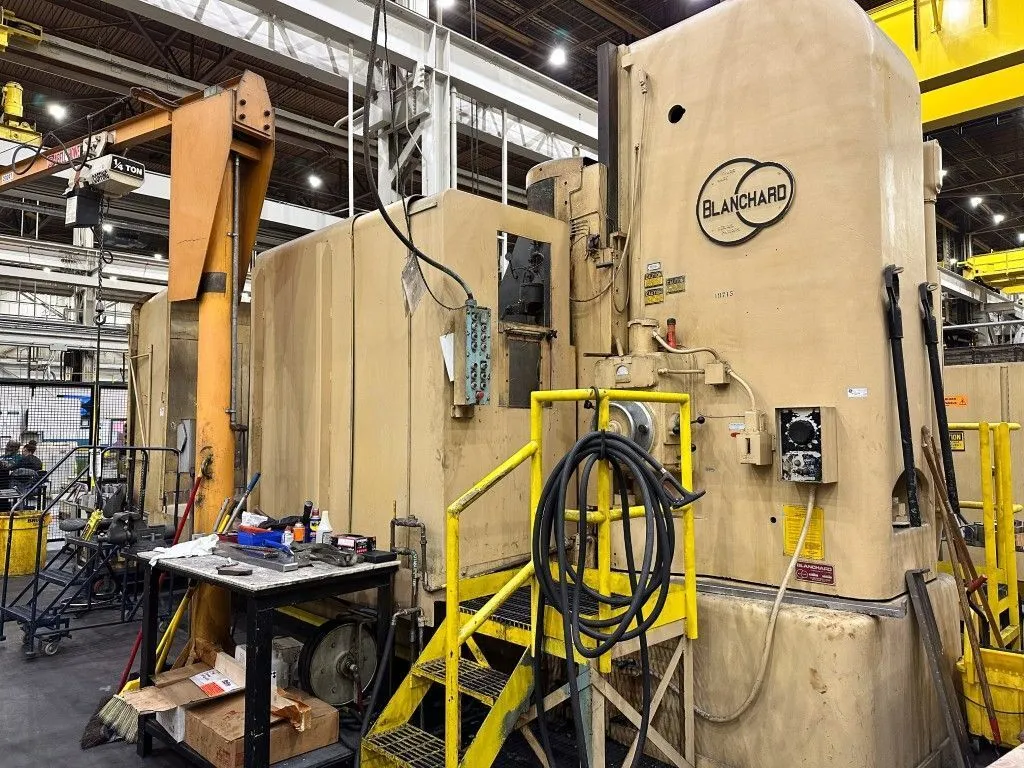

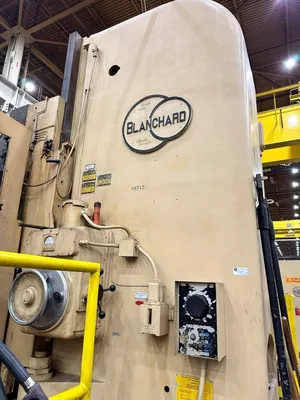

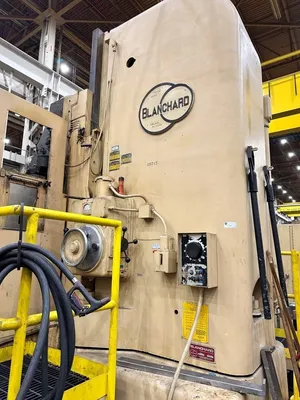

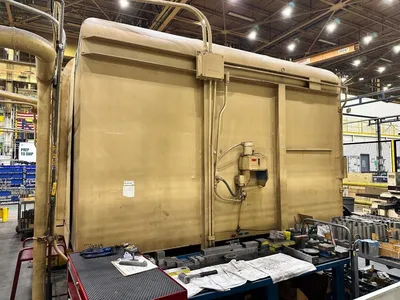

USED 1981 BLANCHARD 100" GEARED HEAD ROTARY SURFACE GRINDER
Overview
Used 1981 BLANCHARD 100" Geared Head Rotary Surface Grinder for sale. Model 54HD-100 with a 100" chuck, vertical range up to 60", and max swing diameter of 123". Operates with a 250 HP motor; weighs 92,000 lbs. Serial #15412. Stock #14539J.
Specs
Blanchard 100" Rotary Grinder, Model 54HD-100, STOCK# 14539J

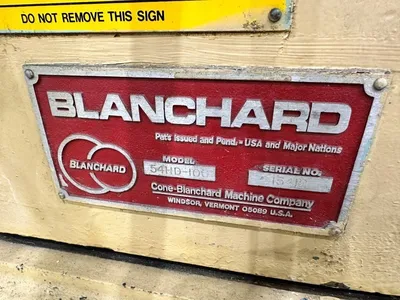

Mdl# 54HD-100
Serial # 15412
Specifications:

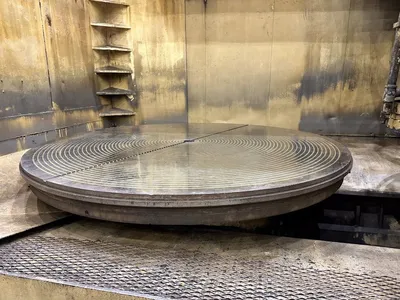

Chuck Size 100"
Vertical Range / Max. Height over Chuck 60"
Max. Swing Diameter 123"
Max. Weight Capacity 30,000 lbs.
Chuck Pole Spacing 1-1/16"
Center Hole 4"

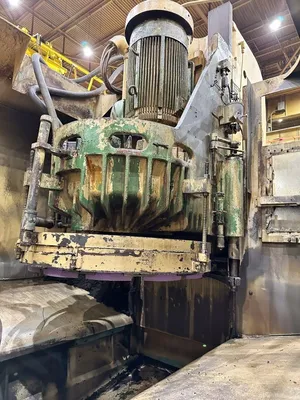

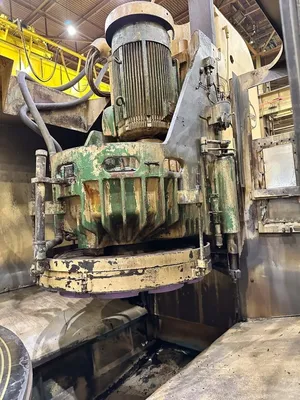

Grinding Wheel Diameter 54"
Chuck Segments 12-CD-54", 11- 1/4"x 2-1/4"x6"
Wheel Speeds 270 RPM
Chuck Speeds 2.6, 4.1, 6.7, 10.2 RPM
Chuck Motor 1200 RPM, 60 Cycle
Table Traverse Motor 1200 RPM, 60 Cycle
Head Traverse Motor 900 RPM, 60 Cycle
Feed Motor 1800 RPM, 60 Cycle
Standard Grinding Horsepower Geared Head 250 HP
Vertical Downfeed .004" - .080"/min
Max. Downfeed before Stop .200"
Extra Downfeed Travel .600"
Weight 92,000 lbs

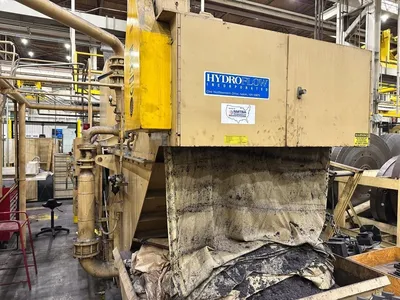

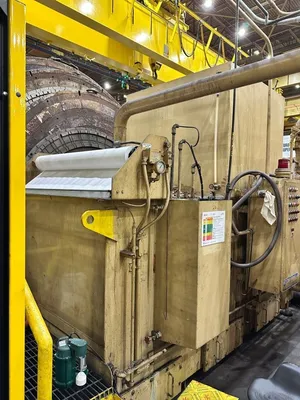

Hydroflow Filteration System
Preliminary Specifications - Subject to Verification
