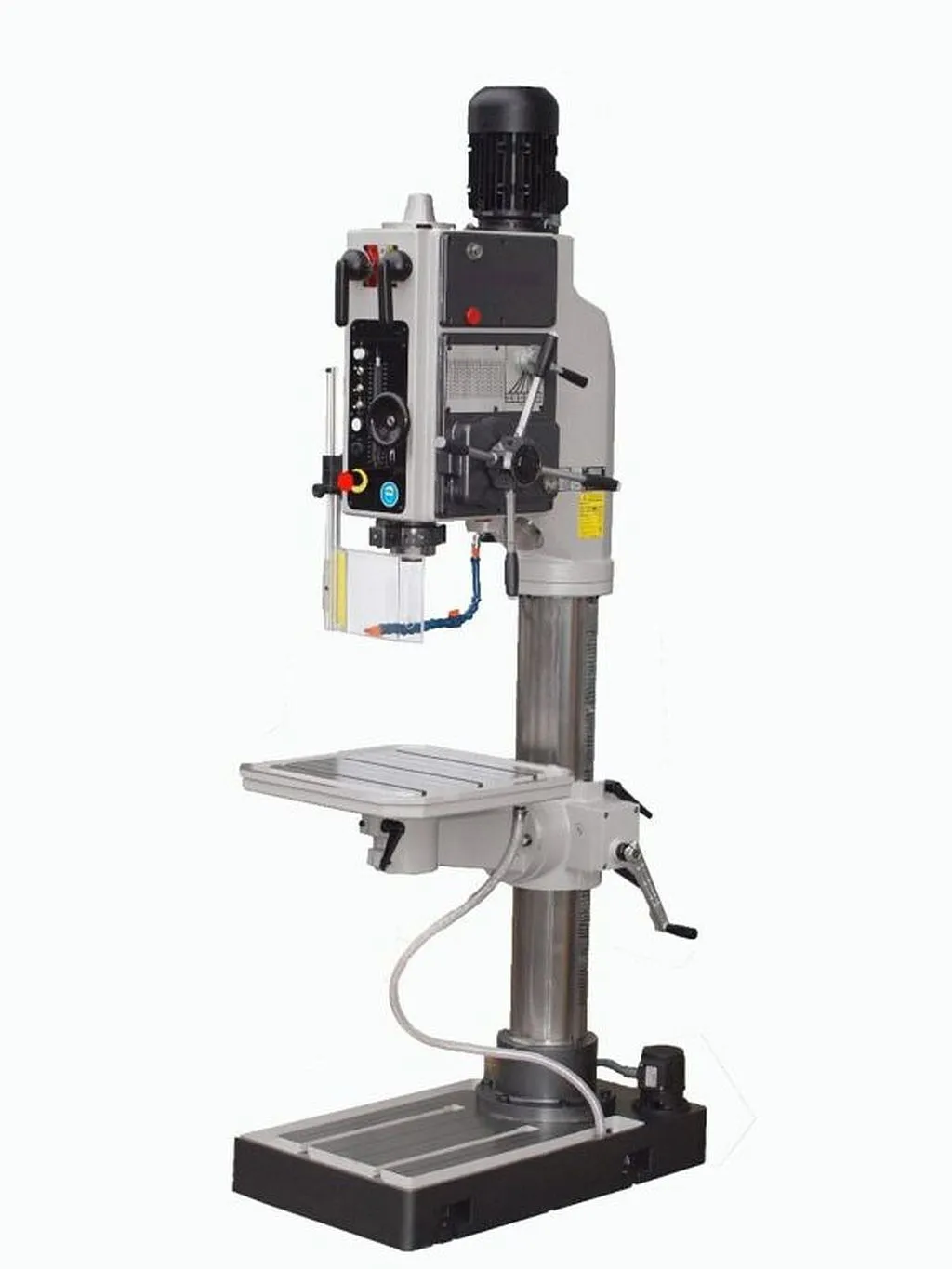

NEW 2025 CLAUSING B40

Machine Style.......... Floor Drill W/Adjustable Table
Drive Type............. Gear Head Drive
Number of Speed Steps.. 9
Spindle Speeds (RPM)... 73 – 103 – 149 – 232 – 325 – 472 – 695 – 976 – 1415
Column to Spindle Center (in) 14.17
Spindle Nose........... 4MT
Spindle Travel (in).... 7.87
Quill Feed Electromagnetic Clutch
4 Feed Ranges (in/rev)..0.0039, 0.0079, 0.0118, 0.0157
Spindle to Work Surface Min/Max. (in) 5.51 / 30.71
Column Diameter (in)....7.09
Adjustable Table Surface (in) 18.9 x 22.1
Worktable T-Slots (in). 1/2
Base Size (in)......... 31.9 x 21.3
Drill Capacity with Manual Feed (in) 1.57
E-Stop Switch.......... Yes
Voltage................ 230 or 460
Phase.................. Three
Motor Horsepower....... 3
Machine Weight (lbs.).. 1,345
Machine Dimensions (WxDxH in) 22 x 38 x 92.4
Shipping Weight (lbs.). 1,532
Shipping Dimensions ships laying down (LxWxD in) 98.5 x 24 x 48

Machine Features:
• Gear head drive with shift levers on the face of the drill
• Gear box lubrication by automatic pump
• Hardened and Ground high quality steel gears
• 4 Hp spindle motor
• Built in low voltage electrical equipment
• Depth scale and adjustable depth stop
• Electromagnetic clutch quill feed system
• Adjustable worktable, rotating and tilting
• Work light
• Manual spindle reversing switch
• “RS” Models are equipped with automatic spindle reversing system for tapping
• Thermomagnetic motor breaker switch
• Machined base with coolant tank
• Safety drill guard with microswitch
• Automatic tool ejector
• Emergency stop button
• CE mark
