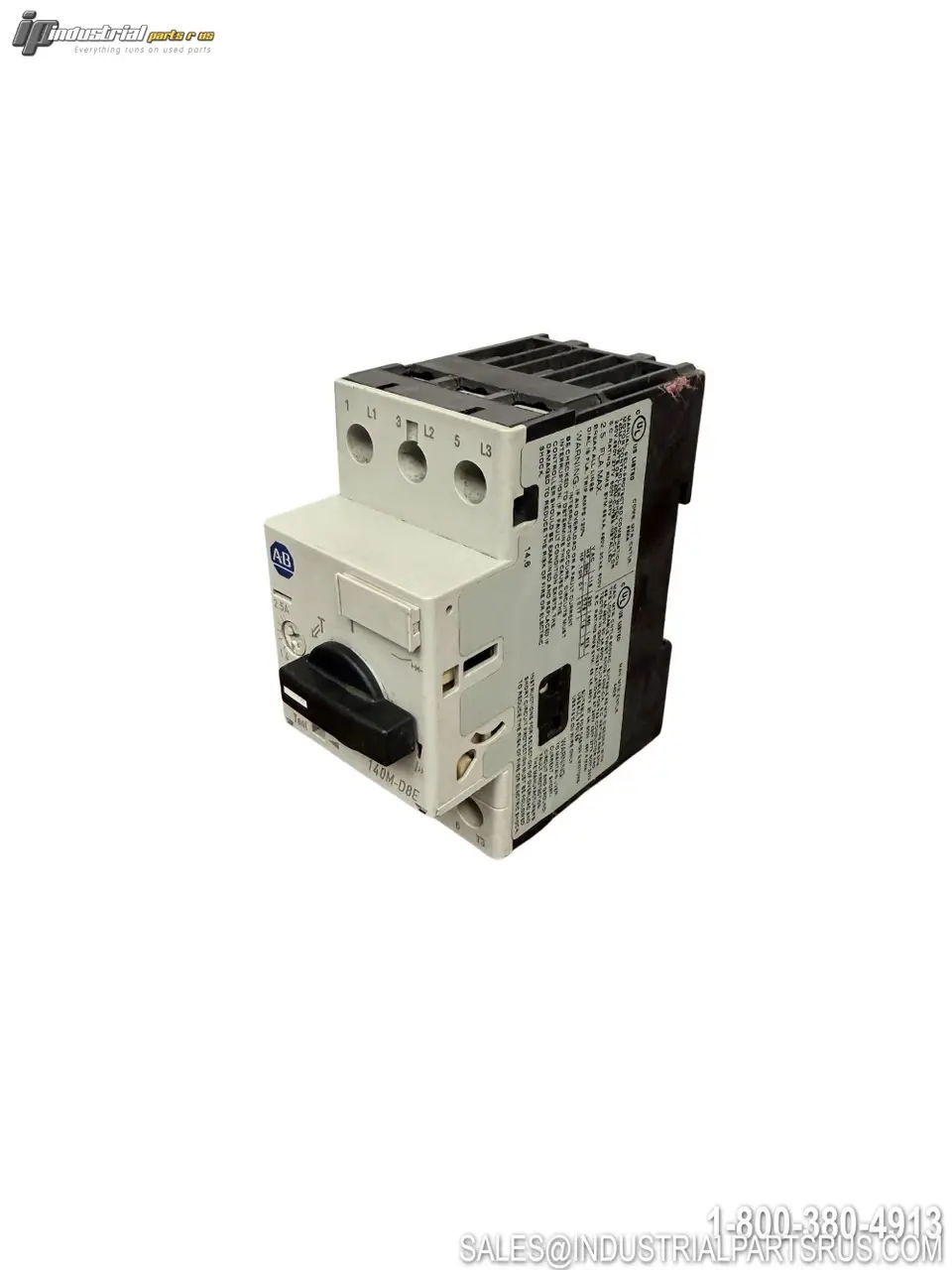

USED ALLEN-BRADLEY 140M-D8E-B25

The Allen-Bradley 140M-D8E-B25 is a Bulletin 140M manual motor controller / motor protection circuit breaker designed for industrial motor control and protection applications. This 3-pole unit features an adjustable current range of 1.6–2.5A, a rotary operating handle, and a 33A instantaneous trip rating. This unit is Series B and is designed for 50/60 Hz applications.
Specification
Value
Brand
Allen-Bradley
Catalog Number
140M-D8E-B25
Series
B
Product Type
Manual Motor Controller / Motor Protection Circuit Breaker
Bulletin
140M
Number of Poles
3
Adjustable Current Range
1.6–2.5 A
Rated Current
2.5 A
Instantaneous Trip
33 A
Frequency
50/60 Hz
Rated Impulse Withstand Voltage (Uimp)
6 kV
IEC Utilization Category
AC-3
IEC Breaking Capacity (Icu / Ics)
100 / 100 kA @ 415V; 100 / 100 kA @ 500V; 10 / 10 kA @ 690V
Maximum Backup Fuse at 690V
20 A gL/gG
UL General Use Rating
2.5 A Max., 600V, 3-Phase
UL Short-Circuit Rating
65 kA @ 480V; 30 kA @ 600V
Motor Rating – 230V 3-Phase
0.75 HP
Motor Rating – 480V 3-Phase
1.5 HP
Motor Rating – 575V 3-Phase
2 HP
Operating Mechanism
Rotary Handle
Standards
EN 60947 / IEC 947
Country of Manufacture
Switzerland
We warranty all items for 30 days from date of purchase.
