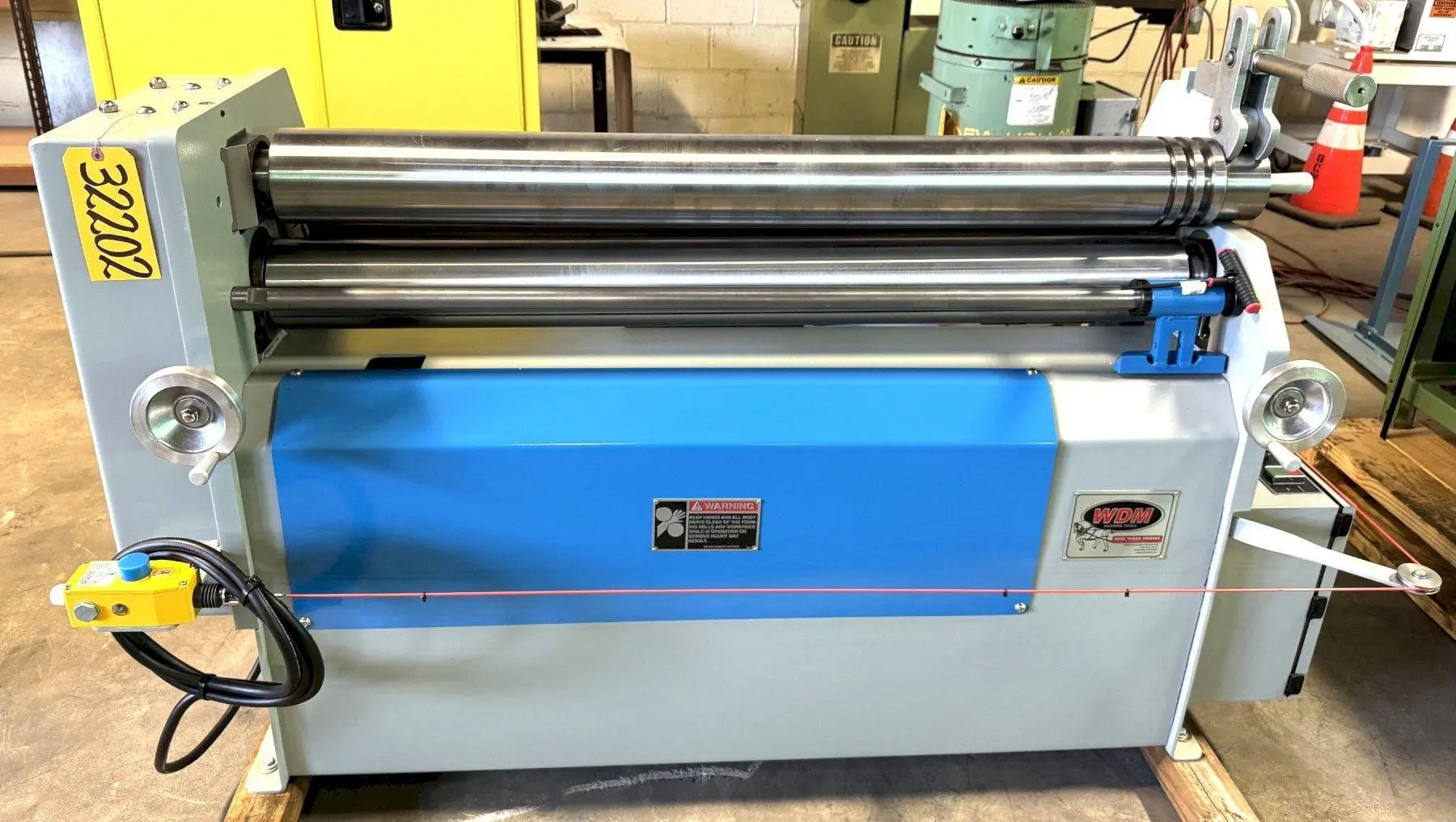

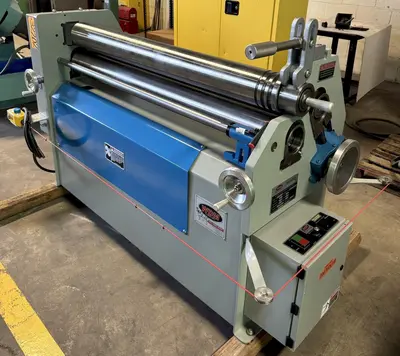

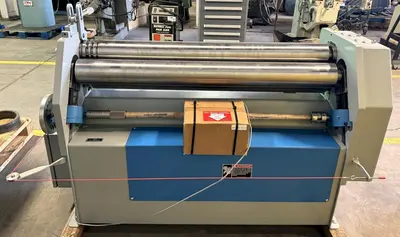

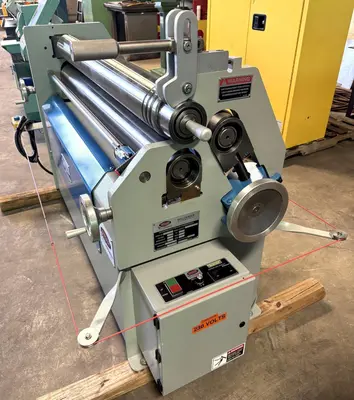

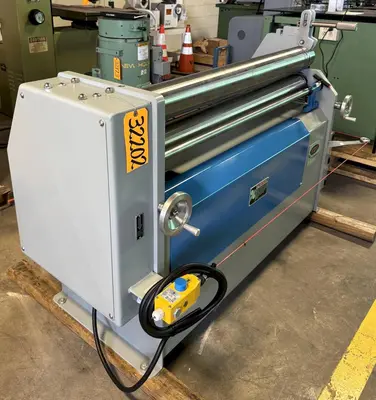

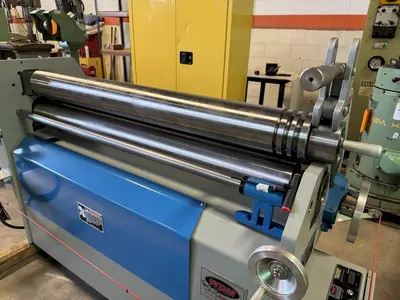

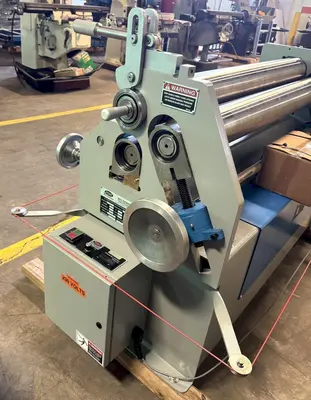

NEW WDM 310-5-48

(NEW) WDM INITIAL PINCH POWER BENDING ROLL

MODEL: 310-5-48
SERIAL NUMBER: 80019-25

GENERAL SPECIFICATIONS

All Electric Drive
Capacity, Length: 48"
Capacity, Thickness: 7/32" (8 Gauge)
Top Roll Diameter: 5"
Roll Speed, Variable: 0 - 20 FPM

EQUIPPED WITH

2 HP Motor
1045 Hardened and Polished Rolls 55-60 Rc
Power Bending Roll Adjustment
Electric Digital Readout-Bending Roll Position
Spur Gear Two Roll Drive
Forward and Reverse Guarded Foot Switch Operation
Manually Operated Drop End w/Swing Out Top Roll
Safety/Emergency Stop Safety Cable On Three Sides Of The Machine
Pinch Roll Starting Groove
Top Roll Latching Handle
Circular Grooves: 3/8", 1/2", 5/8"
Cone Attachment

Approximate Weight: 2200 Lbs.

FACTORY SPECIFICATIONS SUBJECT TO CHANGE AND/OR MODIFICATION
