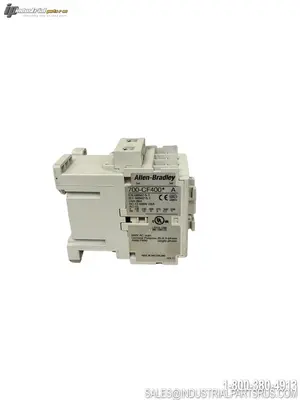

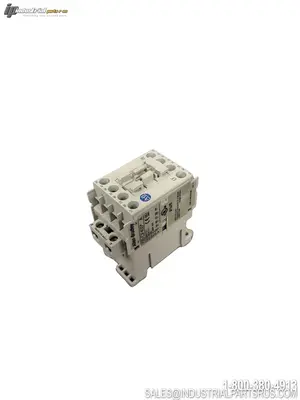

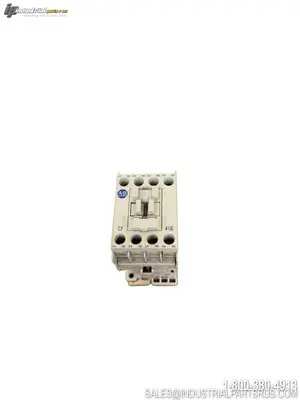

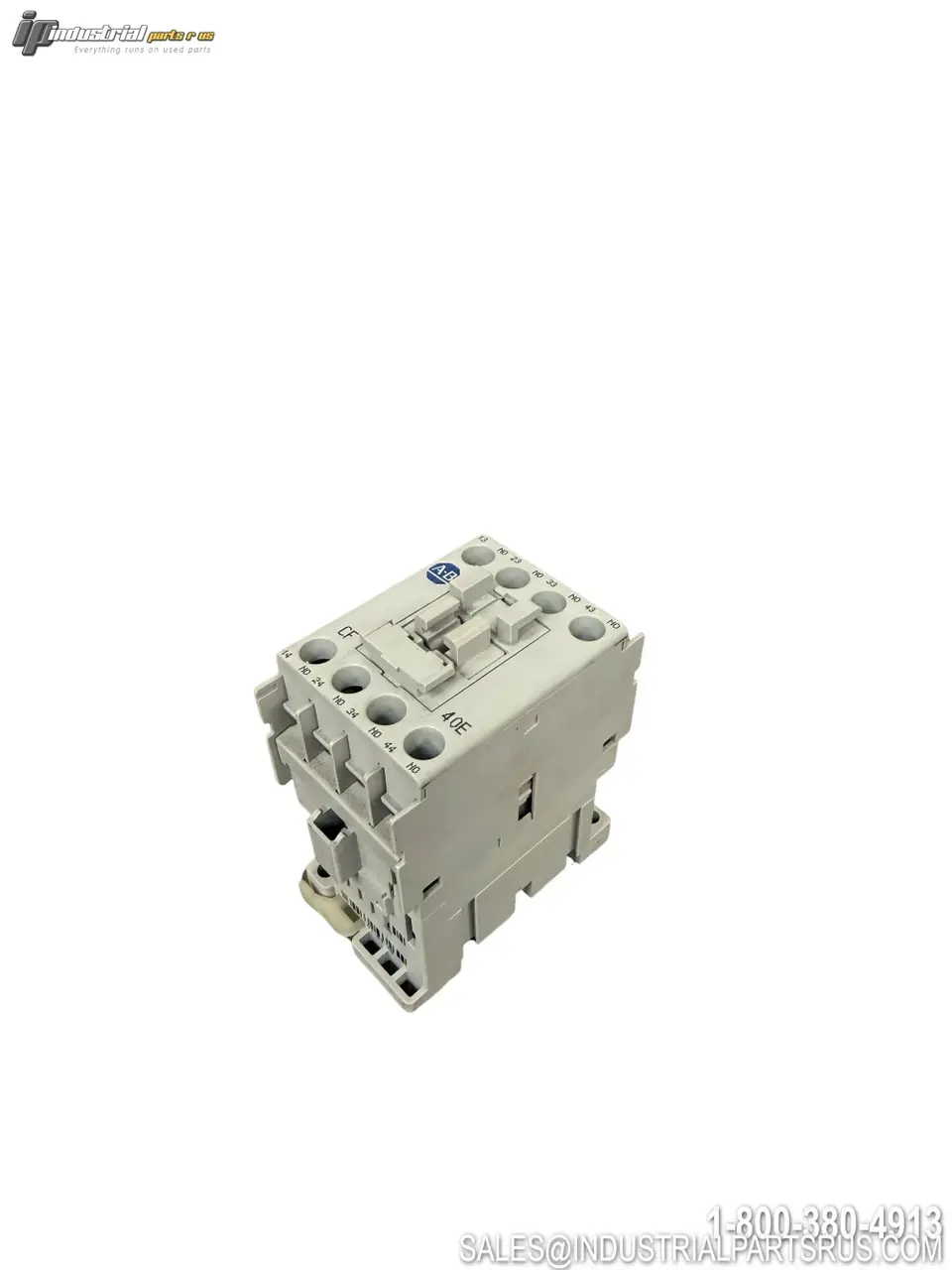

USED ALLEN-BRADLEY 700-CF400*

The Allen-Bradley 700-CF400* is a Bulletin 700-CF industrial control relay designed for switching and auxiliary control applications. This unit features four normally open (N.O.) contacts, identified by terminals 13-14, 23-24, 33-34, and 43-44.
This unit is
Series A
. The complete catalog number includes additional coil information represented by the asterisk (*) in
700-CF400*
. The specific coil/control voltage is not clearly identified in the provided photos and should be verified from the coil markings before installation.
Specification
Value
Brand
Allen-Bradley
Catalog Number
700-CF400*
Series
A
Product Type
Industrial Control Relay
Number of Contacts
4
Contact Configuration
4 N.O. (Normally Open)
Terminal Identification
13-14, 23-24, 33-34, 43-44
Identification Marking
40E
AC-12 Rating
690V / 20A
AC-15 Rating
10A @ 230/240V; 6A @ 400/415V; 2.5A @ 500V; 1A @ 690V
Maximum UL Voltage
600 VAC
General Purpose Rating
25A, 3-Phase
Pilot Duty Rating
A600 / P600
Rated Impulse Withstand Voltage (Uimp)
8 kV
Coil / Control Voltage
Not Identified - Verify Coil Markings
Standards
EN 60947-5-1 / IEC 60947-5-1
Country of Manufacture
Switzerland
Manufacturer
Allen-Bradley / Rockwell Automation
Important:
The asterisk (*) in the catalog number represents additional catalog/coil information. The specific coil/control voltage is not clearly visible in the provided photos and should be verified from the unit's coil markings before installation.
We warranty all items for 30 days from date of purchase.
