USED ALLEN-BRADLEY 140-MN-0063

The Allen-Bradley 140-MN-0063 Series C is a 3-pole manual motor starter/protector designed for motor control and protection applications. This unit features an adjustable current range of 0.40–0.63A with thermal overload and magnetic short-circuit protection. The unit shown also includes an Allen-Bradley 140-A11 Series C auxiliary contact block with 1 normally open (N.O.) and 1 normally closed (N.C.) contact.
Specification
Value
Brand
Allen-Bradley
Catalog Number
140-MN-0063
Series
C
Product Type
Manual Motor Starter / Motor Protector
Number of Poles
3
Adjustable Current Range
0.40–0.63 A
Tripping Current
120% FLA
AC-3 Rating
0.40–0.63 A
Magnetic Trip
7 A
Impulse Withstand Voltage (Uimp)
8 kV
IEC Breaking Capacity (Icu / Ics)
100 kA @ 415V, 500V & 690V
General Use Rating
2.5 A, 600V, 3-Phase
Wire Range
No. 16–10 AWG
Terminal Torque
20–26 lb-in
Conductor
75°C Copper Wire
Standards
IEC 947 / EN 60947
Country of Manufacture
Switzerland
Auxiliary Contact Block
Allen-Bradley 140-A11, Series C
Auxiliary Contacts
1 N.O. / 1 N.C. (13-14 / 21-22)
Auxiliary AC-1 Rating
660V / 10A
Auxiliary Pilot Duty
A600 / Q600
Included:

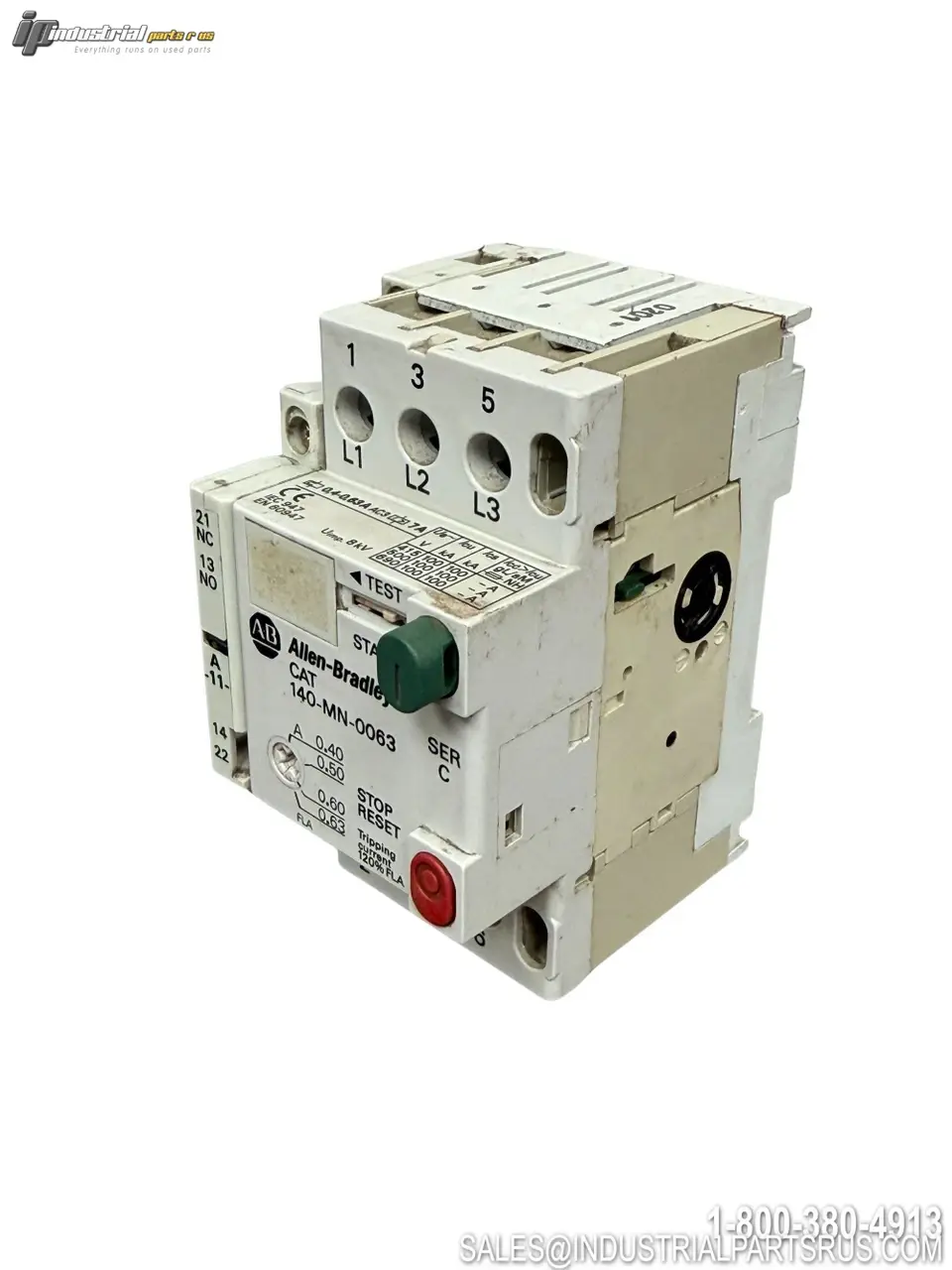

Allen-Bradley 140-MN-0063 Series C motor starter/protector with attached 140-A11 Series C 1NO/1NC auxiliary contact block, as pictured.
We warranty all items for 30 days from date of purchase.
