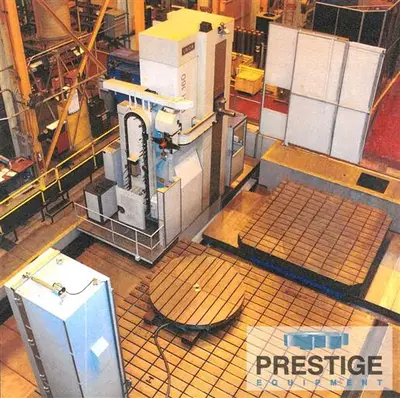

USED 2008 UNION PCR160 PLUS

SPECIFICATIONS:
Spindle Diameter: 6.3"
Spindle Taper: ISO 50
Ram Cross Section: 17.71" x 21.65"
X-Axis Horizontal Column Travel: 433.07"
Y-Axis Vertical Head Travel: 157.48"
Z-Axis Ram Travel: 59.05"
W-Axis Boring Spindle Travel: 27.56"
Combined Ram & Spindle Travel: 86.61"

Spindle Speeds:

Spindle Speed Ranges:
Rapid Traverse X,Y,Z,W Axes:

DEMMLER DRTS 3100 B-AXIS INFEEDING ROTARY TABLE:
Table Size: 157.48" X 157.48"
B-Axis Table Rotation: 360 Degrees
B-Axis Circular Milling: 360,000
V-Axis Table Infeed: 98.42"
V-Axis Feed Rate: 0.039-236.22 IPM
Table Weight Capacity: 100 Ton

RIGHT ANGLE MILLING UNIT KF-D4:
Automatic Indexing: 1-Degree
Power Rating: 40 HP
Swivel Range: 1 x 360 Degrees
Speeds: 2800 RPM
Gear Transmission Ratio: 1:1
Spindle Taper: ISO 50(ANSI B5.50)
2-AXIS NC FORK-TYPE MILLING HEAD:
C-Axis Swiveling Range: -185/+185 Degrees
A-Axis Swiveling Range: -95/+95 Degrees
Spindle Taper: ISO 50(ANSI B5.50)
Maximum Speed: 3000 RPM
Maximum Power: 50 HP

U-TRONIC 5-630S FACING & BORING HEAD:
Head Diameter: 24.80"
Radial Traverse: 7.87"
Feed Rate: 0.039 15.74 IPM
Rapid Traverse: 15.74 IPM
Feed Power: 5000 Nm
Maximum Speed: 250 IPM
Torque: 2868 Nm

Equipped With:
Siemens 840D CNC Controls
60 Station Automatic Tool Changer
Operator Platform Station
5-Station Head Changer Tower
2-Axis CNC Swiveling Milling Head
Facing & Boring Head
Vertical Milling Unit
High Pressure Coolant
T-Slotted Floor Plate Area 236.22" x 275.59"
Full Length Chip Conveyer
80 HP Spindle Motor

NOTES:
Complete Technical Specifications & Drawings Available on Request.
Inspect Under Power.

Features:
Siemens 840D CNC Controls
157.48" X 157.48" B-Axis Infeeding Rotary Table
60-Station Automatic Tool Changer
Head Changer Tower w/5-Stations
2-Axis CNC Swiveling Milling Head
Facing & Boring Head
Vertical Milling Unit
