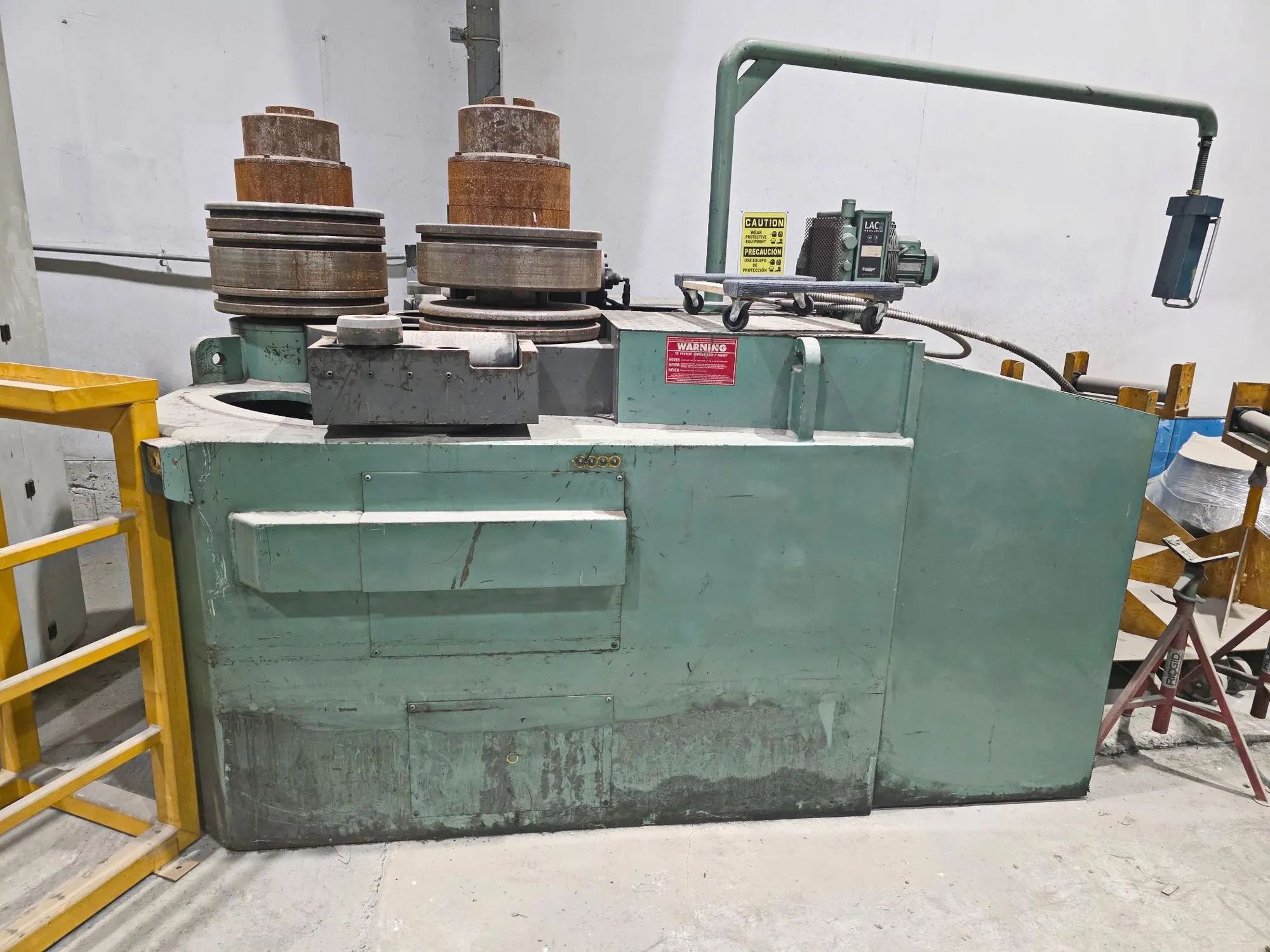

USED 2009 ROUNDO R7S

Ontario, Canada
299Listings|148Followers
Overview
Angle Bending Rolls

2009 Roundo R-7-S Hydraulic Section Bending Machine, Vertical Bending Configuration, Full Hydraulic 3-Roll Drive, Independent Hydraulic Lower-Roll Adjustment, Full Hydraulic Six-Way Guide Rolls, Pendant Control, Dial Indicators For Lower-Roll Position

Specs
Rolls Diameter
21.65"
549.91 mm
Driven Rolls
3
3
Section Modulus
11.29 cu in
11.29 cu in
Angle (L1)
6"
152.4 mm
Angle (L2)
6"
152.4 mm
Angle (T)
1"
25.4 mm
Hyd/Mech
HYD
HYD
Operation (Horz, Vert, Horz/Vert)
VERT
VERT
Power
40 hp
29.8 kW
Made In
Sweden
Sweden
Dimensions
110.2" X 79.5" X 72.6"
110.2" X 79.5" X 72.6"
Weight
27,500 lb (Approx.)
27,500 lb (Approx.)
Equipped With

Vertical bending configuration
Fully hydraulic three-roll drive
Independent hydraulic lower-roll adjustment
Fully hydraulic six-way guide rolls
Pendant control w/ electronic variable-speed control
Standard rolls for flat, angle, T-section & square bar
Dial indicators for lower-roll position
Compensating adjustable central-roll slip clutch
Adjustable roller stands
