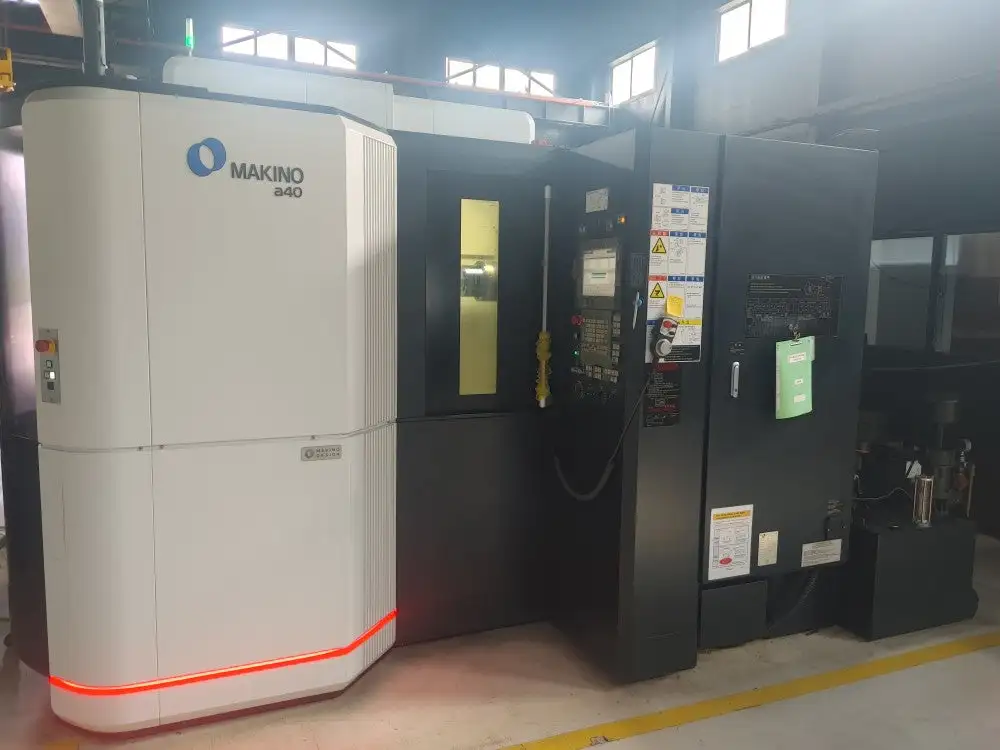

USED 2022 MAKINO A40
Overview
The Makino a40 is a high-performance horizontal machining center designed for high-volume precision manufacturing. Built with Makino's rigid machine construction and high-speed spindle technology, the a40 is ideal for automotive, aerospace, medical, precision engineering, and general production machining.
This machine was production in February 2022. It is reported to have been machining aircraft components and is being released due to production capacity restructuring rather than machine performance.
Condition:
Used – Excellent Condition
Manufacturer:
Makino
Model:
a40
Year:
2022 (February)
Machine Type:
4-Axis Horizontal Machining Center (HMC)
Specs
Specifications
Features
High-speed 20,000 RPM spindle
HSK-A63 spindle interface
Dual pallet automatic pallet changer (APC)
400 × 400 mm pallets
Makino Professional Control
Fully enclosed machining area
High-rigidity machine construction
Automatic lubrication system
Industrial coolant system
Hydraulic unit
Chip management system
Machine Dimensions

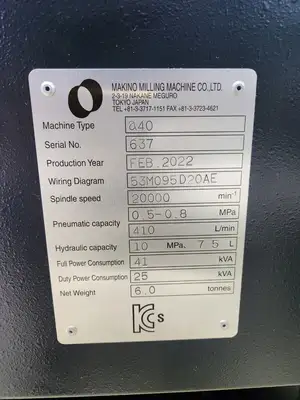

Nameplate Information (Verified)
Machine Type: Makino a40
Serial Number: 637
Production: February 2022
Spindle Speed: 20,000 min⁻¹
Pneumatic: 0.5–0.8 MPa
Air Consumption: 410 L/min
Hydraulic: 10 MPa / 7.5 L
Full Power: 41 kVA
Duty Power: 25 kVA
Net Weight: 6.0 tonnes
Seller Notes
Previously used for aircraft component machining.
Machine is reported to be in production and well maintained.
Available for inspection.
Additional videos and operating demonstrations available upon request.
Manufacturer: Makino
Model: a40
Year: February 2022
Machine Type: Horizontal Machining Center
Axis: 4-Axis
Travels (X/Y/Z): 560 × 640 × 640 mm
Pallet Size: 400 × 400 mm
Number of Pallets: Dual Pallet APC
Maximum Pallet Load: 400 kg
Spindle Speed: 20,000 RPM
Spindle Taper: HSK-A63
Pneumatic Pressure: 0.5 – 0.8 MPa
Pneumatic Capacity: 410 L/min
Hydraulic Pressure: 10 MPa
Hydraulic Tank: 7.5 L
Full Power Consumption: 41 kVA
Duty Power Consumption: 25 kVA
Net Weight: Approx. 6,000 kg
Floor Space: 2,680 × 4,249 mm
Weight: Approx. 6,000 kg
