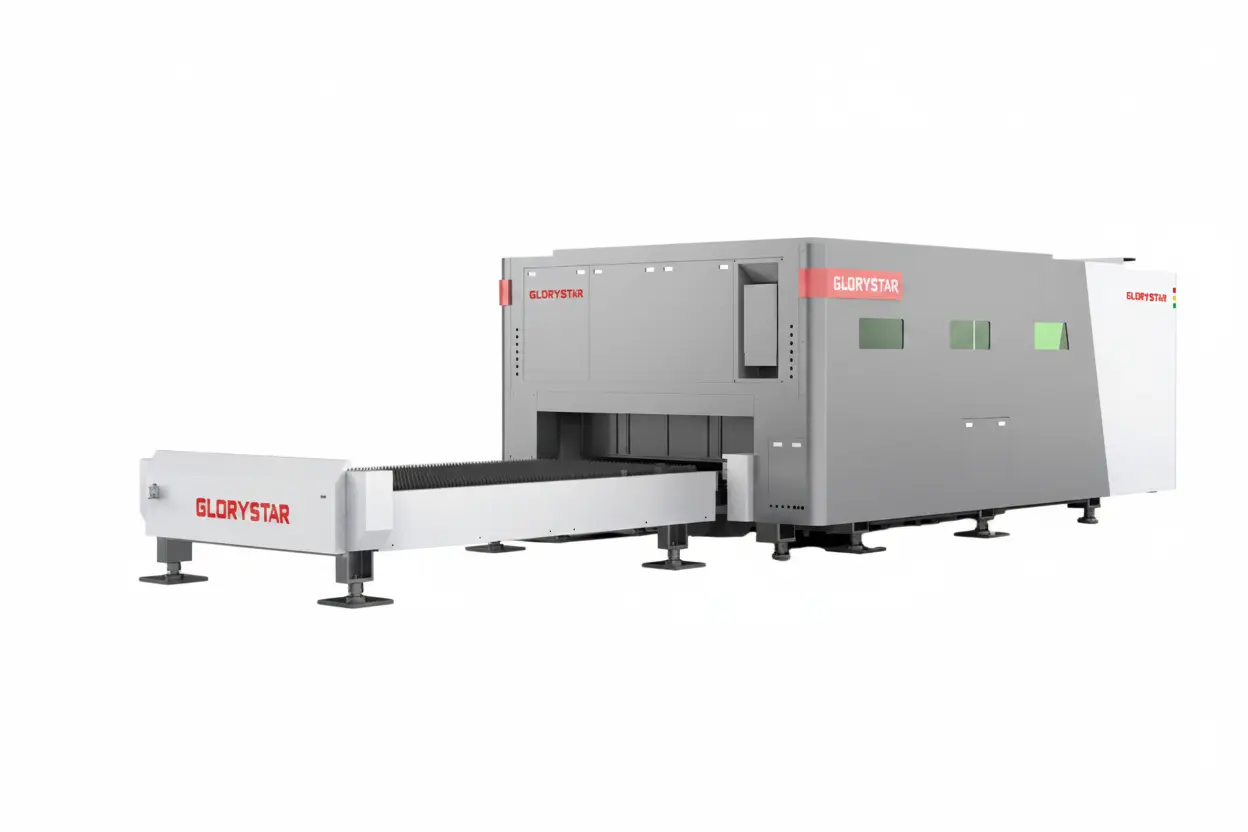

NEW GLORYSTAR GS-3015CE

Standard Specifications
Standard Equipment
6kW Fiber Laser Source
Fully Enclosed Safety Cabin
Automatic Dual Exchange Table
BLT (BOCI) Intelligent Cutting Head
FSCUT (Bochu) Bus Control System
Precision Rack & Pinion Drive
HIWIN Precision Ball Screw
High Precision Linear Guide Rails
Planetary Reducers
Automatic Grease Lubrication System
Industrial Water Chiller
Dust Collection System
Slag Collection Hopper
Automatic Zone Dust Extraction
Included with this package:
Air Compressor
Dust Collector
Voltage Stabilizer
Transformer
CSA Electrical Accessories
Key Features
Fully Enclosed Safety Design
The enclosed structure improves operator safety while containing laser radiation, sparks, and smoke. The machine includes door interlock protection and anti-collision monitoring.
High-Speed Exchange Table
Automatic dual pallet exchange
Approximately 15-second table exchange
Load one sheet while cutting another
Maximizes production uptime
Heavy-Duty Hollow Machine Bed
High-strength welded frame
Mortise and tenon construction
Stress-relieved through annealing
Excellent resistance to deformation
Stable accuracy during heavy production
Aerospace Aluminum Gantry
Large 250 × 250 mm cross section
Lightweight
High rigidity
Improved acceleration
Excellent long-term precision
Intelligent FSCUT CNC Control
Powered by the Bochu FSCUT EtherCAT bus control system featuring:
Automatic nesting
Edge detection
Intelligent piercing
Automatic return cutting
Visual anti-collision
Production statistics
Tool path optimization
Residual material management
Premium Fiber Laser Source
Available with high-quality fiber laser source delivering:
Stable beam quality
High electro-optical efficiency
Modular maintenance design
Compact footprint
Reliable industrial performance
Intelligent BLT Cutting Head
Features include:
Auto Focus
Intelligent Piercing
Lens Temperature Monitoring
Air Pressure Monitoring
Anti-Collision Protection
Closed Loop Focus Control
Automatic Centering
Automatic Lubrication System
16 automatic lubrication points
Maintenance-free operation
Lower maintenance costs
Extends guide rail and bearing life
Intelligent Electrical Cabinet
Automatic temperature control
Humidity control
Cooling system
Optional heating function
Dust protection for electrical components
Environmental Dust Extraction
High-efficiency segmented dust extraction system removes smoke directly from the cutting zone for cleaner operation.
Construction Highlights
Rack & Pinion Dual Drive
Precision Linear Guides
High Precision Planetary Reducers
Precision Ball Screw
Fully Automatic Lubrication
Industrial Water Chiller
Heavy Duty Machine Frame
Materials Suitable for Cutting
Mild Steel
Stainless Steel
Aluminum
Brass
Copper
Galvanized Steel
Other Metal Sheets
Industries
General Fabrication
Sheet Metal Manufacturing
HVAC
Electrical Enclosures
Agricultural Equipment
Automotive
Construction
Metal Furniture
Machinery Manufacturing
Custom Fabrication
Why Choose the GS-3015CE?
5' × 10' cutting capacity
High-speed automatic pallet changer
Fully enclosed safety design
Premium industrial components
Intelligent CNC software
High positioning accuracy
Heavy-duty machine construction
Low maintenance requirements
Excellent productivity for medium and high-volume production
Working Area: 3048 × 1524 mm (5' × 10')
Machine Type: Fully Enclosed Fiber Laser
Exchange Table: Dual Automatic Exchange Tables
Laser Power: 6 kW
X/Y Position Accuracy: ≤0.03 mm/m
Repeat Position Accuracy: ±0.02 mm
Maximum Positioning Speed: 170 m/min
Maximum Acceleration: 3.0G
Cutting Acceleration: 2.0G
Z Axis Travel: 270 mm
LCD Screen: 27" Industrial Touch Screen
Transmission: Rack & Pinion Dual Drive
Table Capacity: 2.9 Ton
Electrical Requirement: 380V / 3 Phase / 50/60Hz
Protection Rating: IP51
