NEW ROPER WHITNEY 816
Overview

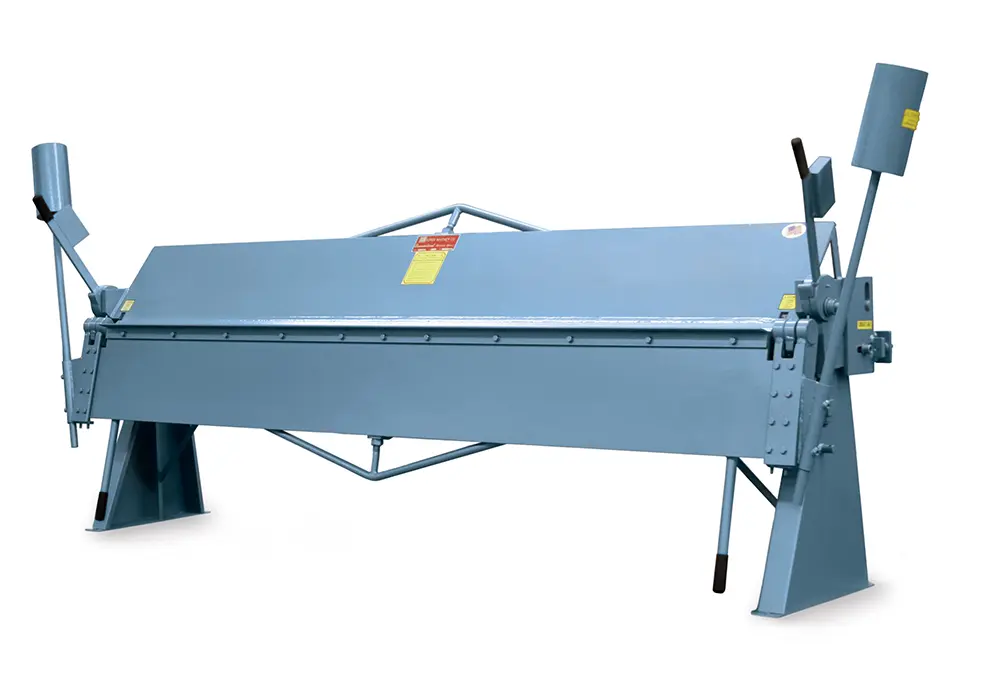

The Roper Whitney Connecticut floor mounted manual bending brakes are precision machines designed for accurate bending with rated capacities. All Connecticut bending brakes have positive clamping pressure adjustment, apron stop rods for repeat bends, long handles for extra leverage, work support angle bar for full capacity 1-inch minimum flange, Improved leg design for lighter weight, all steel construction – no castings, heavy tie rods for minimum deflection, removable bending bar and angle, adjustable apron hinges and a positive rear material gauge adjustment. This machine has a bending capacity of 16 gauge up to 8 feet long.
Standard Features
Length - 96”
Bending Angle: 0-135°
Beam Adjustment: 1”
Min Reverse Bend: 5/8”
Positive clamping pressure adjustment
Adjustable apron hinges and a positive rear material gauge adjustment
Apron stop rods for repeat bends
Heavy tie rods for minimum deflection
Specs
Specifications and Capacitates
Weight: 1640 lbs
Bending length: 97 in/2464 mm
Capacity mild steel, 1-inch flange, with bending bar and angle in place: 16 ga/1.60 mm
Capacity mild steel, 1-inch flange, with bending angle removed: 20 ga/1.00 mm
Capacity mild steel, 1-inch flange, with bending bar and angle removed: 24 ga/0.61 mm
Minimum reverse bend (bar and angle removed): 1/4 in/0.60 mm
Maximum lift of beam: 1 5/8 in/41 mm
Front to rear adjustment: 1 1/8 in/28.5 mm
