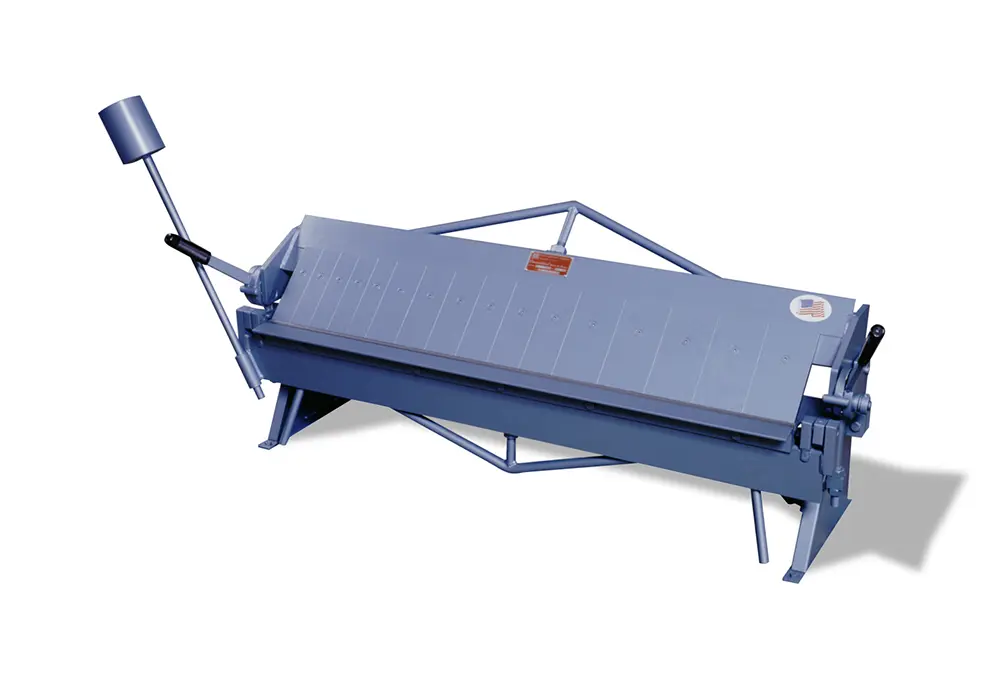

NEW ROPER WHITNEY U-422
Overview
The Roper Whitney floor mounted manual bending brakes are precision machines designed for accurate bending with rated capacities.
The model U422 is a heavy duty bench brake suitable for box and pan or straight bending up to 22-gauge mild steel. The brake features a removable apron angle and apron insert permitting 1/4-inch reverse bends in lighter materials. The front to rear adjustment of the U422 allows for a wide range of radius bending.
Standard Feature
Length - 48”
Apron stop rods for repeat bends
Heavy tie rods for minimum deflection
3 year warranty
Specs
Specifications and Capacities
WEIGHT: 280 lbs
DIMENSIONS: 61 × 20 × 28 in
BENDING LENGTH: 48 in/ 1220 mm
CAPACITY MILD STEEL, 1-INCH FLANGE, WITH BENDING BAR AND ANGLE IN PLACE: 22 ga/ 0.76 mm
MINIMUM REVERSE BEND (BAR AND ANGLE REMOVED): 5/16 in/ 7.95 mm
MAXIMUM LIFE OF BEAM: 7/8 in/ 22 mm
FINGER WIDTHS: 2, 3 and 4 in/ 51, 76 and 101 mm
MAXIMUM DEPTH OF BOX: 3 in/ 76mm
FRONT TO REAR ADJUSTMENT: 1/4 in/ 6.35 mm
BENCH STAND (OPTIONAL): 56" long, 18" wide, 26" high
