NEW LINMAC DP-925GAD
Overview

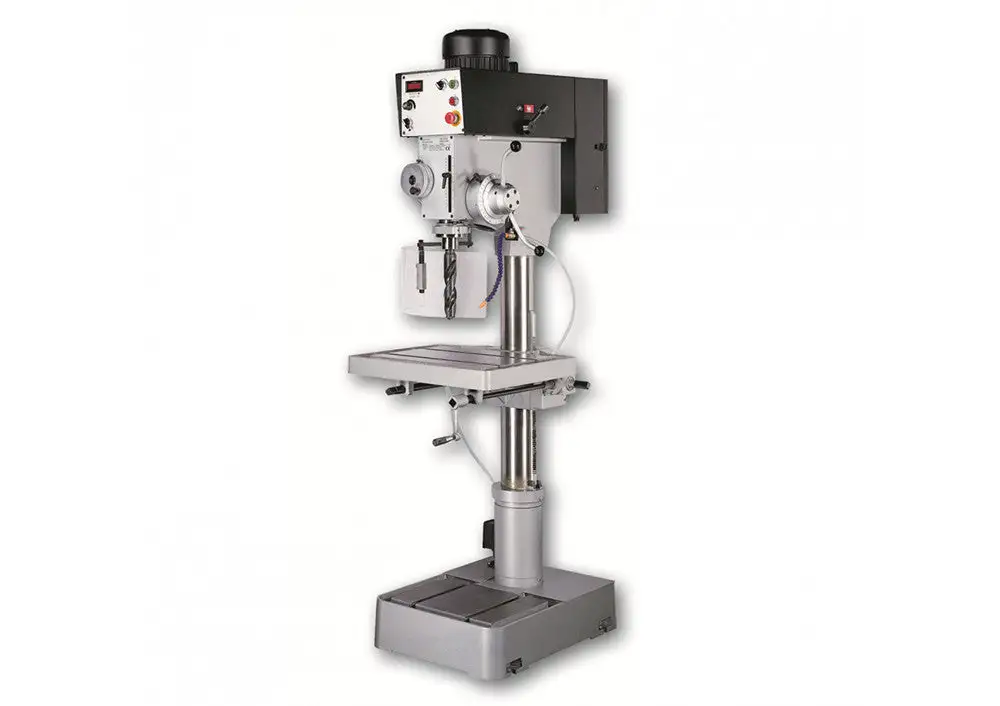

The Linmac DP-925GAD is a gear driven heavy duty variable speed drill press. This premium drill press equips standard with MT#4 spindle taper, power feed and an auto reversing tap. Standard drilling capacity is up to 2” for cast iron. The user friendly control interface comes with a speed potentiometer and digital read out for displaying actual quill RPM. The inverter variable speed allows users to drill and tap various steels at the proper speed. The variable speed adjustments can be done freely within the range by a speed potentiometer knob.
Standard Features
Gear Driven with Inverter Variable Speed
3-Speed Power Down Feed
Auto Reverse Tapping
Digital RPM Readout
High Precision T-Slot Work Table
Integrated Coolant System
Specs
Specifications and Capacities
Drilling Capacity #4MT 2” through mild steel.
Swing 20.9”
Quill Diameter 3”
Column Diameter 4.5”
5/8” Table T-Slot
Cast Iron Base 19” x 27”
Machine Weight 840 lbs.
Tapping Capacity 1”
Spindle Travel 6”
Table Size 22” x 18-1/2”
Spindle Nose to Table 23.8”
Spindle Nose to Base 45.28”
Spindle Speed Hi Range - 245 - 2000 RPM
Low Range – 65 – 540 RPM
2 HP 230V/60/3 (Operational w/ 220V Single Phase)
