Used

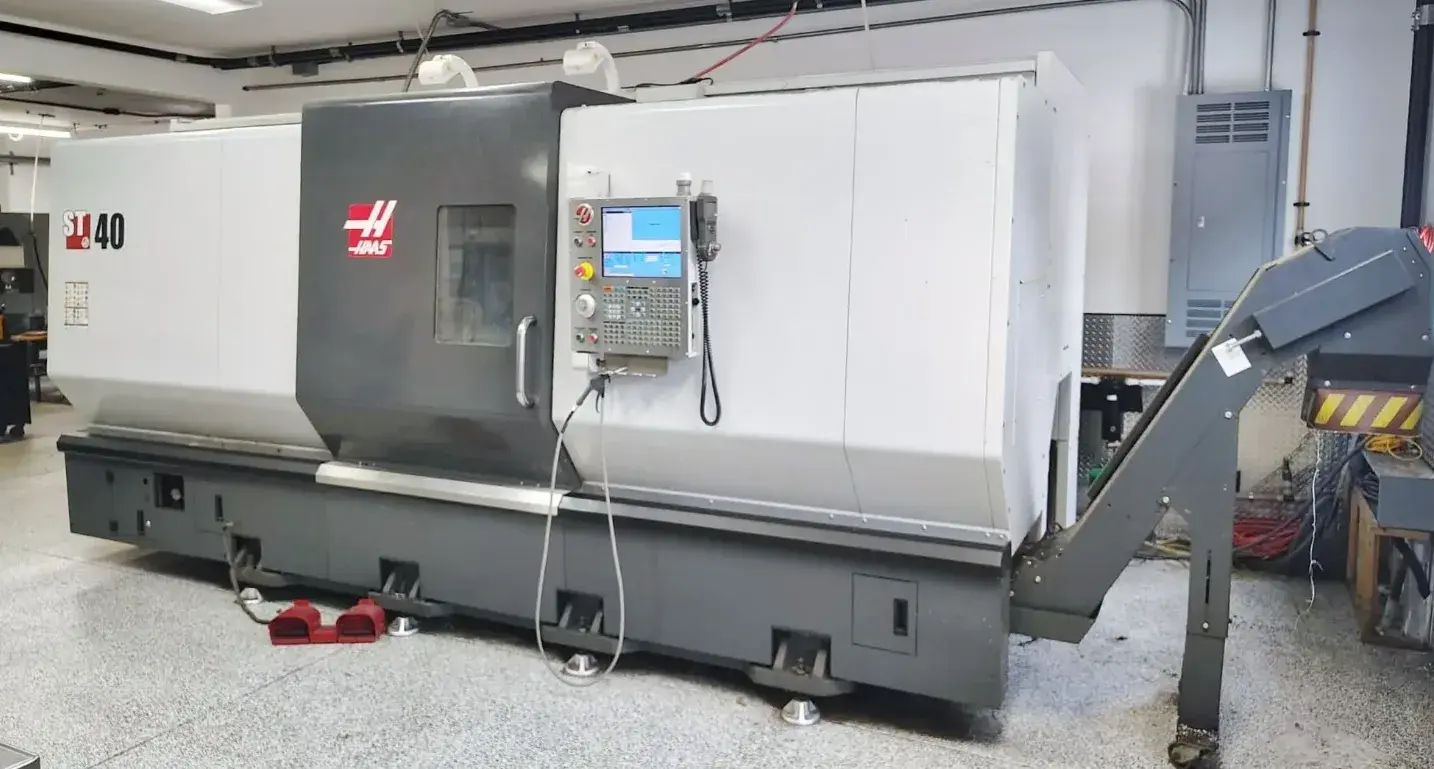

USED 2012 HAAS ST-40

Ohio, United States
1,572Listings|483Followers
Overview
CNC Lathes

Used CNC Lathe with 15" chuck, 4" bar capacity, 2,400 RPM spindle. Features include Haas CNC control, chip conveyor, tailstock, 2-speed gearbox, and more. Includes high-pressure coolant, remote jog handle, and USB port.

Specs
Swing
34.5"
876.3 mm
Machining Length
1,118 mm
44.016"
# Axis
2
2
Chuck Size
15"
381 mm
Bar Capacity
4"
101.6 mm
Power
40 hp
29.8 kW
Max RPM
2,400 RPM
2,400 RPM
Turning Dia
25.5"
647.7 mm
Tailstock
Yes
Yes
Control
CNC (HAAS)
CNC (HAAS)

Chuck Size 15"
Bar Capacity 4"
Spindle Speed 2,400 RPM
Distance Between Centers 44"
Turret 12 Station
Swing 34.5"
Turning Diameter 25.5"

Equipped With

Control Haas CNC
Chip Conveyor
Tailstock
2-Speed Gearbox
Auto Tool Presetter
Extended Tool Pocket
High Intensity Lighting
Macros
Remote Jog Handle
Rigid Tapping
Spindle Orientation
USB Port
A2-8 Spindle Nose
High Pressure Coolant System
