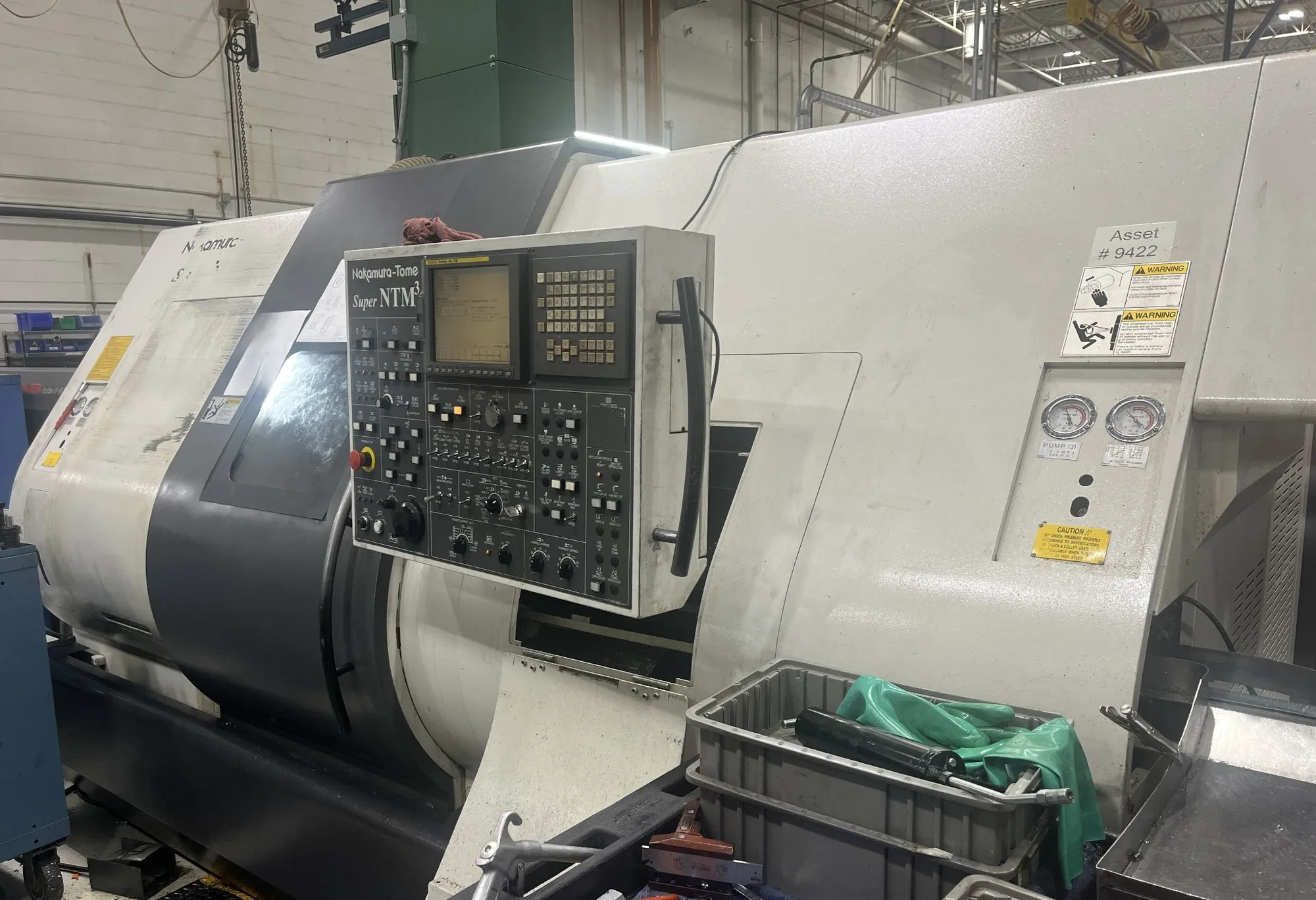

USED 2008 NAKAMURA-TOME SUPER NTM3
Overview
NAKAMURA TOME Super NTM3 CNC Turning Center (used) Two Upper Y-Axis Turrets / One Lower - All Live, New 2008 put in service 1/2009 Equipped with - Fanuc control, FMB Turbo 8-80 magazine bar loader (12’ bars), Everything goes with it! All tooling, turret tooling, accessories, etc. Bar capacity is 2.5”
Specs
Capacity & Spindles
• Max Turning Diameter: 7.48 inches (190 mm)
• Max Turning Length: 8.07 inches (Upper Turrets) / 25.2 inches (Lower Turret)
• Main & Sub-Spindle Speed: 5,000 RPM
• Main Spindle Motor: 20 / 15 HP
• Main Bar Capacity: 2.5 to 2.6 inches (approx. 51–65 mm)
• Spindle Nose: A2-6
Turrets & Tooling
• Number of Turrets: 3
• Upper Turrets: Two 24-station turrets with Y-axis travel (Y-axis: 4.015 inches total)
• Lower Turret: 24-station tool turret
• Live Milling Speed: 6,000 RPM
• Total Tool Capacity: Up to 72 fixed tools and 36 driven tools
Control & Dimensions
• CNC Control: Fanuc Series 16i-TB
• Machine Footprint: Approx. 155 inches x 90 inches
• Machine Height: 83 inches
