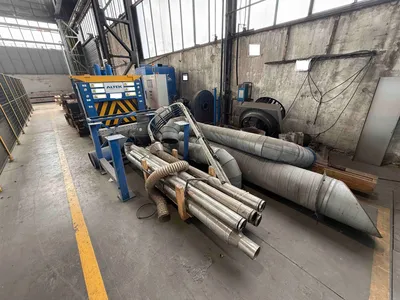

USED 2020 ALTEK Aluminum Dross Press

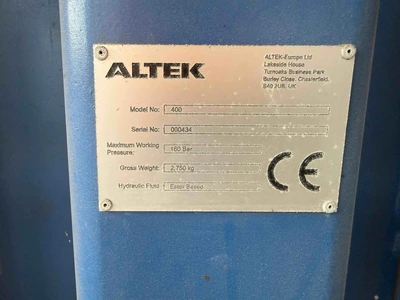

Manufacture:
- Altek
- Model 400
- New 2021
- Dismantled 2024

SPECIFICATIONS
Cycle time per Pan:
- 6 - 8 minutes

Dross Processing Capacity:
- 95 mtons per month (of dross, not recovered aluminum)
- Based on 21 days/mo at 4.523 mtons/day with 32 skims/day at 141kg/skim

DETAILS

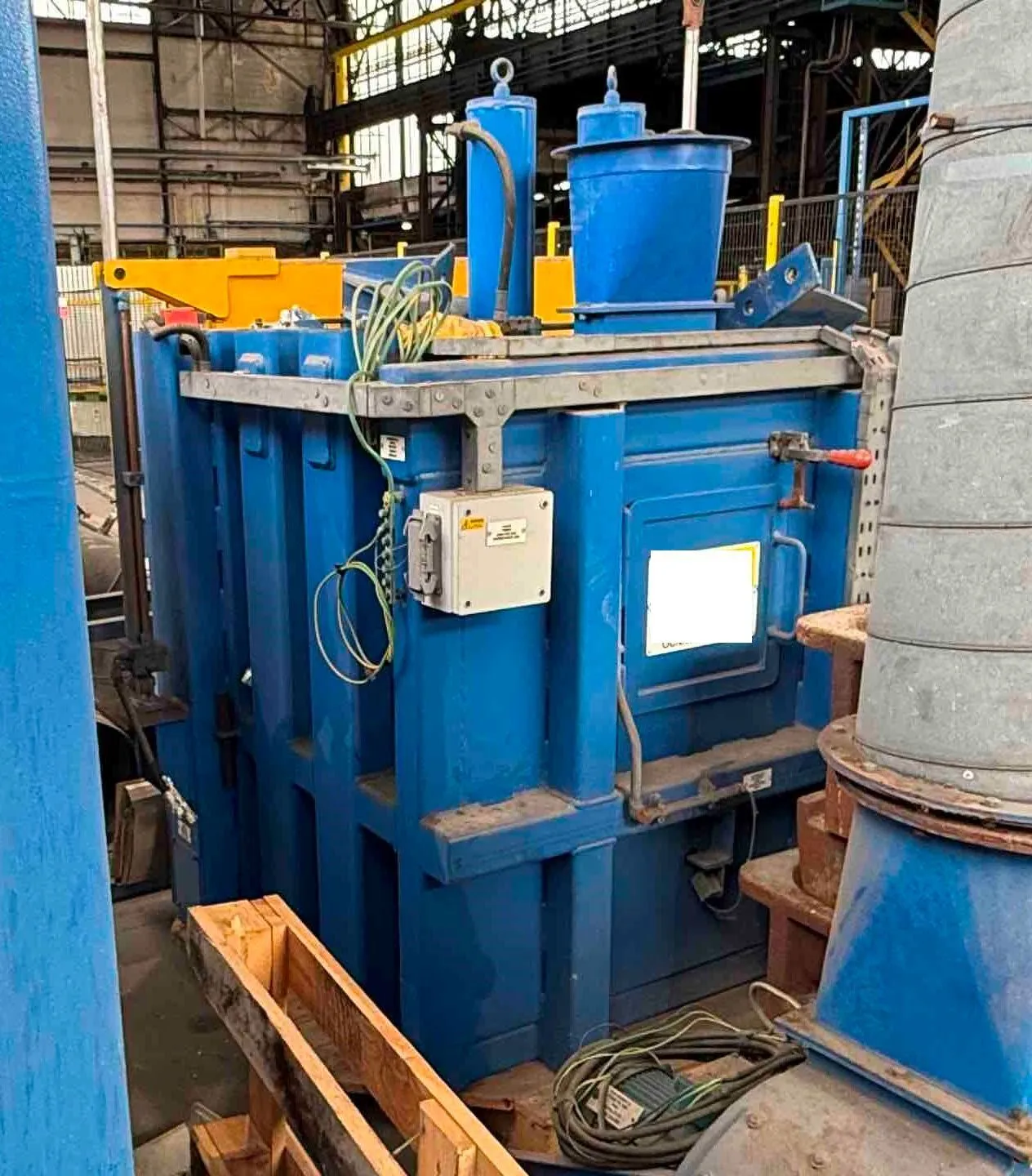

Dross Press Frame
- Steel plate reinforced with structural tubing (ISO Standards)

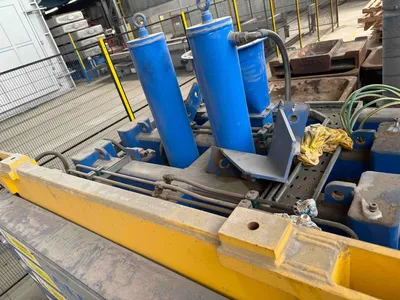

- Two-ram design
- 2750kg weight

Press Head
- Cast Alloy Steel press head with PRESSURE RIBS for considerably better compaction and metal recovery than other designs complete with internal ribs for efficient heat dissipation
- Press Head Cooling = not included

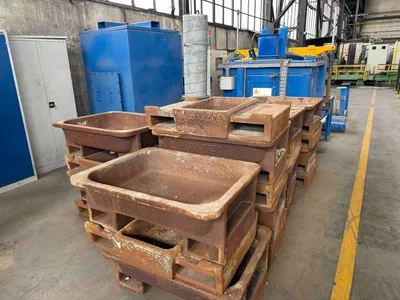

Dross Pan Sets
- Pan model = 181S
- 10 sets included
- 1 set = 1 drain pan with holes for metal flow + 1 sow mold underneath
- Pan dimensions (each) = 1016mm wide x 813mm deep x 543mm high x 1032kg
- Standard Auto Cast Alloy Steel

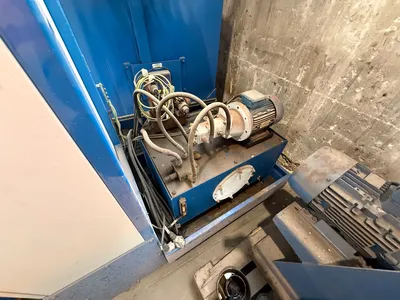

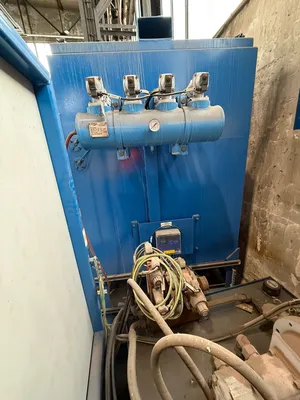

Hydraulics
- Hydraulic Pack = 200 Litre Tank and Drip Tray, Standard Tank Mounted
- Hydraulic Filters
- Door Valve System = Hoyea valve set
- Hydraulic Motor = 4 kW gear pump
- Hydraulic Fluid Type = Ester based (1st fill of hydraulic fluid will be included)
- Hydraulic extras = spare return filter + spare main ram seal kit + spare door ram seal kit
- Force = Nominal 100 mtons
- Operating Pressure = 138 Bar
- Rated Pressure = 160 Bar

Electrics
- PLC Type = Siemens S7-300 with Comfort TP1200 HMI
- Supply Voltage = 400 V, 3 ph., 50 Hz
- Control Voltage = AC: 230 V DC: 24 V

Pan Detection System
- by Laser

Spray System
- Manual system = Lance and hose device included

Sold "as is, where is" EXW warehouse floor (already dismantled)
