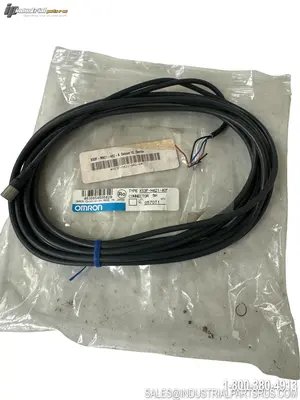

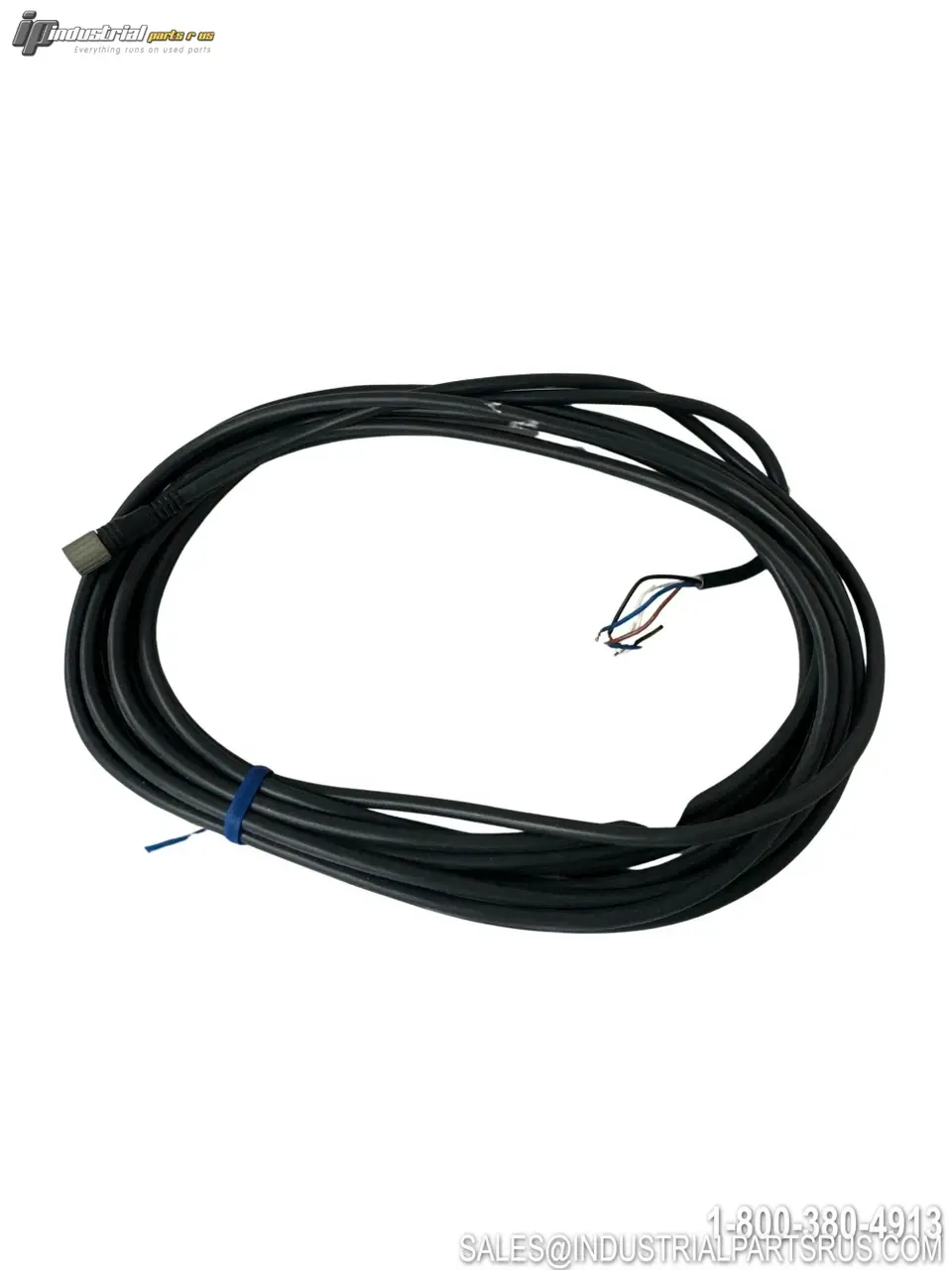

NEW OMRON XS3F-M421-402-A

The Omron XS3F-M421-402-A is a round water-resistant sensor cordset from the XS3 Series, featuring an M8 screw-on straight socket (female) connector on one end and free bare-wire flying leads on the other. It is designed to connect industrial sensors and automation devices — including E3X, E3NX, E2E-X, E2EQ, E3Z, and E3NC series — to control panels or I/O systems with an IP67 environmental protection rating. The 4-pole, 2-meter PVC standard cable carries a 1A current rating and 125VDC voltage rating, making it suitable for a wide range of factory automation signal and power wiring applications.
Specification
Value
Brand
Omron
Model / Part Number
XS3F-M421-402-A
Series
XS3
Product Type
Sensor Cable / Cordset
Connector Type (End A)
M8 Screw-on, Straight Socket (Female)
Connector Type (End B)
Free End / Flying Leads (Bare Wire)
Number of Poles / Positions
4
Cable Length (Metric)
2 m
Cable Length (Imperial)
6.6 ft
Cable Material / Jacket
PVC (Standard)
Number of Cores
4
Shielding
Unshielded
IP / Protection Rating
IP67
Current Rating
1 A
Voltage Rating (DC)
125 VDC
Contact Resistance
40 mΩ
Operating Temperature (Min)
-25°C
Operating Temperature (Max)
70°C
Connector Coding
A-Coding (4-pole)
Connector Orientation
Straight
RoHS Compliant
Yes
Compatible Sensor Series
E3X, E3NX, E2E-X, E2EQ, E3Z, E3NC, E32
Gross Weight
51.5 g
