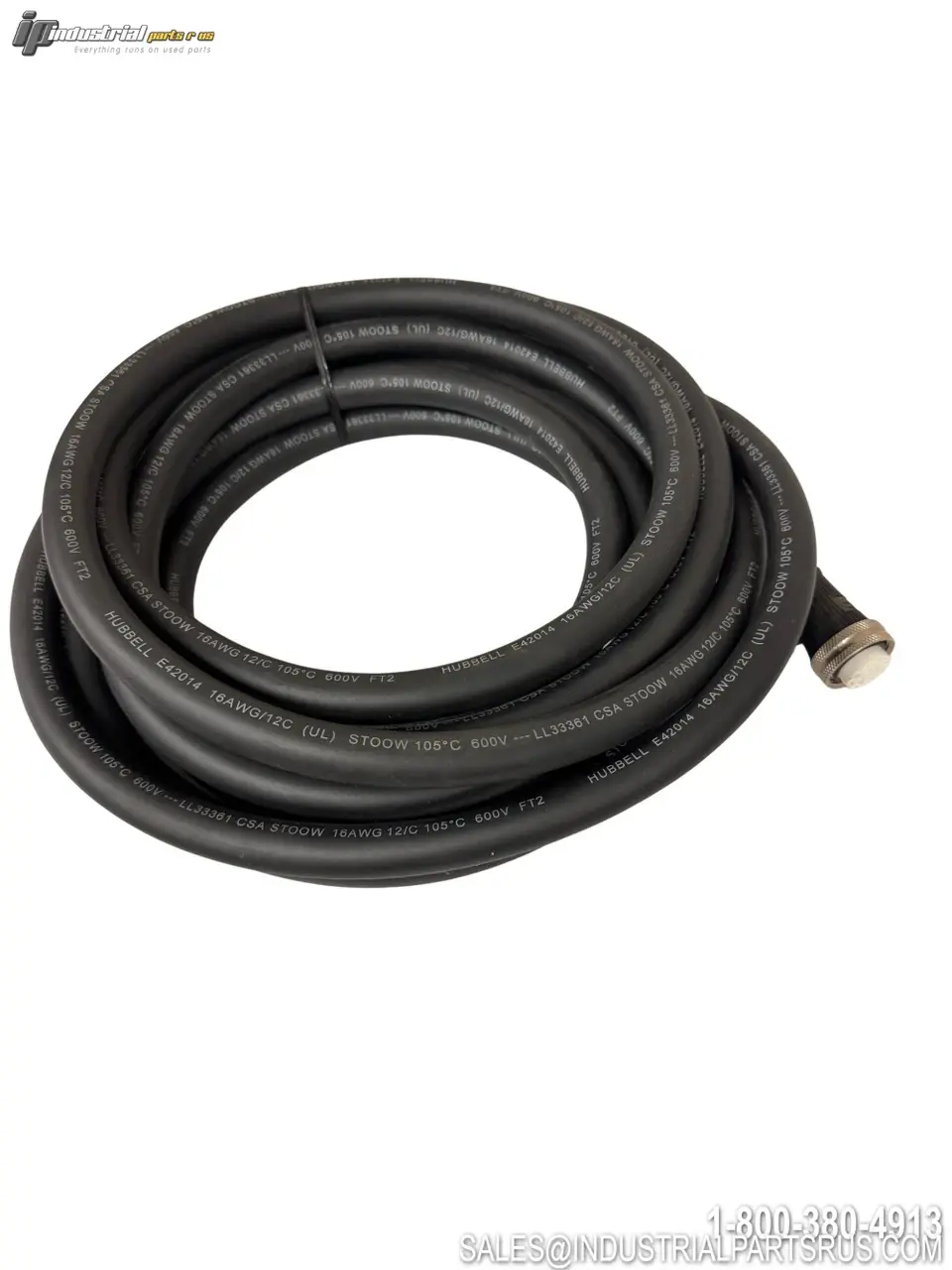

NEW HUBBELL HCMS12120

The Hubbell Wiring Device-Kellems HCMS12120 is a Mini-Quick® industrial control connector featuring a straight female plug configuration with a metallic (nickel-plated brass) coupling nut and 12-pole contact arrangement. It is pre-assembled with 20 feet of 16 AWG SEOOW cable and is rated for 600V AC/DC service in demanding industrial environments. This connector series is widely used for quick-disconnect applications involving solenoid valves, photoelectric eyes, limit switches, and proximity sensors in automated manufacturing and signal & control systems.
Specification
Value
Brand
Hubbell Wiring Device-Kellems
Model / Part Number
HCMS12120
Series
Mini-Quick®
Connector Type
Female Straight Plug
Number of Poles
12 Pole
Coupling Nut Material
Nickel Plated Brass (Metallic)
Voltage Rating
600V AC/DC
Amperage Rating (16 AWG, 10–12P)
8A
Cable Length
20 ft (6.10 m)
Cable Type
16 AWG SEOOW (TPE jacket, PVC conductor insulation, stranding 65/34)
Cable Color
Black
Thread Size
7/8"-16 UN
Contact Material – Pins
Brass (Hard Gold over Palladium Nickel plating)
Contact Material – Sockets
Leaded Nickel Copper with Stainless Steel Sleeve
Contact Resistance
≤ 5 Milliohm
Isolation Resistance
≥ 1000 Megaohm
Ingress Protection
IP67 (IEC); NEMA 4, 4X, 12, 13
Operating Temperature (SEOOW cable)
-40°C to 105°C
Corrosion Resistance
500 hours salt spray per MIL-STD-1344, Method 1001
Strain Relief
30 lbs minimum per UL 2238
UL Certification
UL 2238 and UL50, File No. E192071
CSA Certification
CSA C22.2 No. 182.3 and C22.2 No. 94
RoHS Compliant
Yes
Typical Applications
Solenoid valves, photoelectric eyes, limit switches, 18mm & 30mm proximity switches
We warranty all items for 30 days from date of purchase.
