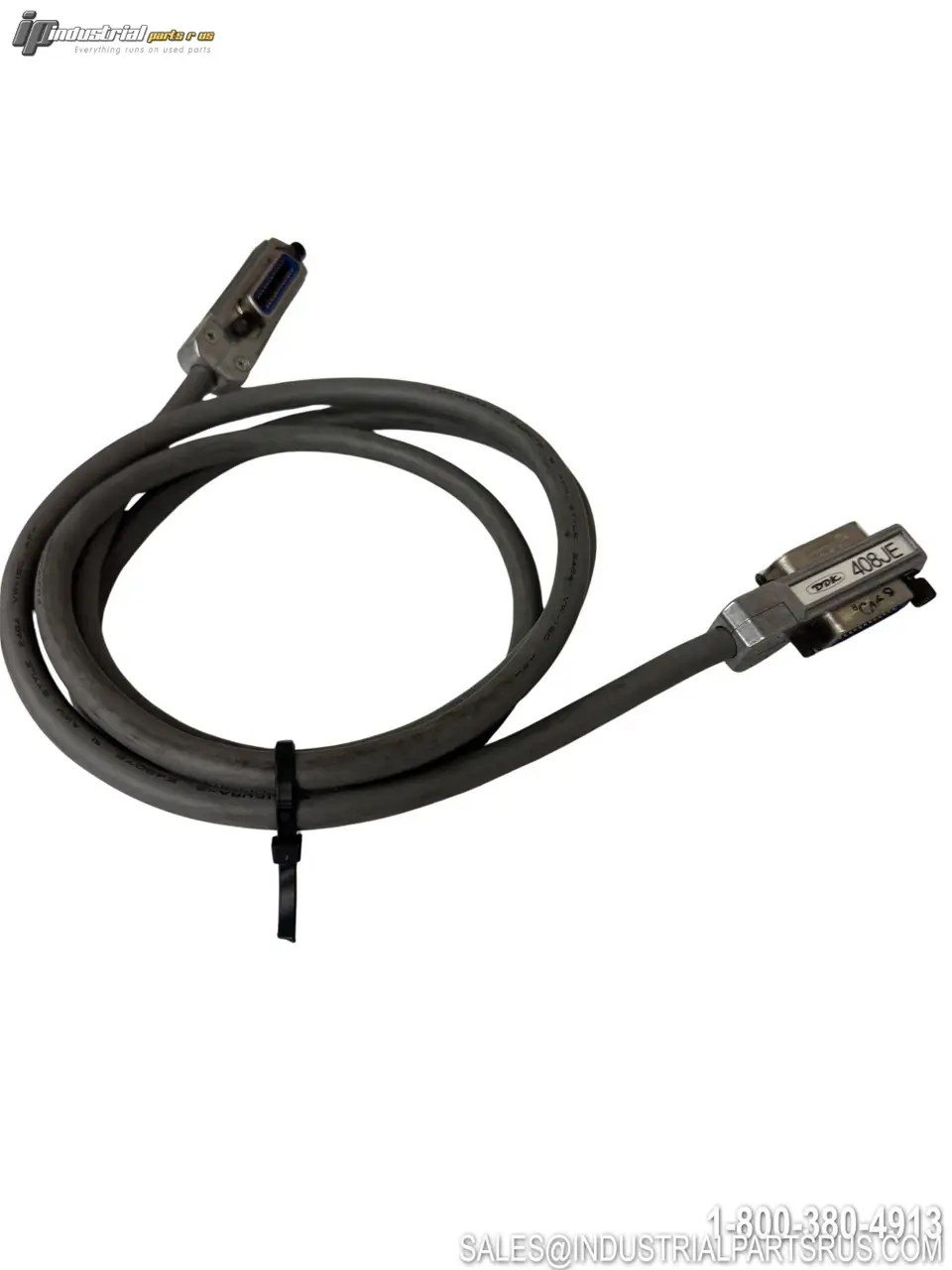

USED FUJIKURA DDK 408JE

The Fujikura DDK 408JE is a GP-IB (GPIB) cable assembly designed for general-purpose interface systems used in test and measurement instrumentation. It conforms to the IEEE-STD-488-1978 and IEC-Pub.625-1 international standards, enabling interconnection of compatible measurement devices for systemization and automation. The assembly features a fully metal-hooded connector design for enhanced EMI/RFI shielding in compliance with FCC, CISPR, and VDE radio interference regulations.
Specification
Value
Brand
Fujikura (formerly DDK)
Model / Part Number
DDK 408JE
Product Type
GP-IB (GPIB) Cable Assembly
Interface Standard
IEEE-STD-488-1978 / IEC-Pub.625-1
Number of Contacts
24
Conductor Resistance
0.14 Ω max. / m
Shield Resistance
0.0085 Ω max. / m
Capacitance
150 pF max. / m (at 1 kHz)
Operating Temperature
–10°C to +60°C
Shielding
Full metal hood, EMI/RFI shielded
EMC Compliance
FCC, CISPR, VDE
Connector Type
GPIB (IEEE-488) Double-Ended
Series
408JE Series
Application
Test & Measurement Instrumentation, GP-IB Interface Systems
We warranty all items for 30 days from date of purchase.
