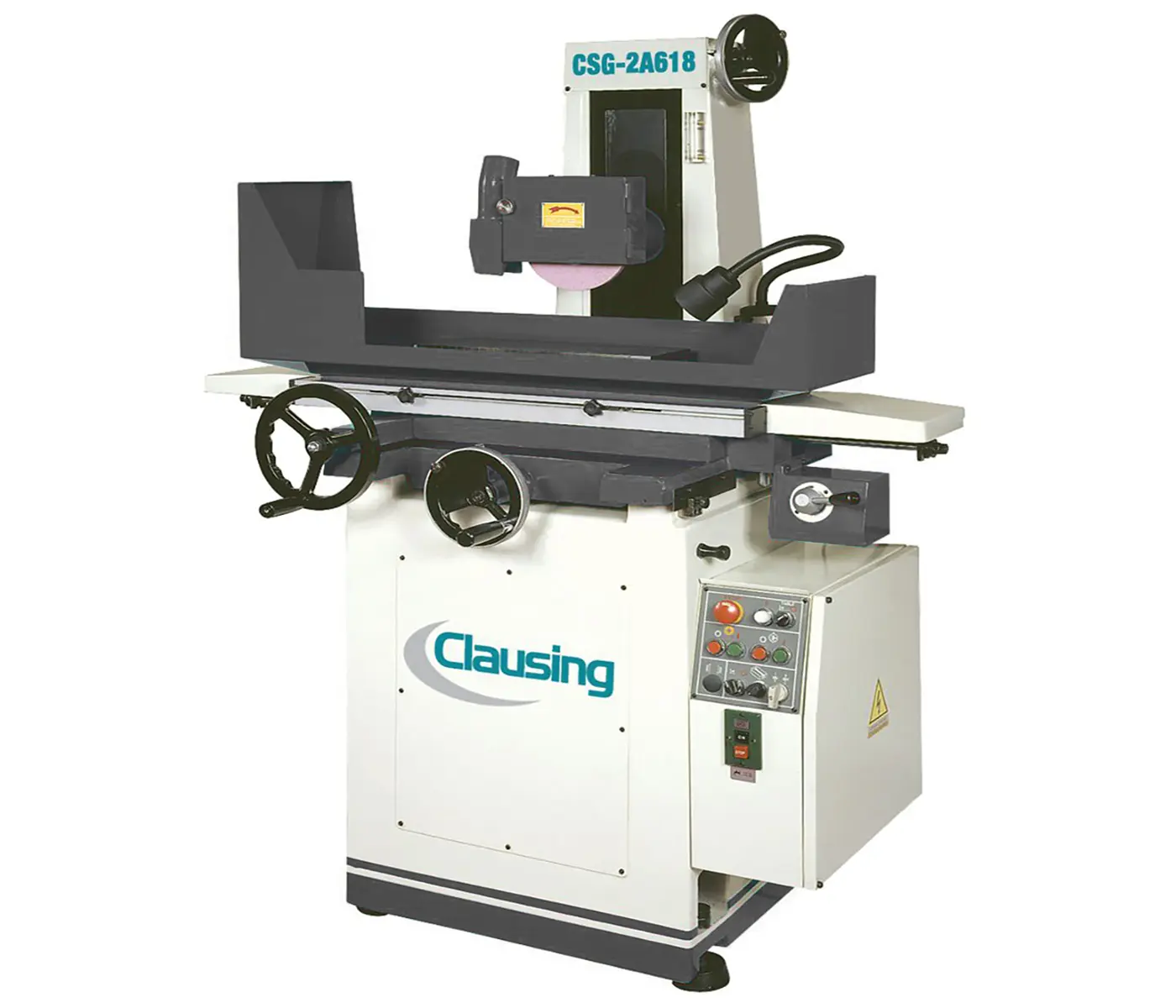

Clausing Hydraulic Precision Surface Grinder, hydraulic driven longitudinal movement and servo motor driven crossfeed, 6”x18” table size, X Maximum manual travel of 20”, Turcite B coated V and Flat ways for wear protection, 2 Hp Spindle drive motor, 230 or 460 volts, 3 phase
| Table-W | 6" | 152.4 mm |
| Table-L | 18" | 457.2 mm |
| Horz/Vert | Horz | Horz |
| Power | 2 hp | 1.5 kW |
| Grinding Wheel Width | 0.5" | 12.7 mm |
| Grinding Wheel Dia. | 8" | 203.2 mm |
| Weight | 1808 lbs. | 1808 lbs. |
Machine Style.......................... Manual – Hydraulic
Drive Type............................. V3 class motor
Table Size (in)........................ 6 x 18
Longitudinal Maximum Travel Hyd (in)... 18.9
Longitudinal Maximum Travel Manual (in) 20
Table Speed Infinitely Variable (in/min)196 – 984
Maximum Cross Auto Traverse Travel (in) 7
Maximum Cross Travel Manual (in)....... 7.68
Auto Traverse Increment (in)........... 0.04 – 0.4
Crossfeed Handwheel Revolution (in).... 0.2
Crossfeed Handwheel Graduation (in).... 0.0005
Vertical Handwheel per Revolution (in) 0.05
Vertical Handwheel Graduation (in)..... 0.0001
Optional Standard Magnetic Chuck Size (inch) 6 x 18
Grinding Spindle Speed................. 3450 rpm
Standard Grinding Wheel Diameter (in).. 8
Standard Grinding Wheel Width (in)..... 0.5 or 0.75
Standard Grinding Wheel Bore (in)..... 1.25
Spindle Motor Horsepower.............. 2
Hydraulic Motor Horsepower............ 1
Crossfeed Motor Horsepower............ 40W
Elevating Motor Horsepower............ N/A
Coolant System Optional
Machine Weight (lbs.)................. 1,808
Machine Floor Space (L x W x H inch)
71.3 x 44.6 x 65.4
