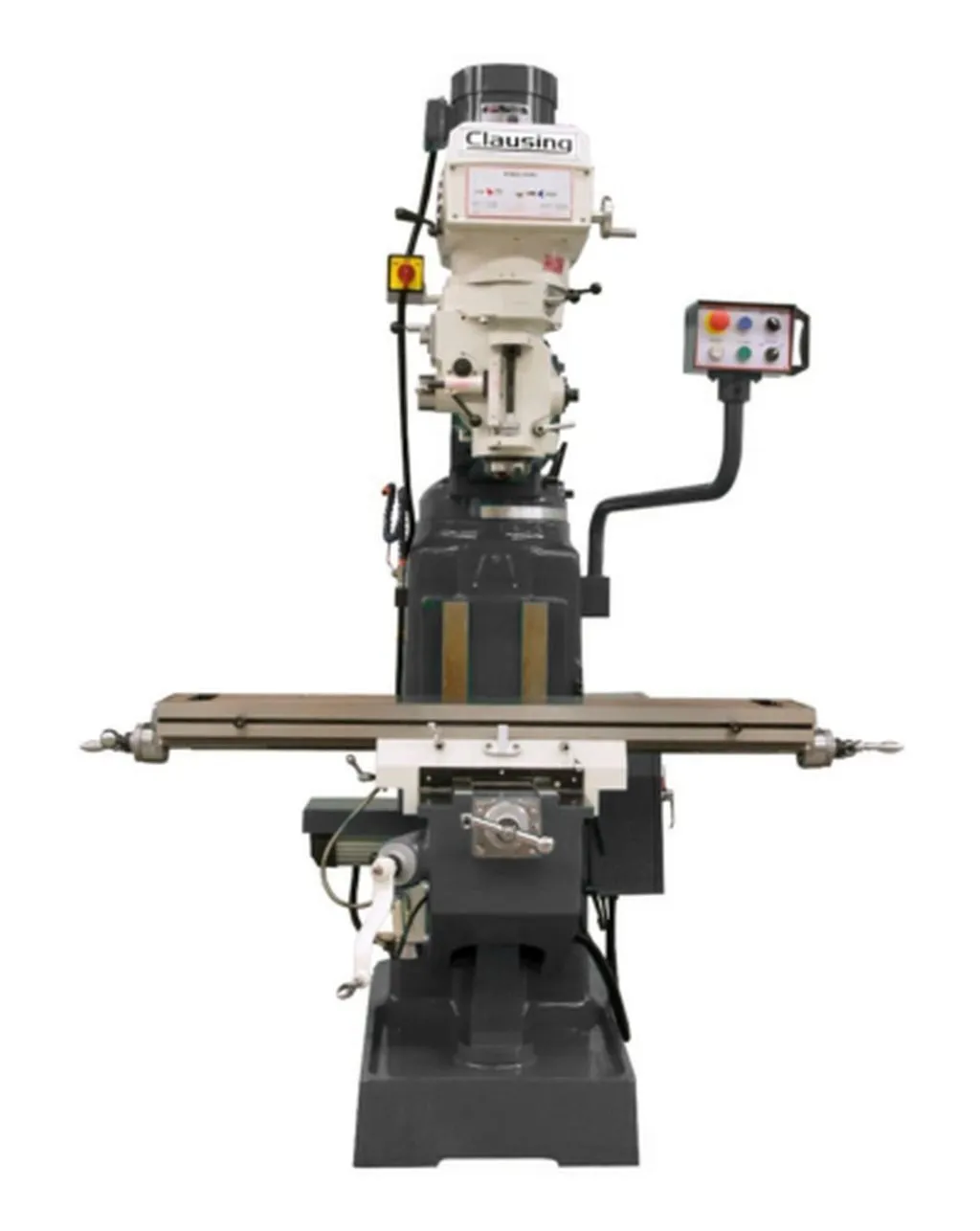

Discover precision machining with the new Clausing 4VSQ40 Knee Mill. Featuring a 10" x 54" table, 5Hp power, manual variable speed, and NMTB 40 taper for optimal performance. Ideal for skilled craftsmen seeking reliability and robust design.
| Table-W | 54" | 1,371.6 mm |
| Table-L | 10" | 254 mm |
| Travel-Long | 4.13 mm | 0.1626" |
| Travel-Cross | 15.4 mm | 0.6063" |
| Power | 5 hp | 3.7 kW |
| RPM | 604,300 RPM | 604,300 RPM |
| Taper | NMTB 40 | NMTB 40 |
| Dimensions | 77.6" x 106.3" x 88.8" | 77.6" x 106.3" x 88.8" |
| Weight | 3,190Lbs | 3,190Lbs |
Specifications:
• Machine Style..........Knee Mill
• Spindle Speed Control..........Manual Variable Speed
• Spindle (Hp)..........5
• Total Amp Draw @208V 3Ph..........17
• Total Amp Draw @230V 3PH..........16
• Total Amp Draw @460V 3Ph..........8
• Table Size (inch)..........10 x 54
• Number T-Slots..........3
• T-Slot Width (inch)..........(.638)
• T-Slot Center Distance (inch)..........2.08
• Table Way Design..........Dovetail
• Cross Feed Way Design..........Square
• Knee Way Design..........Square
• X Longitudinal Travel Manual (inch)..........4.13
• Y Cross Travel Manual (inch)..........15.4
• Knee Travel Manual (inch)..........14
• Ram Travel Manual (inch)..........21.9
• Variable Spindle Speed (rpm)..........60 – 4300
• Variable Spindle Speed Low Range (rpm)..........60 – 500
• Variable Spindle Speed High Range (rpm)..........550 – 4300
• Spindle Taper..........NMTB 40
• Spindle quill Travel (inch)..........5
• Quill Feed (in/rev)..........(.0015/.0031/.006)
• Quill Diameter (inch)..........4.13
• Column Turret Diameter (inch)..........13.39
• Knee Width (inch)..........16.93
• Column Bearing Length (inch)..........16.93
• Saddle/Table Bearing Length (inch)..........20.28
• Ram/Turret Bearing Length (inch)..........17.13
• Ram Length (inch)..........33.46
• Table Load (lbs.)..........1,108
• Machine Weight (lbs.)..........3,190
• Voltage Required..........208/230/460
• Phase..........3
• Machine Foot Print (LxWxH) (inch)..........77.6 x 106.3 x 88.8
• Shipping Weight (lbs.)..........3,610
Machine Features:
• Manual variable speed with sheave pulley drive
• 10” x 54” Table surface
• Meehanite Castings for superior rigidity and wear resistance
• Hardened and Ground X,Y,&Z ways
• X/Y ways coated with Turcite B for excellent wear resistance
• Column and Knee way covers
• Ground T-slots to provide reference edge for workpiece positioning
• Hardened and ground table surface, and spindle
• Chromed and ground quill
• Chromed and double nut leadscrews for backlash compensation
• ABEC7/CP4 Spindle bearings
• Coolant System w/pump and switch
• Articulating head for compound angles 90 degree left and right 45 degree up and down by worm gear
• Lever operated manual rapid quill movement
• Hand wheel for fine quill feed
• Adjustable automatic feed disengagement for quill feed
• Micrometer depth stop for quill
• Reversing switch for clockwise or counter clockwise operation of spindle
• Hand operated spindle brake
• One shot way lube system
• A one year warranty backed by Clausing Service Center dedicated to support our customers with parts and service
