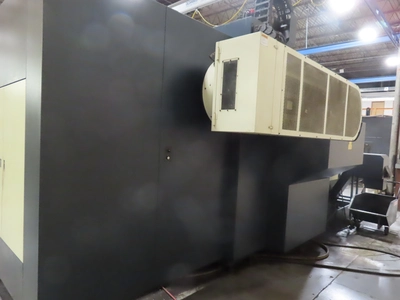

USED 2006 JOHNFORD CNC DMC-2100H
Overview

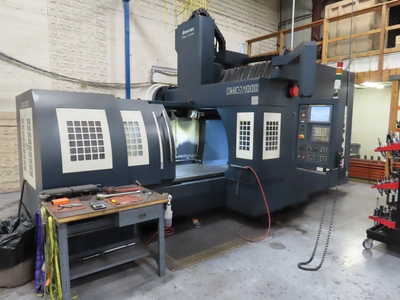

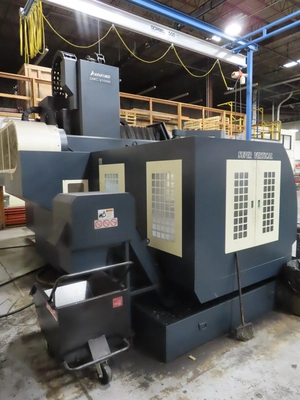

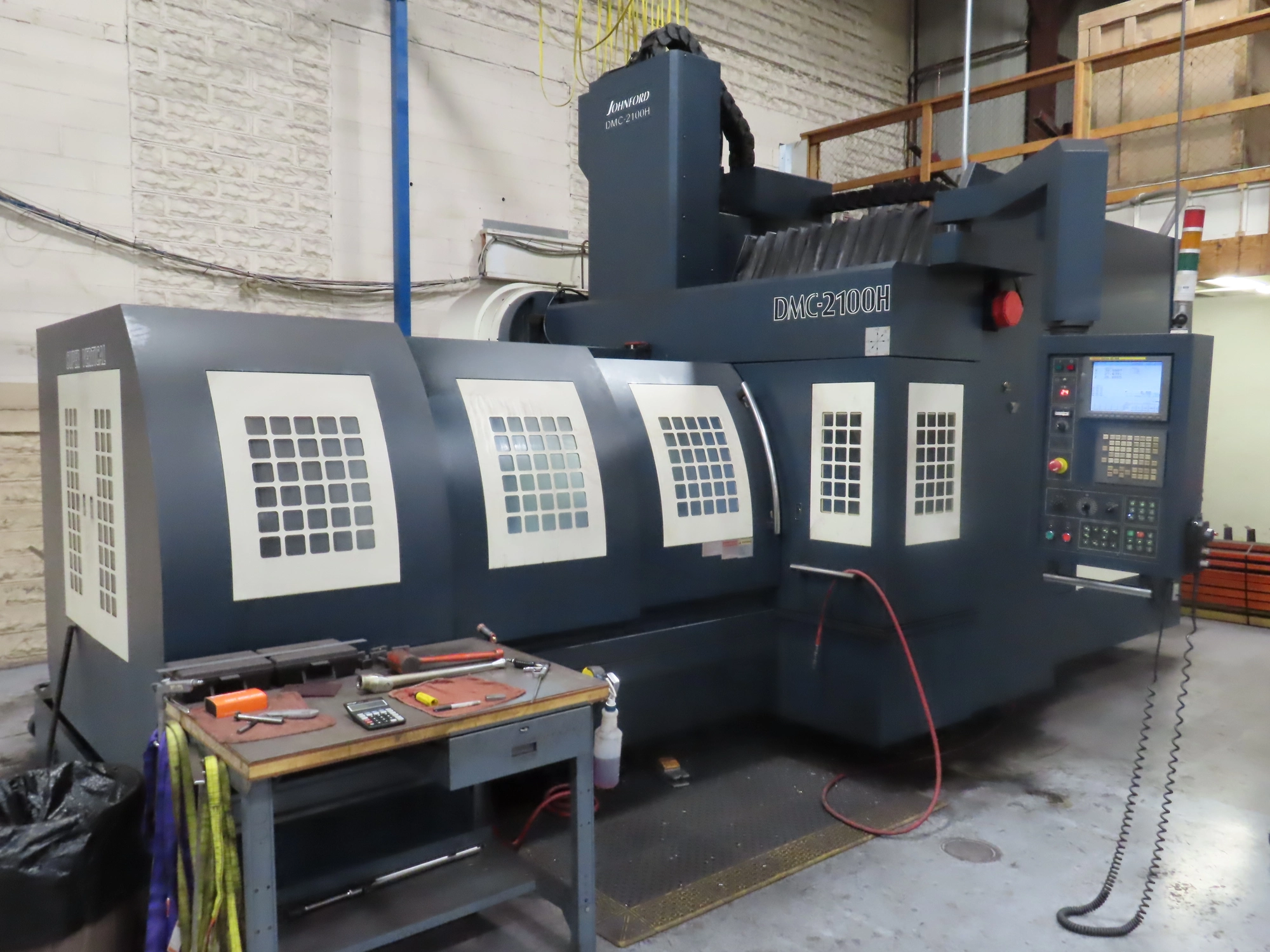

The Johnford DMC-2100H is a heavy-duty, bridge-type vertical machining center designed for precision machining of large and complex workpieces. Built with a rigid cast iron structure and a moving crossrail design, this machine delivers excellent stability, accuracy, and cutting performance for demanding applications in the aerospace, energy, mold & die, and heavy equipment industries.
Specs

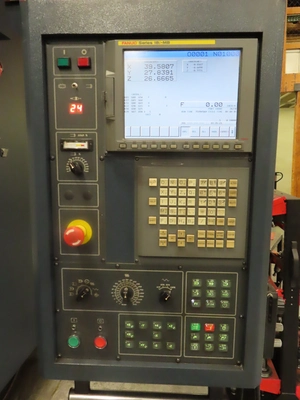

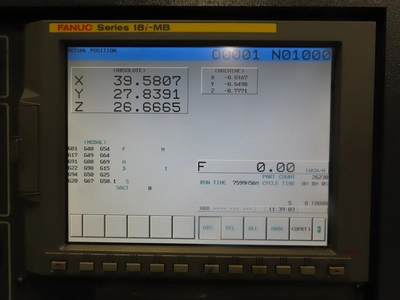

Control:: Fanuc 18iMB CNC Control

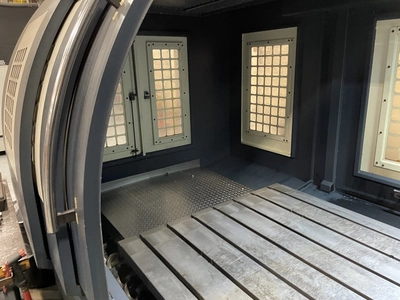

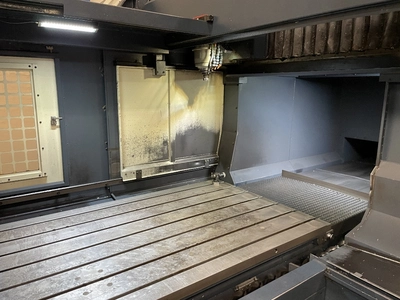

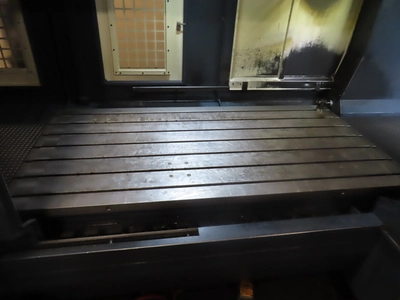

Table Size:: 86.6" x 43.3"
Max Table Load:: 13,200 LBS
Machine Travels:: 80.7" / 51" / 31.5"
Distance Spindle to Table:: 5.9" - 37.4"
Width Between Columns:: 51.2"

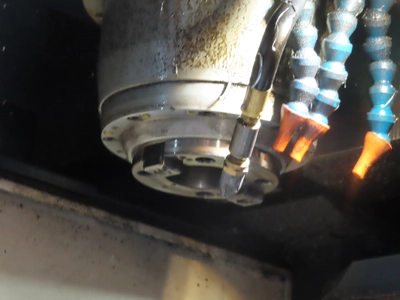

Spindle Taper:: CAT 50
Spindle Speeds:: 6,000 RPM
Cutting Feed Rate X/Y/Z:: 393.7 IPM
Rapid Traverse Rate X/Y/Z:: 590 / 590 / 472 IPM
Tool Changer Capacity:: 40 Tools
Max Tool Weight:: 33 LBS
Max Tool Diameter/Length:: 7.8" / 15.7"
Spindle Drive Motor:: 25 HP + Auto High Lo Gear
Equipped With

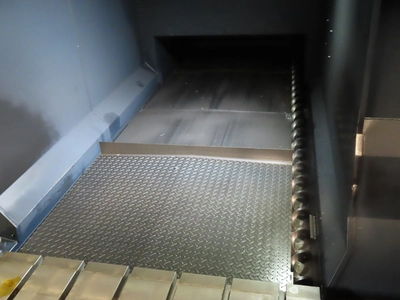

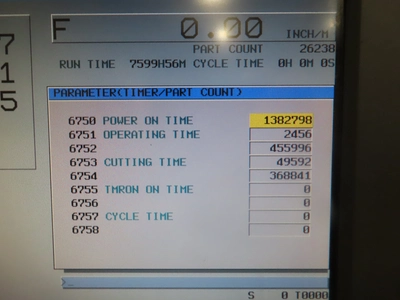

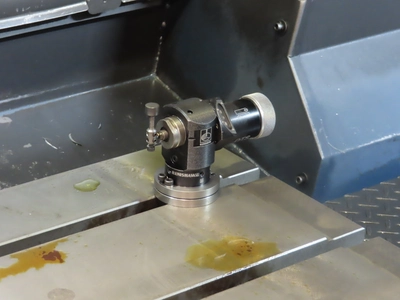

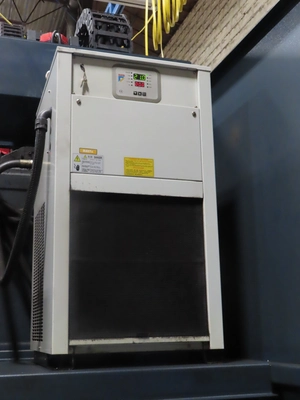

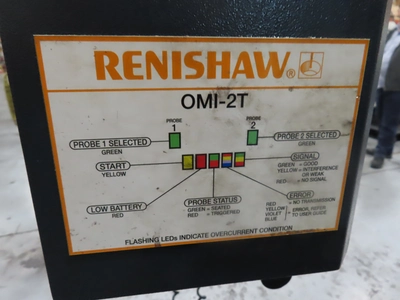

Fanuc 18i-MB CNC Control, Renishaw Wireless Probing System with Parts Probe and Tool Setter, CAT 50 Spindle Taper, 25HP + Auto High Low Gear Spindle Motor, 40 ATC, Dual Internal Chip Augers, Chip Conveyor, Coolant System with Tank and Pump, Habor Chiller, Keys, Assorted Manuals & Documentation. NOTE: Machine has less than 8,500 Cutting Hours!
