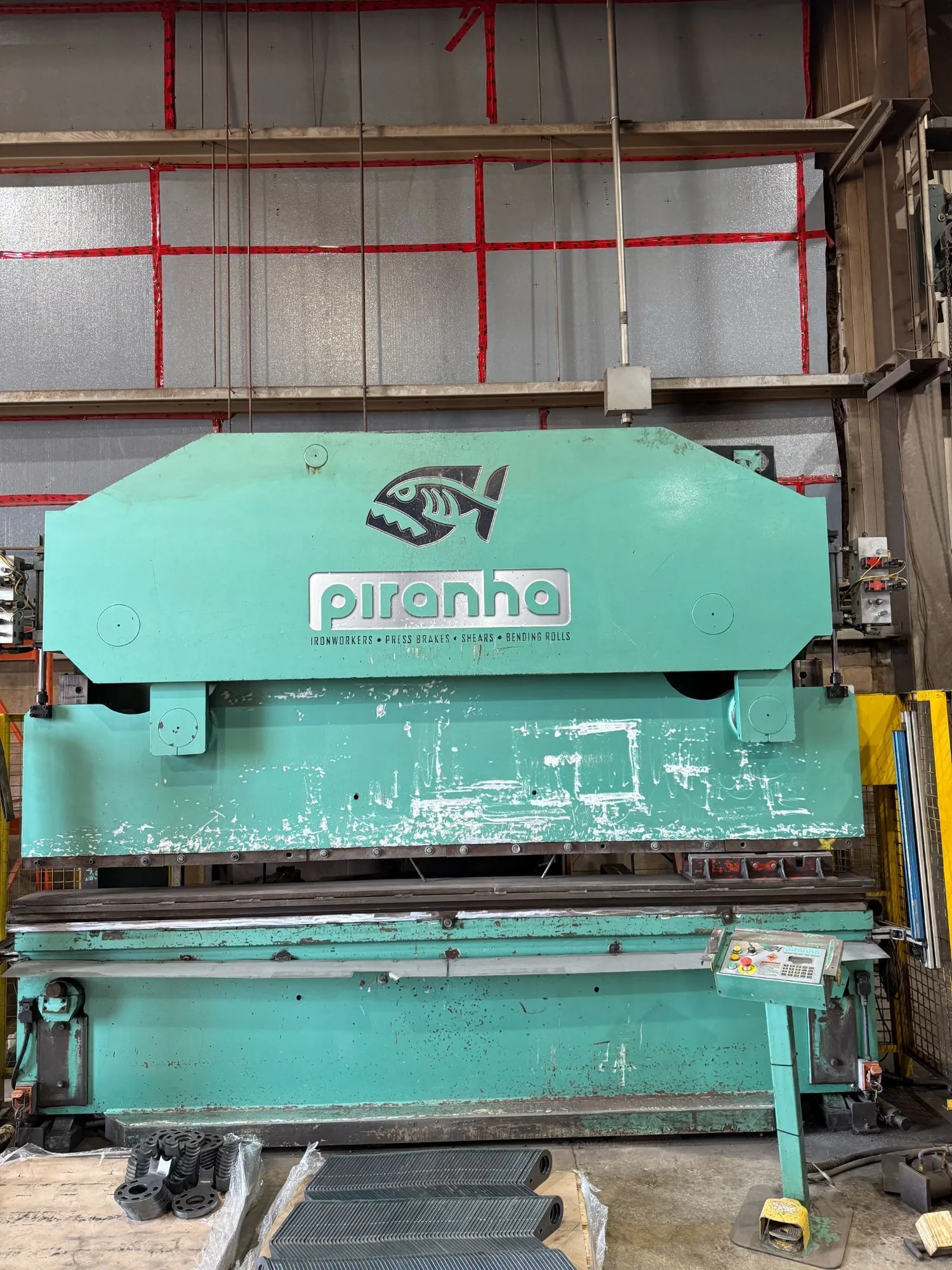

12' PIRANHA 250 TON PRESS BRAKE
MANUFACTURER: PIRANHA
MODEL: 25012
SERIAL NO.: 250121021
POWER: 575V 3PH 60HZ
FULL LOAD CURRENT: 19.3A
LARGEST LOAD RATING: 19.3A
SHORT CIRCUIT INTERRUPT CAP.: 5KA
Bending capacity: 12' x 1/4" mild steel
Tonnage capacity: 250 tons
Overall length of bed & ram: 12'
Distance between housings: 10'5"
Stroke: 8"
Open height: 17"
Closed height: 9"
Throat depth: 8""
Width of bed: 7-1/2"
Floor to top of bed: 35"
Speeds approx.: 60""/minute approach & return
19""/minute maximum press
60""/minute return
*COMES WITH SOME TOOLING*
MACHINE WEIGHT: ~33000 LBS
MACHINE DIMENSIONS 12' X 6' X 10' FT.
| Tonnage | 250 T | 226.796 t |
| Between Housings | 10" | 0.3 m |
| Stroke | 8" | 203.2 mm |
| # Axis | 2 | 2 |
| Dimensions | 12' X 6' X 10' FT. | 12' X 6' X 10' FT. |
| Weight | 33000 LBS | 33000 LBS |
12' PIRANHA 250 TON PRESS BRAKE
MANUFACTURER: PIRANHA
MODEL: 25012
SERIAL NO.: 250121021
POWER: 575V 3PH 60HZ
FULL LOAD CURRENT: 19.3A
LARGEST LOAD RATING: 19.3A
SHORT CIRCUIT INTERRUPT CAP.: 5KA
Bending capacity: 12' x 1/4'' mild steel
Tonnage capacity: 250 tons
Overall length of bed & ram: 12'
Distance between housings: 10'5''
Stroke: 8''
Open height: 17''
Closed height: 9''
Throat depth: 8''
Width of bed: 7-1/2''
Floor to top of bed: 35''
Speeds approx.: 60''/minute approach & return
19''/minute maximum press
60''/minute return
*COMES WITH SOME TOOLING*
MACHINE WEIGHT: ~33000 LBS
MACHINE DIMENSIONS 12' X 6' X 10' FT
