USED STOKES 900-513R

Manufacturer Information
Stokes
Stokes is a long-established name in tablet compression equipment, with rotary tablet presses used for pharmaceutical, nutraceutical, confectionery, chemical, and specialty tablet manufacturing.
This Stokes Model 900-513R is a custom-configured rotary tablet press built around the established 900-513 platform. Its distinguishing feature is a specialized die-twisting design intended to rotate the dies to help break product sticking during tablet ejection.
Manufactured in 2020, this machine is reported to have less than two hours of actual tablet-pressing operation.
Description

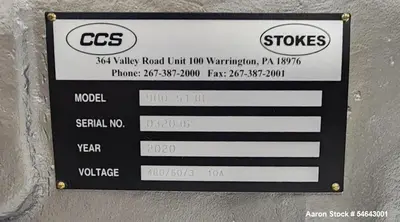

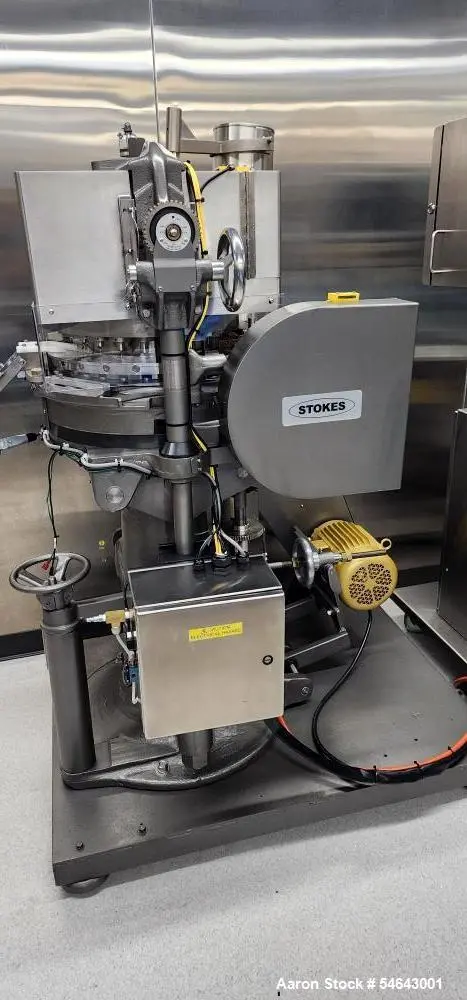

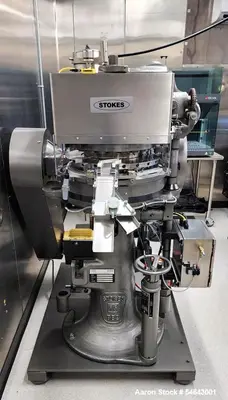

Available for sale is a used 2020 Stokes Custom Rotary Tablet Press, Model 900-513R, Serial Number 032036, equipped with a 23-station rotary turret and a specialized die-twisting ejection arrangement.
The machine's most notable feature is its custom die-twisting design. During the tablet ejection process, the dies rotate to help break sticking between the compressed product and tooling. This configuration was developed as a specialized solution for formulations where sticking during ejection can create production challenges.
The press incorporates a 23-station rotary turret, product hopper and feed system, compression and adjustment controls, machine guarding, and floor-mounted drive assembly.
Electrical requirements are 480V, 3-phase, 60 Hz, 10 amps.
Built in 2020, the machine reportedly accumulated less than two hours of actual pressing operation, making its extremely limited reported production use a significant feature for buyers evaluating used tablet-compression equipment.
Potential applications include pharmaceuticals, nutraceuticals, vitamins, dietary supplements, confectionery products, chemicals, and specialty compressed tablets, particularly formulations where tablet sticking during ejection is a concern.
Specifications

Specification
Details

Manufacturer
Stokes

Model
900-513R

Equipment Type
Custom Rotary Tablet Press

Turret
23 Station

Special Configuration
Die-Twisting Ejection Design

Die Function
Rotates Dies to Help Break Sticking During Ejection

Product Hopper
Included

Feed System
Included

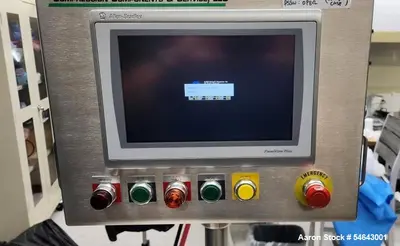

Compression Controls
Included

Adjustment Controls
Included

Machine Guarding
Included

Drive Assembly
Floor Mounted

Electrical
480V / 3 Phase / 60 Hz

Full Load Amps
10 A

Reported Actual Pressing Use
Less Than 2 Hours

Serial Number
032036

Year Manufactured
2020

Condition
Used

Key Feature – Custom Die-Twisting Ejection Design

Custom-designed die rotation arrangement
Dies rotate to assist during tablet ejection
Designed to help break sticking at the die interface
May reduce ejection difficulties with challenging formulations
Specialized alternative to a conventional fixed-die arrangement
Particularly relevant for products known to exhibit sticking during compression and ejection

Performance of the die-twisting system will depend on formulation, tooling, compression settings, operating speed, lubrication, tablet geometry, and other process variables.
Typical Applications

Pharmaceutical tablet compression
Nutraceutical tablet manufacturing
Vitamin production
Dietary supplement tablets
Confectionery tablets
Chemical tablets
Specialty compressed products
Difficult-to-eject formulations
Product development
Pilot and specialty production
Tablet formulation scale-up
Applications involving tablet sticking concerns

Products This Tablet Press Could Be Used For

Pharmaceutical tablets
Vitamin tablets
Mineral supplements
Nutraceutical tablets
Dietary supplements
Confectionery tablets
Compressed candy products
Chemical tablets
Specialty formulations
Functional ingredient tablets
Compatible compressed powders
Products prone to sticking during ejection

Actual suitability depends on formulation characteristics, tooling configuration, tablet dimensions, compression force, required output, regulatory requirements, and process validation. Pharmaceutical and regulated applications require appropriate qualification and validation by the end user.
Frequently Asked Questions

What makes this Stokes 900-513R different from a conventional rotary tablet press? Its primary distinguishing feature is the custom die-twisting design, which rotates the dies to help break sticking during tablet ejection.

How many tablet stations does the press have? The machine is equipped with a 23-station rotary turret.

How much has the tablet press been used? The machine was manufactured in 2020 and is reported to have less than two hours of actual pressing operation.

What equipment is included? The press includes its 23-station turret, product hopper and feed system, compression and adjustment controls, machine guarding, and floor-mounted drive assembly.

What are the electrical requirements? The machine requires 480V, 3-phase, 60 Hz electrical service and is rated at 10 amps.

Can Aaron Equipment assist with shipping and logistics? Yes. Aaron Equipment can assist with rigging and loading coordination, domestic and international freight, customs documentation, and logistics planning for tablet presses and other pharmaceutical or process machinery.
