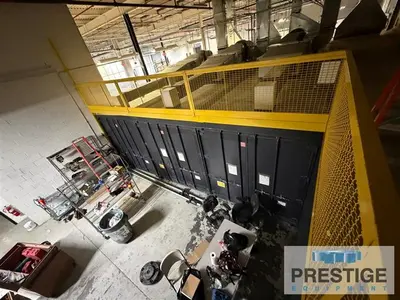

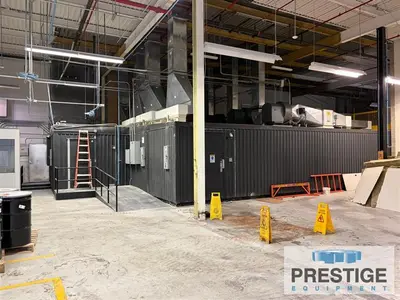

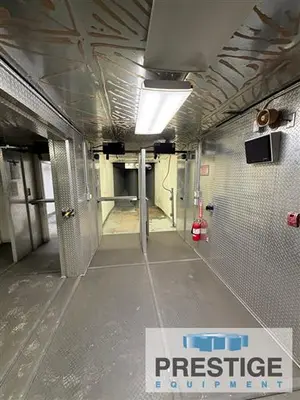

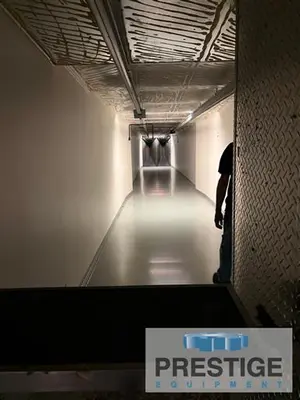

USED 2013 ADVANCED INTERACTIVE SYSTEMS QUICKRANGE

QUICKRANGE GUN RANGE INFORMATION:
QuickRange is designed for use with handguns, shotguns, submachine guns and centerfire file munitions.:
It shall withstand the use of jackets, semi-jacketed, non-jacketed ammunition and shotgun ammunition:
including shot and slug, with muzzle velocities between 900-3,300 feet per second (274-1,000 meters per second):
and energy levels up to 3,600 foot pounds of kinetic energy. No Steel Core, No Armor Piercing, No Incendiary,:
No .50 cal BMG. Pistol Lanes are rated for calibers up to 2,000 feet per second. Rifle lanes are rated for:
calibers up to 3,600 feet per second.:

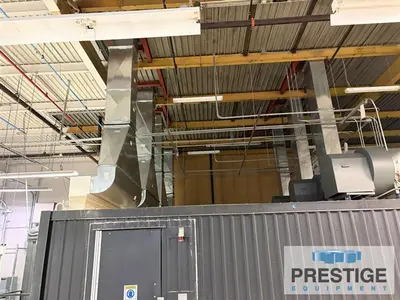

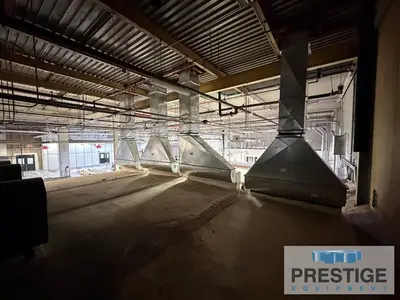

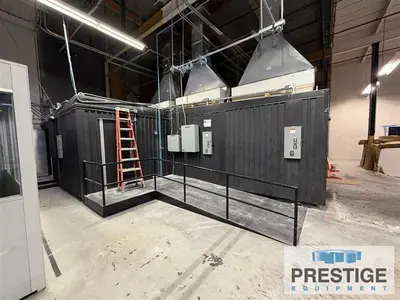

Self-Contained Range with negative HVAC system pressure to ensure that no lead, smoke or air born particles:
get back to the shooter or exit the facility. All air moves the full shooting distance of the QR and is:
exhausted in front of the bullet traps through the ceiling. Thee air passes through a HEPA filter rack:
and then an exhaust fan. All air is exhausted outside the QR after being filtered through a 95%-99.97% HEPA Filter.:

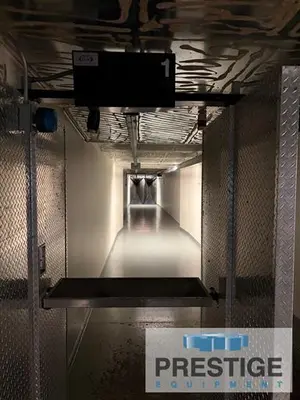

Ceiling Plates are configured to protected down range lights from direct bullet contact from the firing line.:

System Highlights:

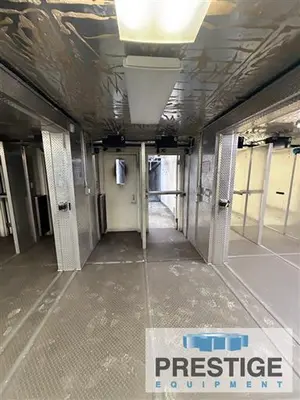

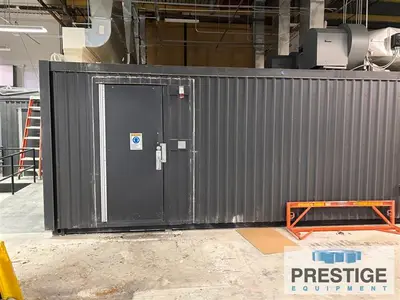

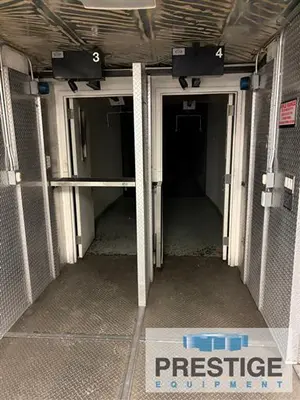

- CTRR 2/100 Rifle Rated Pre-Fabricated Bulletproof Shooting Container with (2) Shooting Lanes:
- CTRR 2/50 Rifle Rated Pre-Fabricated Bulletproof Shooting Container with (2) Shooting Lanes:
- CTRP 2/40 Pistol Rated Pre-Fabricated Bulletproof Shooting Container with (2) Shooting Lanes:
- CTRR 2/40 Rifle Rated Pre-Fabricated Bulletproof Shooting Container with (2) Shooting Lanes:
- 5 Modules:

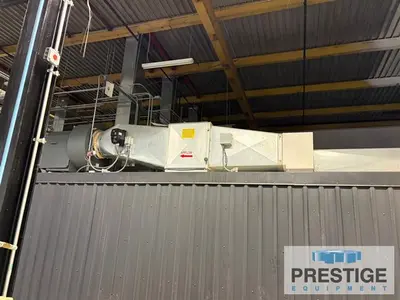

- HVAC System:
- Thermostat Control:

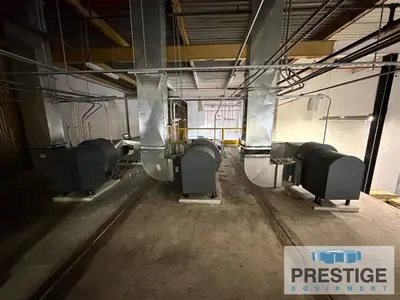

- Exhaust Fan:
- HEPA Filter:

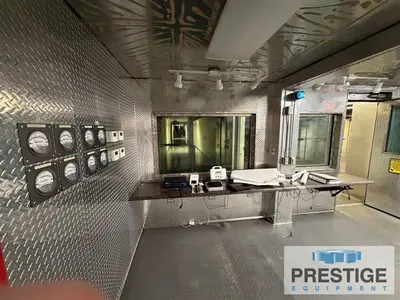

- Range Control:
- Fire Alarm:
- KM Coatings Mfg. Shield Coat Roof System:
- SRI Target Retrieval System:

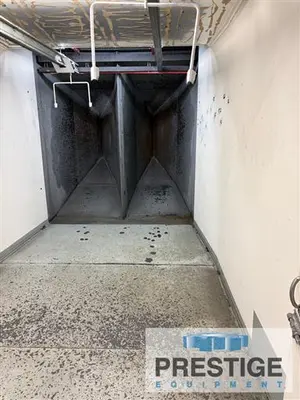

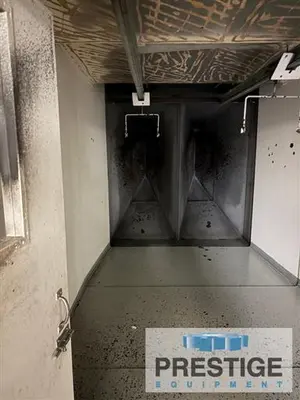

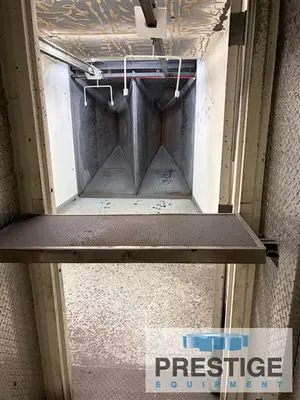

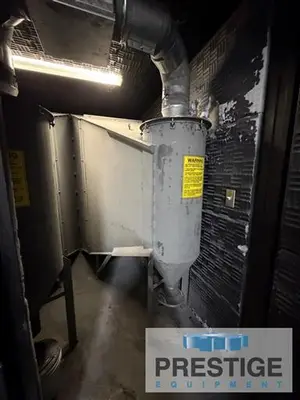

- Vertical Chamber Bullet Traps:

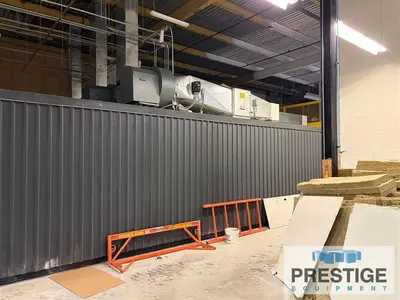

- QuickRange is manufactured using Berridge Siding, exposed fastener Corrugated Panels:

NOTE:
Inspect in Plant.:

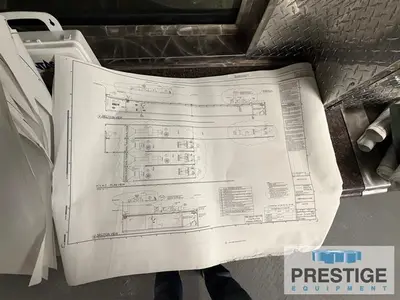

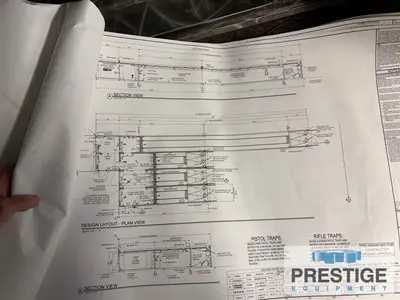

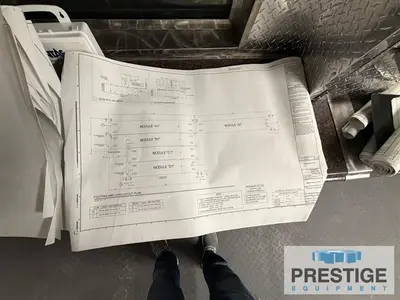

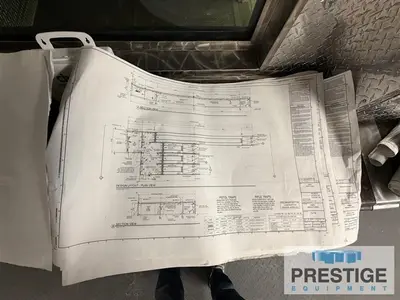

Full Drawings and Specifications Available on Request.:
