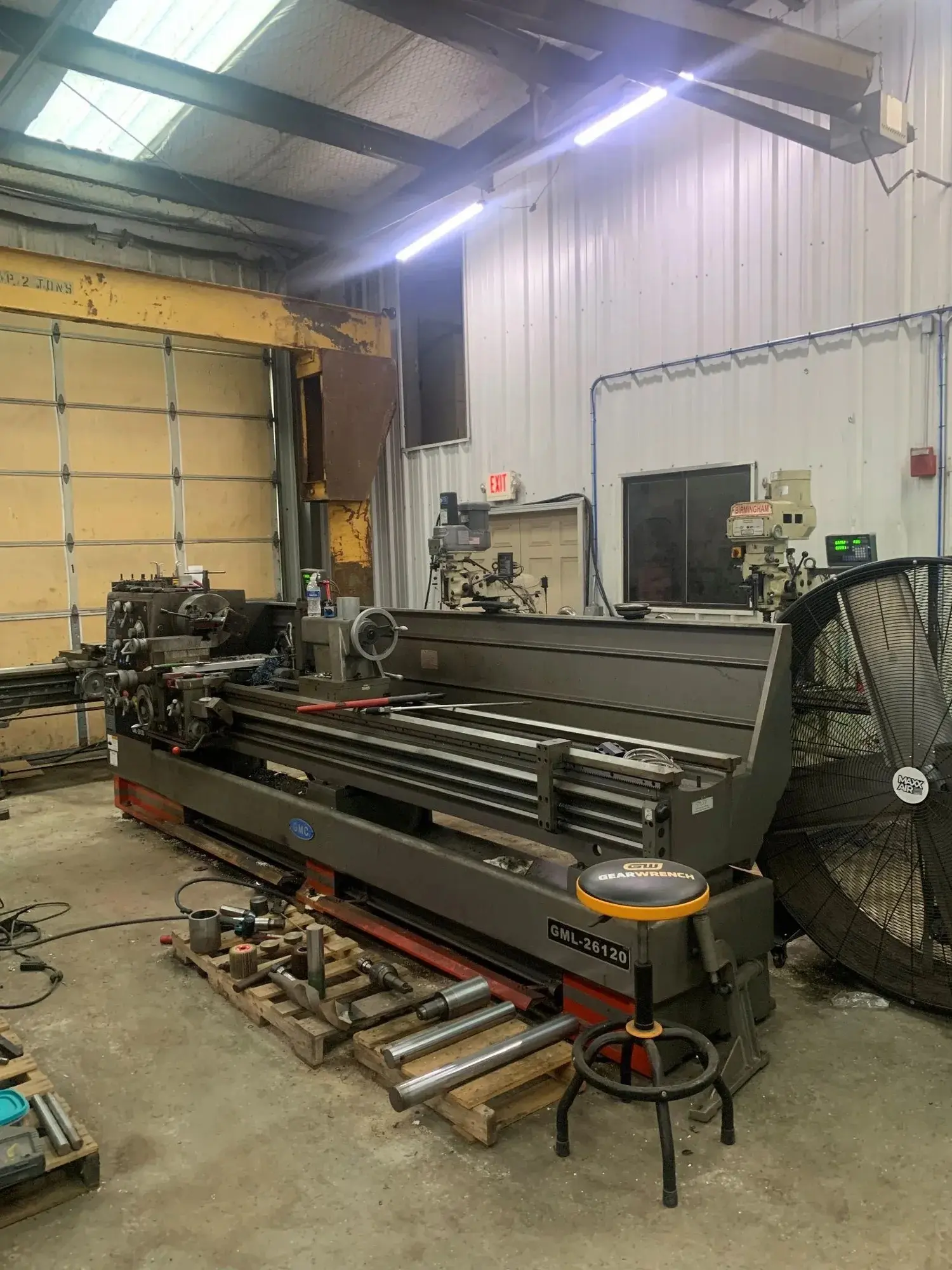

USED 2022 GMC GML-26120

Max. Swing Over Bed: 26″
Max. Length of Workpiece: 120″
Max. Swing Over Cross Slide: 17 1/4″
Max. Swing in Gap: 35 3/8″
Width of Bed: 16″
Effective Length in Gap to Spindle: 9″
Effective Length in Gap to Chuck Jaws: 4 1/2″
Spindle Bore: 4 1/8″, D1-8
Taper of Spindle Center: M.T. #5
Spindle Speeds: 25 – 1,600 RPM / 16 Steps
Longitudinal Feeds: 0.0016 – 0.055 IPR / 25 Kinds
Cross Feeds: 0.0008 – 0.027 IPR / 25 Kinds
Inch Threads: 80 7/16″ TPI / 54 Kinds
Metric Threads: 0.45 – 120 MM / 54 Kinds
Module Threads: 0.25 – 60 MM / 46 Kinds
Diametral Pitch Threads: 7/8 – 160 DP / 42 Kinds
Max. Travel of Top Slide: 9″
Max. Travel of Cross Slide: 14 1/2″
Spindle Length without Chuck: 20 1/2″
Lead Screw Length x TPI: 1 1/4″ x 4 TPI
Diameter of Tailstock Quill: 3 1/2″
Max. Travel of Tailstock Quill: 9 1/4″
Taper of Tailstock Quill Center: M.T. #5
4-Way Rapid Traverse on the Carriage, Cross and Longitudinal Ways
Motor: 15 HP / 220v, 440v / 3ph
