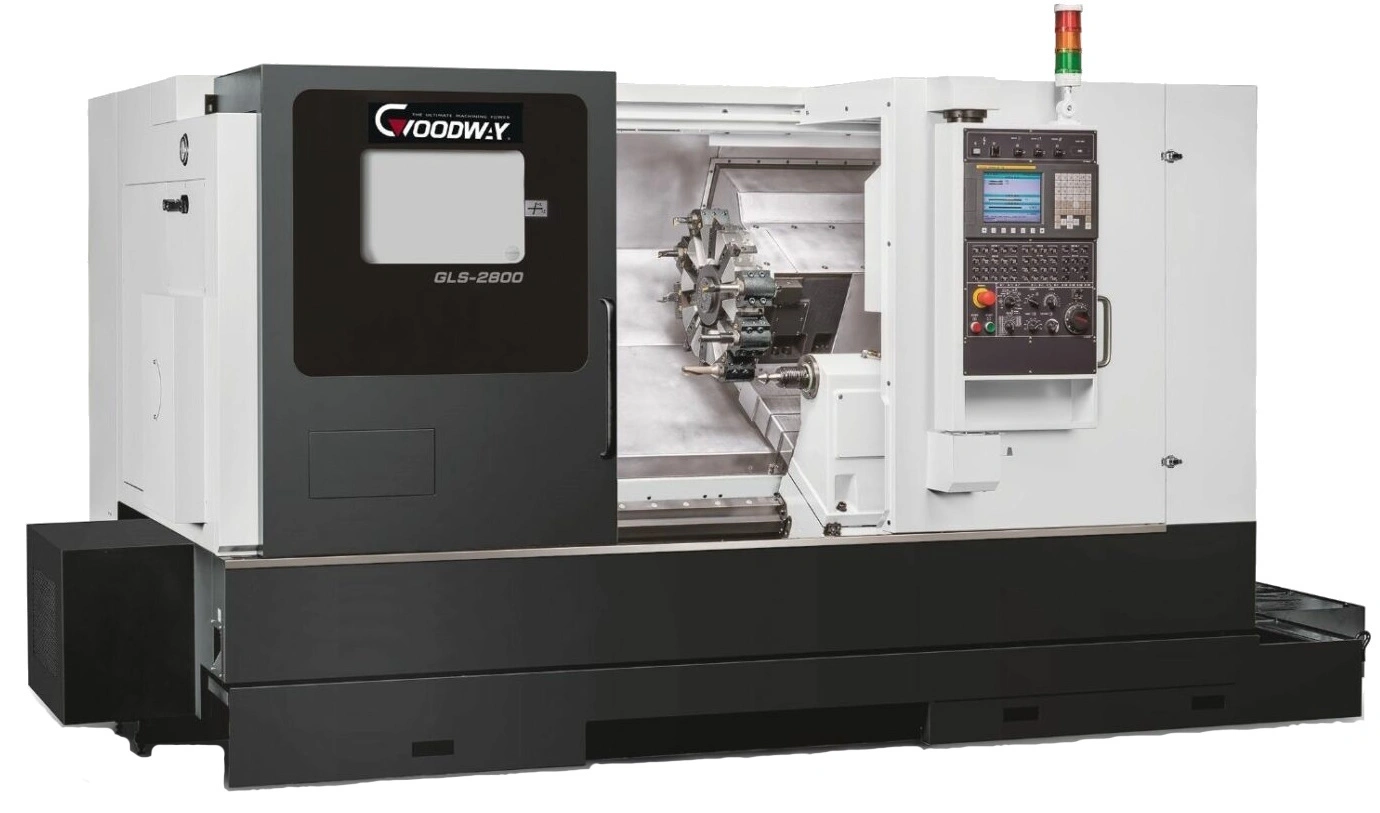

NEW GOODWAY GLS-2800 | DEMO UNIT
Overview
Description
The GOODWAY GLS-2800Y CNC Turning Center is a brand-new unit, opened only for demonstration purposes and never used in production—available now from MEGATEL CNC Solutions. This high-performance CNC lathe with Y-axis and live tooling is engineered for complex, high-precision turning, milling, and drilling applications. Featuring the latest FANUC 0i-TF Plus control, a 12-station live tooling turret, C-axis with disk brake, and ±50mm of Y-axis travel, the GLS-2800Y is designed for multi-tasking CNC machining with outstanding accuracy and flexibility. Its powerful 15/18.5 kW spindle motor, 3,500 RPM max speed, and 78 mm bar capacity make it ideal for high-speed, heavy-duty machining of medium-to-large diameter parts. This model comes fully equipped with automation-ready features including a chip conveyor, parts catcher, Renishaw tool setter, oil skimmer, and bar feeder interface, making it a smart choice for manufacturers in aerospace, automotive, mold & die, and general machining industries.
Backed by MEGATEL CNC’s local service support in Québec and a 2-year parts and labor warranty, this in-stock CNC lathe is ready to boost your shop’s productivity with reliable and efficient machining performance.
Key Features:
• Brand-new unit – opened for demo only, never used in production
• Fanuc 0i-TF Plus control with Manual Guide i
• Y-axis travel ±50 mm for off-center milling
• C-axis with 0.001° indexing and disk brake
• 12-station live tooling turret (built-in 7 HP motor)
• Max turning diameter: 440 mm | Max turning length: 710 mm
• Large bar capacity: 78 mm (3.07") | Spindle speed: 3,500 RPM
• Includes chip conveyor, oil skimmer, parts catcher, and tool setter
• Bar feeder interface with extra M-code included
Specifications
| Max Swing Diameter | 760 mm | 29.921" |
|---|---|---|
| Swing Over Saddle | 450 mm | 17.717" |
| Max Turning Diameter | 440 mm | 17.323" |
| Max Turning Length | 710 mm | 27.953" |
| Standard Chuck Size | 10" | 254 mm |
| Standard Bar Capacity | 75 mm | 2.9528" |
| Hole through spindle | 90 mm | 3.5433" |
| Spindle Bearing Diameter | 130 mm | 5.1181" |
| Spindle Nose | A2-8 | A2-8 |
| X/Z Axis Rapid | 30 m/min | 30 m/min |
| Spindle Speed | 3,500 RPM | 3,500 RPM |
| Spindle Drive System | 15 kW | 20.1 hp |
| Motor Output | 15 kW | 20.1 hp |
| C-Axis Drive Type | Cf | Cf |
| Y-Axis Turning Dia | 400" | 10,160 mm |
| Y-Axis Travel | 50 mm | 1.9685" |
| Feed Rates | 1-4800 mm / min | 1-4800 mm / min |
| Y-Axis Rapids | 12 m/min. | 472.4 in/min. |
| X/Y Axis motor | 3.6 hp | 2.7 kW |
| X-Axis Ball Screw (Ø) | 36 mm | 1.4173" |
| Z-Axis Ball Screw (Ø) | 10 mm | 0.3937" |
| CTS | 7 Bar | 7 Bar |
| CN Control | Fanuc 0i-TF Plus | Fanuc 0i-TF Plus |
| Weight | 6,000 kg | 6,000 kg |
Equipped With
FANUC OITF PLUS CONTROL WITH 10.4" LCD SCREEN
FANUC P TYPE SPINDLE MOTOR 11/15KW
10" TAIWAN MADE 3-JAW CHUCK BIG BORE (80MM BAR CAPACITY) WITH 1 EACH HARD /SOFT JAW
Y-AXIS
GOODWAY 12ST TOOLING TURRET, DRIVEN TOOL MOTOR 3.7/5.5KW, ID SHANK 40MM OD SHANK 25MM, LIVE TOOL COLLET ER-32 (1-20MM), INCL. 1 EA. 0&90 DEGREE DRIVEN TOOL HOLDER
CF-AXIS WITH DISK BRAKE ON MAIN SPINDLE (MAX. SPEED 33RPM, TORQUE 240 N-M)
HPMA TOOL SETTER (FOR MAIN SPINDLE ONLY)
HYDRAULIC TYPE LP-1 PROGRAMMABLE TAIL STOCK (QUILL/BODY ARE PROGRAMMABLE) (LIVE CENTER MT4, QUILL DIA. 70MM, QUILL TRAVEL 150MM, TAILSTOCK TRAVEL 600MM)
MT4 LIVE CENTER
CHIP CART
2 SETS x 0° LIVE TOOL HOLDER
2 SETS x 90° LIVE TOOL HOLDER
MACHINE SHIP TO MOROCCO WITH METRIC SPEC
COOLANT SYSTEM
WORK LIGHT
SHIELD COVER
HYDRAULIC SYSTEM
AUTO. LUBRICATION
CONTROL X/Z FANUC AC SERVO MOTOR
ELECTRICAL CABINET HEAT EXCHANGER
CYCLE STOP ALARM LIGHT
12 STATION STANDARD TURRET WITH TOOLHOLDER PACKAGE
CHIP CONVEYOR
MTH2-30 COOLANT PUMP
