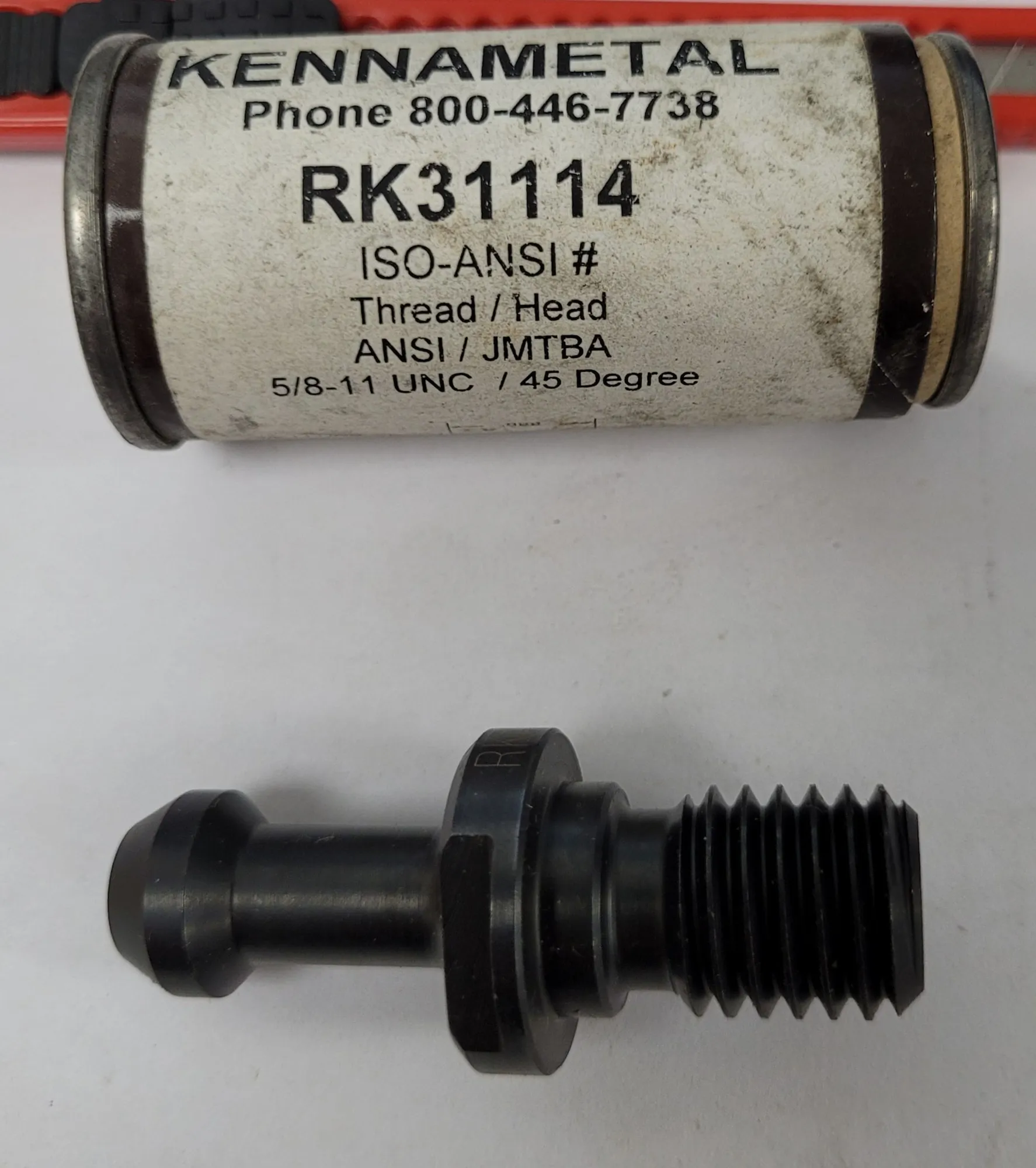

NEW KENNAMETAL RK31114

Kennametal RK31114 Thread/Head, 5/8-11, 45° angle. New condition, perfect for tooling needs. Specs: Body Ø .9380, Neck Ø .3920, Pilot Ø .6360, Head Ø .5890. Functional length .9880, overall 2.250. Torque 85 ft lbs with RKW40 wrench.

Kennametal Thread/Head RK31114 - 5/8-11 / 45 Degree

ANSI Catalog Number RK31114
Hardware System Size Workpiece Side 40
Connection Thread Size External 5/8 - 11
Half Taper Angle 45.000
Body Diameter Machine Side .9380
Neck Diameter .3920
Pilot Diameter Workpiece Side .6360
Head Diameter .5890
Functional Length .9880
Protruding Length 1.264
Overall Length 2.250
Wrench RKW40
Torque Catalog Foot Pounds 85
