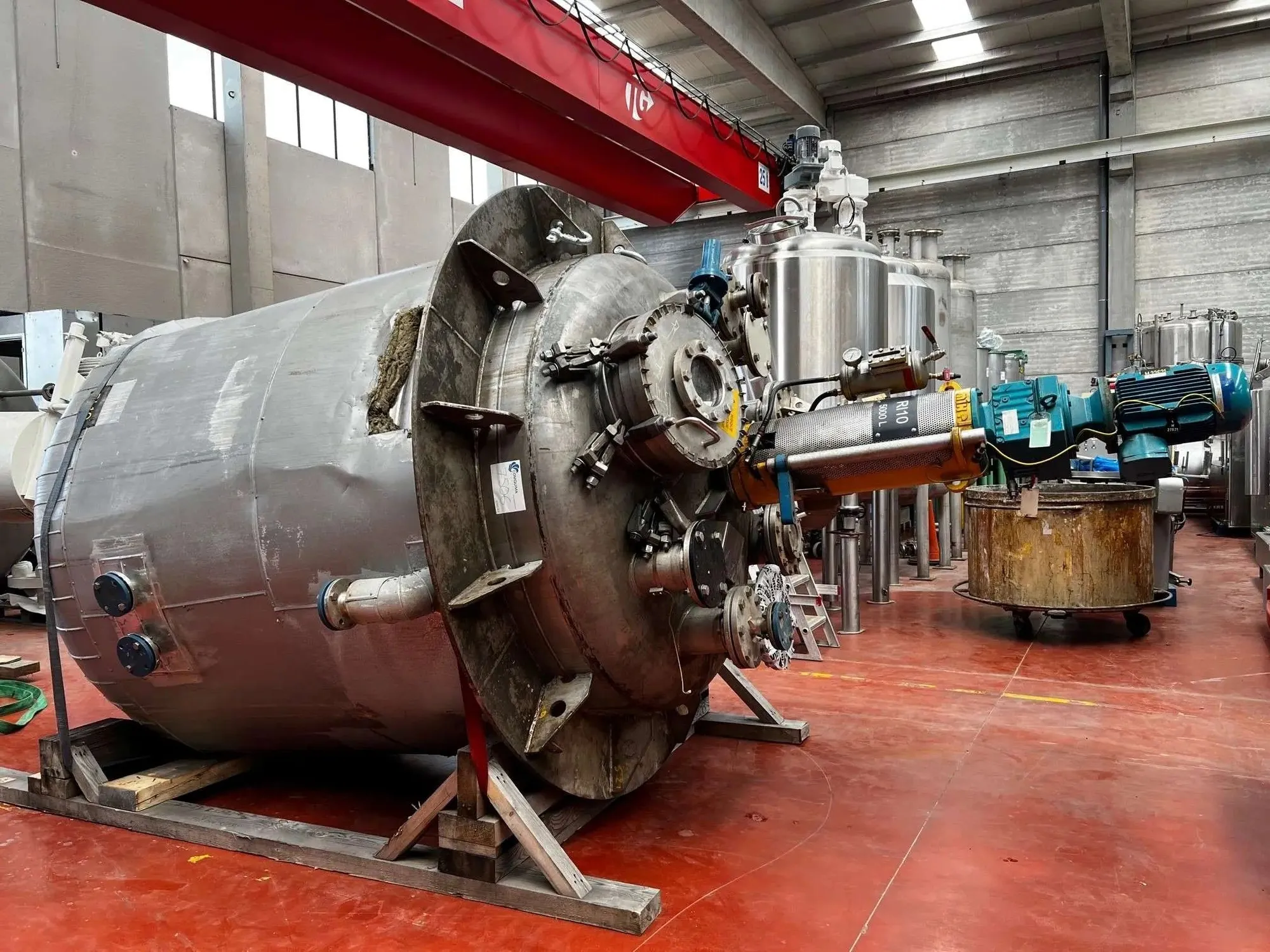

Reactor of the brand E.BACHILLER, made in stainless steel, with agitation and half cane.
Klopper bottom with DN50 and DN80 connections.
Lateral connections DN25 and DN50.
Klopper upper bottom with 495 mm diameter manhole. Connections: 5 flanges DN25, 10 flanges DN50, DN80, DN100 and DN150.
On 4 gussets.
Body pressure:-1/+3 bar
Half shank pressure: 10 bar
Temperature: 150 ºC
Half shank volume: 340 litres.
Stirring motor: 11kw at 1465 rpm
Volume
Total capacity: 14100 L
Technical features:
Vessel working pressure: -1/+3 bar
Vessel working temperature: 150 ºC
Half-coil/jacket working pressure: 10 bar
Half-coil/jacket volume: 340 L
Agitator motor: 11 kW 1465 rpm
Top bottom: Klopper
Bottom: Klopper
Dimensions:
Shell height 2450 mm
| Capacity | 3,725.7 gal | 14,103.4 L |
| Internal Pressure | -13 PSI | -0.9 bar |
| Internal Temperature | 150°F | 65.6°C |
| Jacket Pressure | 145 PSI | 10 bar |
| Diameter | 19.5" | 495.3 mm |
| Straight Side | 96.457" | 2,450 mm |
| Type Of Heads | Klopper | Klopper |
| Legs/Lugs | 4 | 4 |
| Dimensions | 96.5 in | 96.5 in |
