| X | 26" | 660.4 mm |
| Y | 16" | 406.4 mm |
| Z | 20" | 508 mm |
| Power | 15 hp | 11.2 kW |
| RPM | 10,000 RPM | 10,000 RPM |
| # ATC | 20 | 20 |
| Table-W | 30" | 762 mm |
| Table-L | 14" | 355.6 mm |

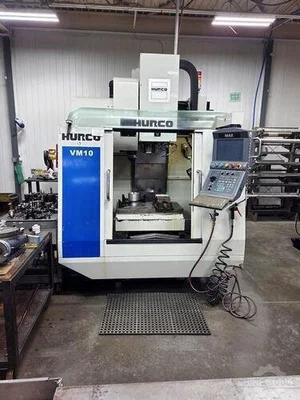

26” X 16” X 20” Vertical Machining Center with Hurco WinMax CNC Control, 20 - Station ATC, Side - Mounted Swing Arm Tool Changer Style, Automatic Central Lubrication System and Coolant System.GENERAL SPECIFICATIONS Table Size: 30” X 14”Table Load Capacity: 750 LbsX - Axis Travel: 26”Y - Axis Travel: 16”Z - Axis Travel: 20”Rapid Traverse Rate: 945 IPMMax Spindle Speed: 10,000 RPMTorque: Up to 54FT-Lbs @ 1,450 RPMAutomatic Tool Changer: 20Approximate Dimensions: 95” X 118” X 100” HApproximate Weight: 6,400 LbsINCLUDES: Hurco WinMax CNC Control, 20 - Station ATC, Side - Mounted Swing Arm Tool Changer Style, Automatic Central Lubrication System and Coolant System.
