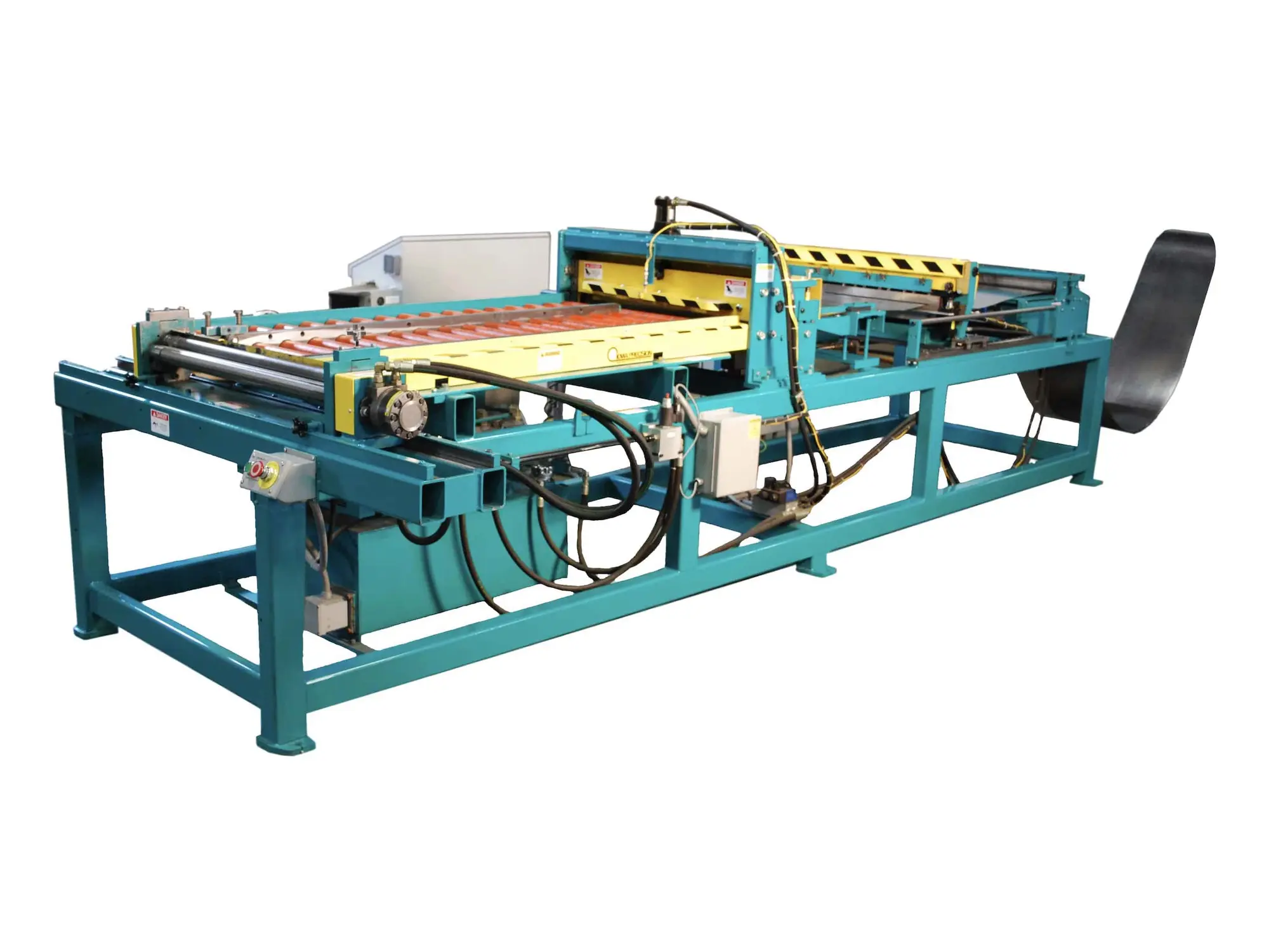

Tube-Matic HVAC Duct Elbow Blanking Machine

The Iowa Precision® Tube-Matic™ elbow blanking line provides highly accurate punched, crimped, beaded and rolled blanks ready for processing and is an ideal companion line for the Iowa Precision Adjustable Elbow Machines. Tube-Matic models permit automatic production of elbow blanks in diameter ranges of 3 to 16 inches or 3 to 24 inches (high speed model) with rates up to 3,150 per hour. A programmable controller maintains batch counts and blank cut-off lengths. All cut-off shears are made of premium quality, high carbon/high chrome D2 tool steel for exceptional long-life. With Tube-Matic, the entire fabrication line is easily managed by a single operator, reducing labor requirements. Plus, all Tube-Matic lines are backed by the Iowa Precision one year guarantee.
AEMTM 3-16
Capacity

Size: 3” to 16″ diameter
Speed: Up to 1,200 blanks / hour
Material: .030″ max, 24″ wide

Uncolier

Capacity: 3,000 lbs., optional: 6,500 lbs.
Max Diameter: 54″, optional: 60″
ID Range: 15″ to 21″, optional: 13″ to 17″

Power: 7.5 hp, 220VAC, 14/7 amp, 3 phase
Dimensions / Weight: 120″ / 205″ (L) x 60″ (W) x 51″ (H), 4,450 lbs.
Size: 3” to 16″ diameter
Speed: Up to 1,200 blanks / hour
Material: .030″ max, 24″ wide
Capacity: 3,000 lbs., optional: 6,500 lbs.
Max Diameter: 54″, optional: 60″
ID Range: 15″ to 21″, optional: 13″ to 17″
AEMTM 3-24
Capacity

Size: 3” to 24″ diameter
Speed: Up to 1,200 blanks / hour
Material: .030″ max, 32″ wide

Uncolier

Capacity: 5,000 lbs., optional: 8,000 lbs.
Max Diameter: 60″
ID Range: 13″ to 17″, optional: 14″ to 18″

Power: 7.5 hp, 220VAC, 14/7 amp, 3 phase
Dimensions / Weight: 120″ / 205″ (L) x 60″ (W) x 51″ (H), 4,450 lbs.
Size: 3” to 24″ diameter
Speed: Up to 1,200 blanks / hour
Material: .030″ max, 32″ wide
Capacity: 5,000 lbs., optional: 8,000 lbs.
Max Diameter: 60″
ID Range: 13″ to 17″, optional: 14″ to 18″
AEMTM-HS 3-24
Capacity

Size: 3” to 24″ diameter
Speed: Up to 3,500 blanks / hour
Material: .030″ max, 32″ wide

Uncolier

Capacity: 5,000 lbs., optional: 8,000 lbs.
Max Diameter: 60″
ID Range: 13″ to 17″, optional: 14″ to 18″

Power: 7.5 hp, 220VAC, 14/7 amp, 3 phase
Dimensions / Weight: 120″ / 205″ (L) x 60″ (W) x 51″ (H), 4,450 lbs.
Size: 3” to 24″ diameter
Speed: Up to 3,500 blanks / hour
Material: .030″ max, 32″ wide
Capacity: 5,000 lbs., optional: 8,000 lbs.
Max Diameter: 60″
ID Range: 13″ to 17″, optional: 14″ to 18″
