NEW ISCAR IC908
Overview
Discover precision with Iscar IC908 Inserts! Brand-new, featuring 9 packs of 2. Ideal for chamfering, drilling, and gundrilling, with solid carbide construction and TiAlN coating. Enhance your tooling arsenal today!
Specs

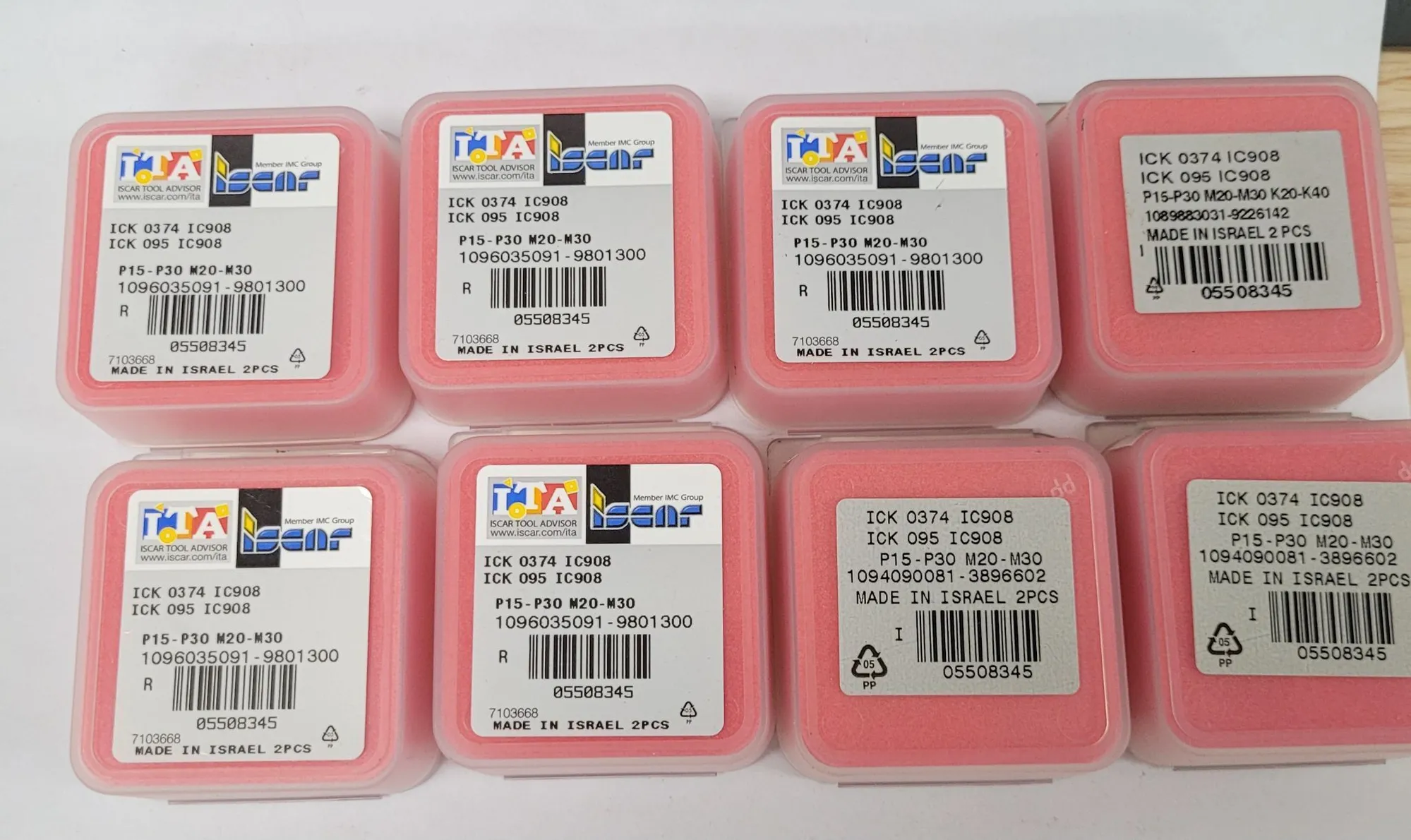

Iscar IC908 Inserts – 9 Packs of 2
9 total packs of 2
8 packs of: ICK 0374 IC908
Cutting Diameter (DC) 0.374″
Measurement Type Inch
Insert Thickness (S) 0.228″
Application | Chamfering | Drilling | Gundrills |
Point Length (PL) 0.08661″
Grade IC908
Point Angle (SIG) 140 Degrees
Tool Type Drilling Heads
Coating TiAlN
Insert Seat Size Code (SSC) 9.0
Chamfer Angle 30 Degrees
Functional Length (LF) 0.142″
Body Material Carbide
Cutting Edge Material Carbide
1 Pack of ICK 0689 IC908
Cutting Diameter (Decimal Inch) 0.6890
Cutting Diameter (mm) 17.50
Tip Material Solid Carbide
Insert Seat Size 17
Functional Length (Decimal Inch) 0.2301
Height (Decimal Inch) 0.39
Height (mm) 10.00
Overall Length/Projection (Decimal Inch) 0.3901
Web Thinning Web Thinned
Drill Point Angle 140
Flute Type Helical
Applications Drilling; Chamfering; Gundrills; Hole Making
