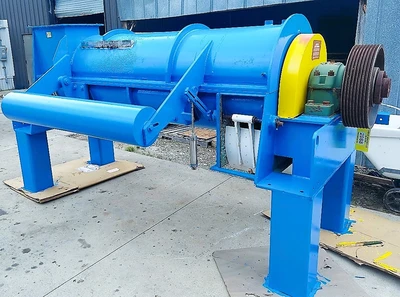

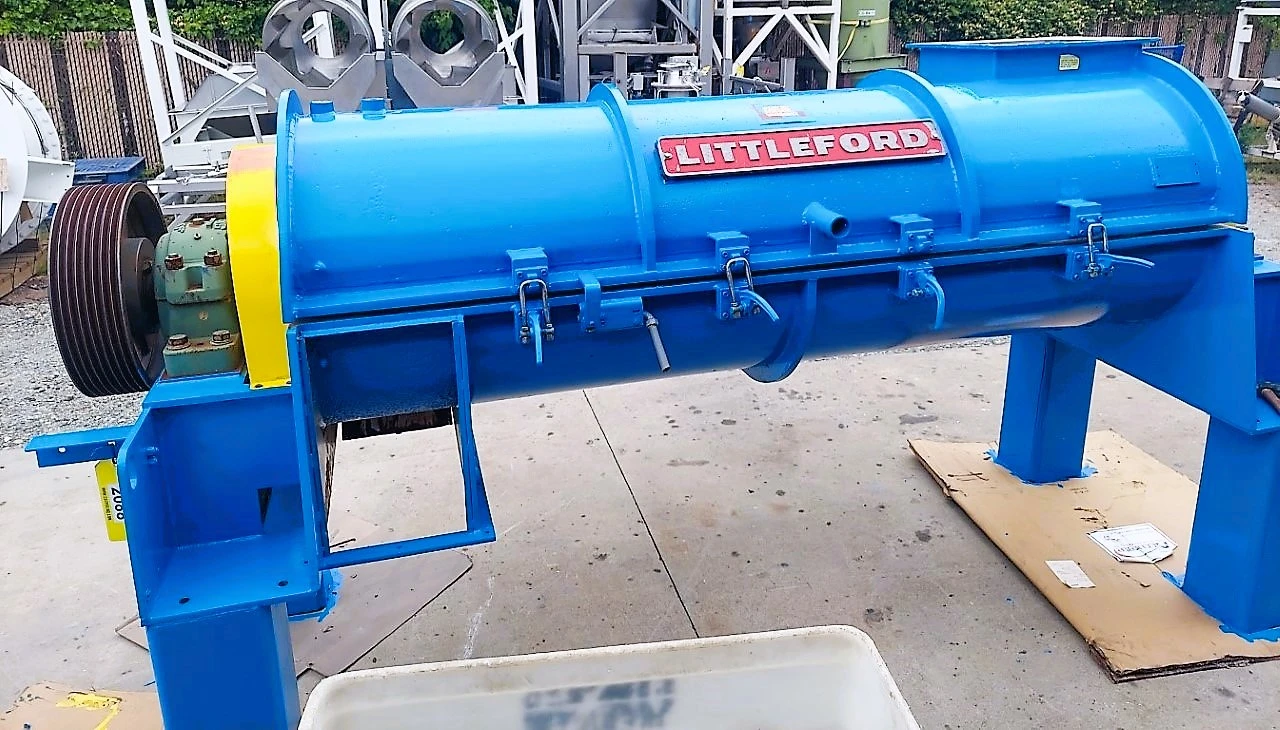

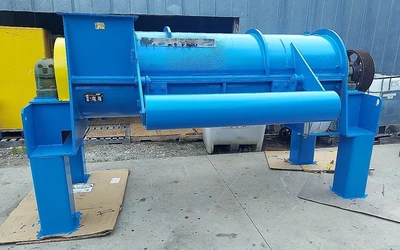

LITTLEFORD DAY PLOW MIXER MODEL EK75AB

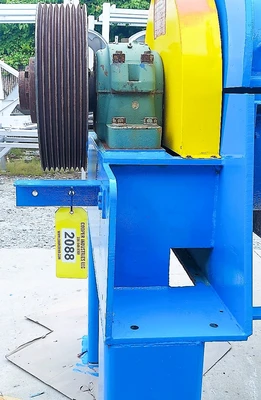

ITEM 2088: LITTLEFORD DAY PLOW MIXER MODEL EK75AB
SERIAL 13607
BUILT 2002
ORIGINALLY DESIGNED AS A MIXER TO MIX LIQUID GLUE WITH WOOD CHIPS.
304 STAINLESS STEEL PRODUCT CONTACT SURFACES, 120 GRIT FINISH.
GLUE MIXING AND METERING SYSTEM TO BE SUPLIED BY CUSTOMER
DRIVE ASSEMBLY AND DRIVE GUARDS TO BE SUPPLIED BY CUSTOMER
LITTLEFORD “LOSPI” WEAR EDGING ON FRONT SIDE OF TOOL SOCKETS ON MAIN SHAFT.

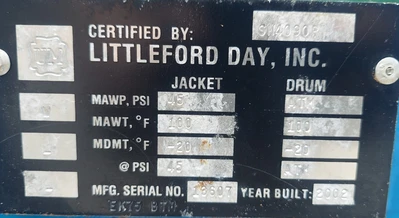

JACKET MAWP PSI 45 PSI; MAWT 100 F; MDMT -20F @ 45 PSI. DESIGNED FOR 35 GPM OF WATER AT 50°F
DRUM MAWP PSI ATMOSPHERIC; MAWT F 100; MDMT F -20 @ ATMOSPHERIC PRESSURE
ASME STAMPED; SN 4090R
15 ¾” x 19 ½” INLET W/ 20 ¼” x 24 ¼” FLANGE
15” x 13 ½” HINGED OUTLET
OVERALL DIMENSIONS ARE 151” LONG X 49” WIDE X 46” TALL.
INTERNAL VOLUME: APPROX 42 CUBIC FT, 1200 LITER
102” L x 30” DIAM
DRAWING ON FILE
HAND ROTATES EASILY.
APPEARS TO BE IDENTICAL TO OUR ITEM # 2087
