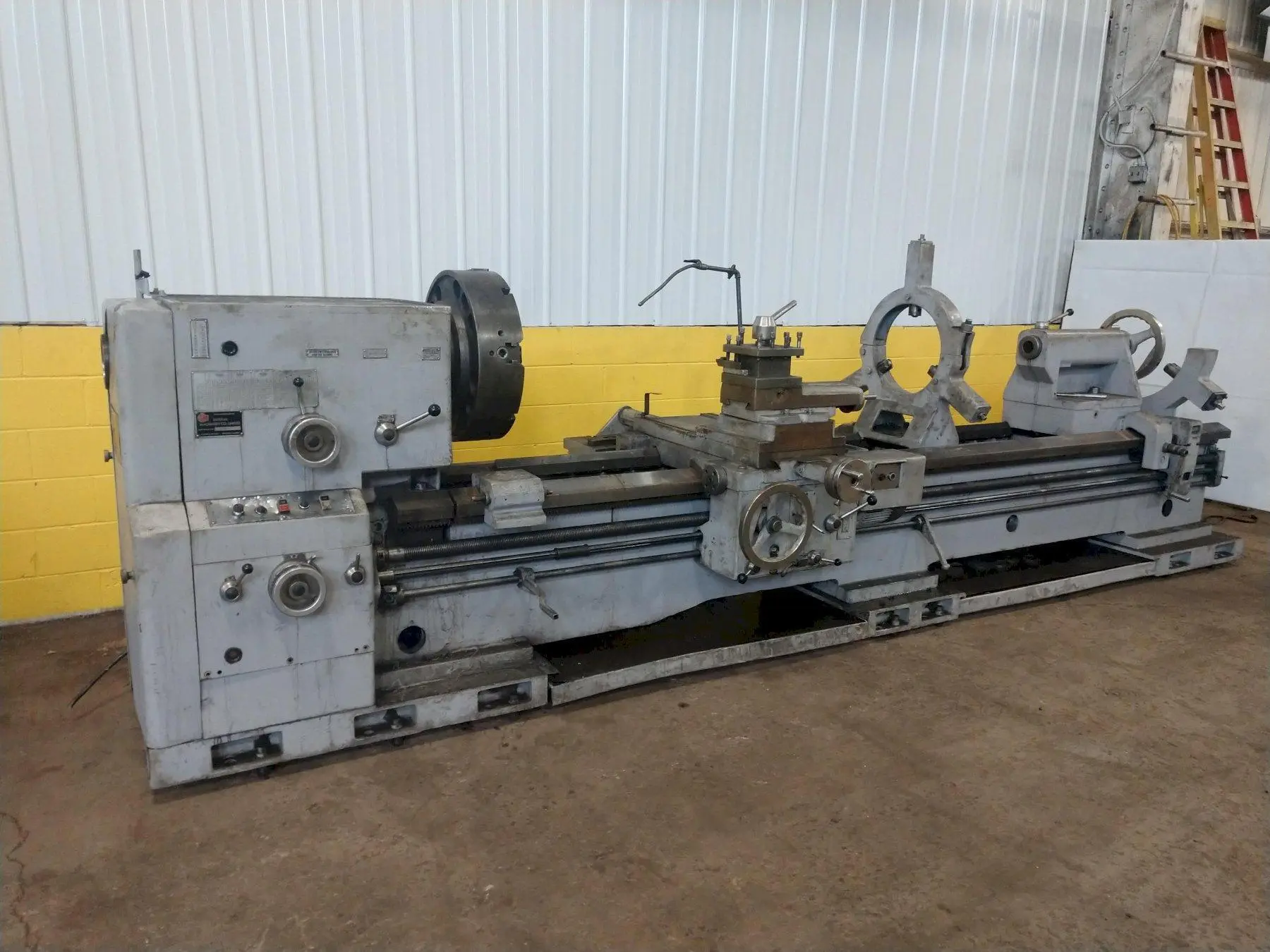

SIRCO PA 36 used engine lathe with a 36" swing over bed, 150" between centers, and 5-1/2" spindle bore. Speeds range 11 to 500 RPM. Includes 24" 4-jaw chuck, steady and follow rests, and a 15 HP motor.
| Swing | 36" | 914.4 mm |
| Centers | 150" | 3,810 mm |
| Spindle Bore | 5.5" | 139.7 mm |
| Power | 15 hp | 11.2 kW |
| RPM | 500 RPM | 500 RPM |
| Swing Over Cross Slide | 25" | 635 mm |
SWING OVER BED ............... 36"
SWING OVER CROSSLIDE ......... 25"
SWING IN GAP ................. 48"
LENGTH OF GAP ................ 24"
DISTANCE BETWEEN CENTERS ..... 150"
SPINDLE BORE ................. 5-1/2"
OVERALL LENGTH ............... 246"
SPINDLE SPEEDS ............... 11 TO 500 RPM
CHUCK ........................ 24" - 4 JAW
THREADING .................... INCH/METRIC
COOLANT ...................... YES
STEADY REST .................. YES, 16"
FOLLOW REST .................. YES, 24"
TAPER ATTACHMENT ............. YES
COOLANT ...................... YES
MOTOR ........................ 15 HP
