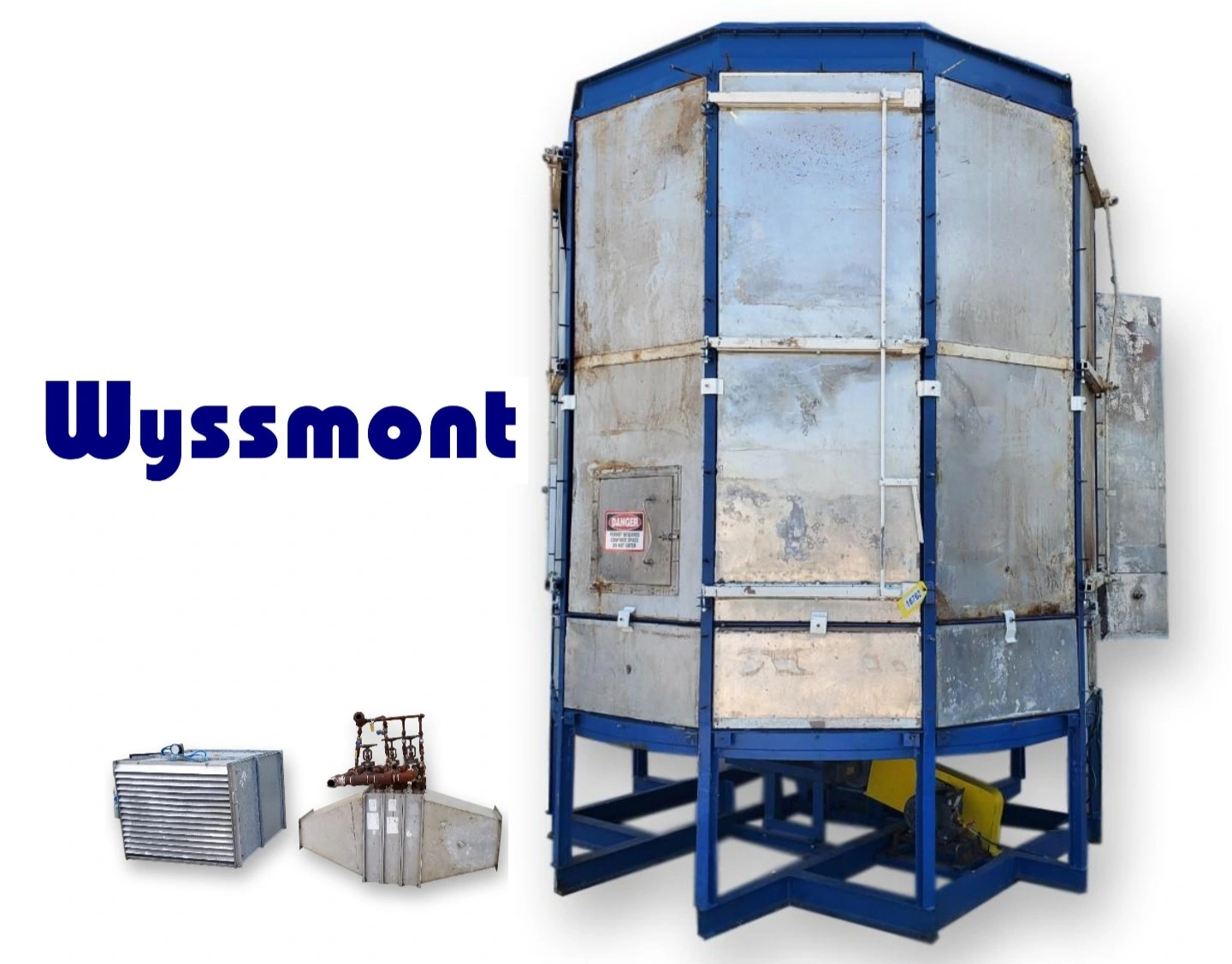

Used Wyssmont Turbo Tray Dryer Model N-22

ITEM# – JMI16762
Structural steel support frame with 1.5″ thick insulated panels, stainless steel sheet cladded.
Base area is a decagon shape measuring 9′-9″ across corners
12′-0″ roof height with a 5″ step-down level.
Dryer Trays: quantity of 22, diameter of 78″, stacked at 4-11/16″ spaces
Product Inlet (roof): 5″ X 15″ sleeve @ 12′-7″ elev.
Product Discharge: 5.5″ X 23″ opening @ 2′-5-1/4″ elev.
Drying Air Outlet (roof): 18″Ø opening @ 12′-0″ elev.
Turbo Fan Drive: 1.5HP with Roto-clone variable speed pulley
Tray Drive: 1HP gearmotor & chain
Heating Coils: quantity of 3 inline Aerofin steam coil heating units
Inlet Air Filter: filter housing, holds 44″W X 35″H HEPA filters
Does not include heater fan
120″ Diameter (129″ W overall) x 151″ H.
Weight ~ 12,000 pounds
Cover panels included.
