100 Cubic Foot Pneumatic Conveying Receiving Bin
Overview

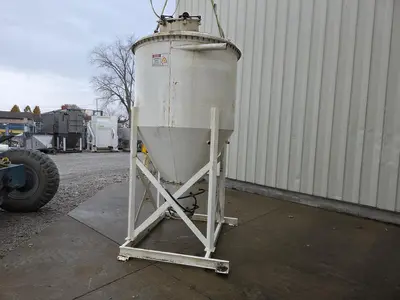

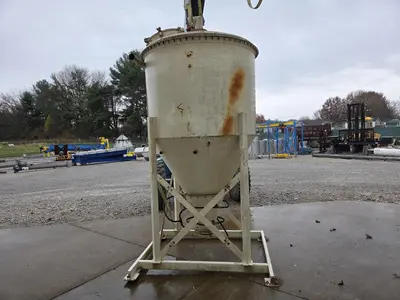

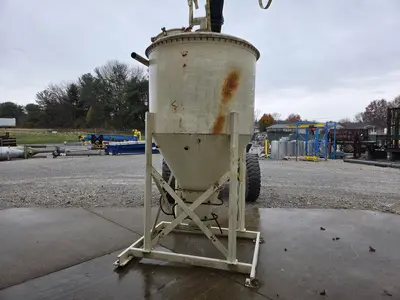

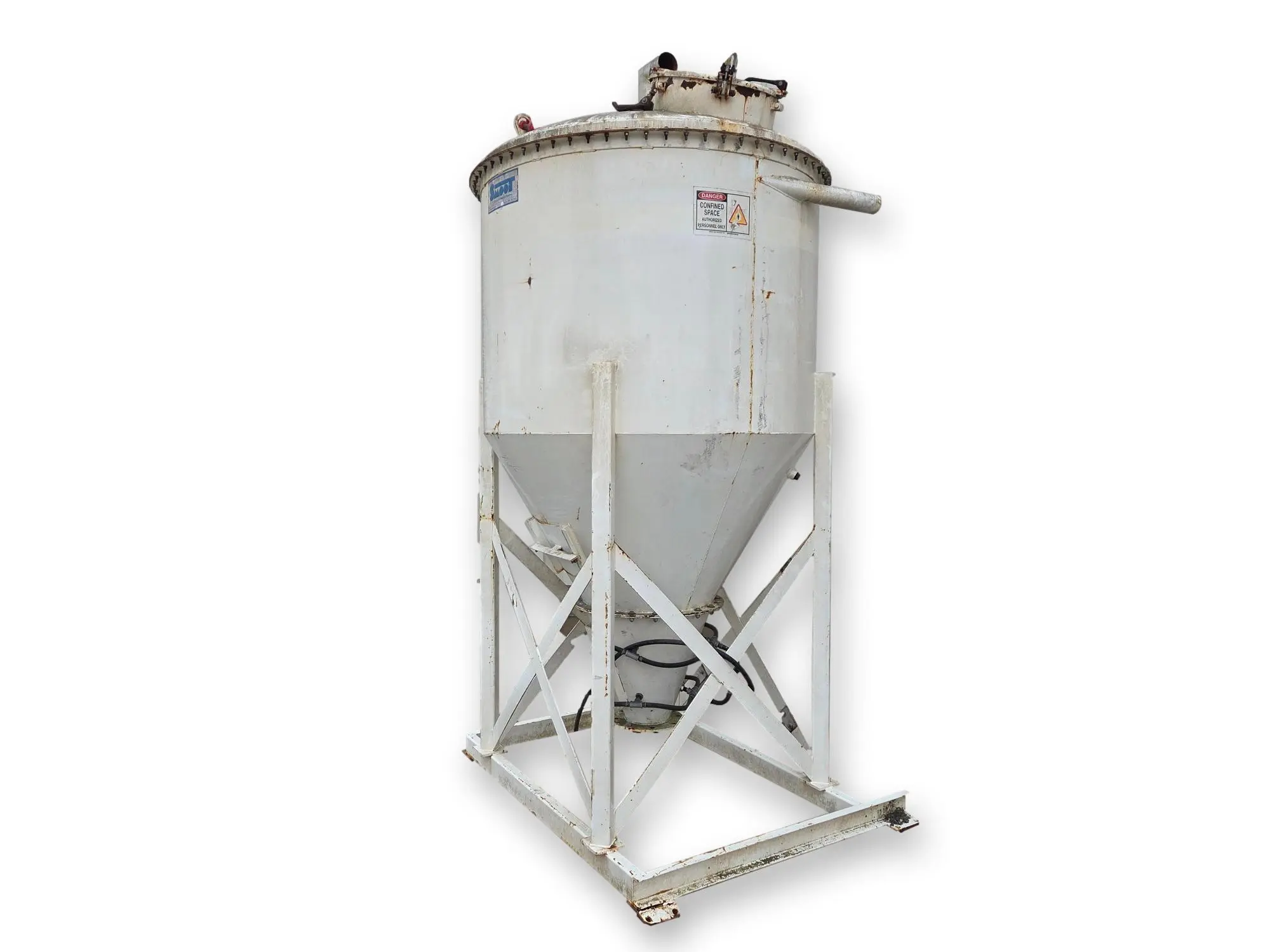

ITEM 1238: 100 Cubic Foot Pneumatic Conveying
Receiving Bin. 60 inch diameter by 44 inches
straight side up to the flange for the cover. Upper sidewall of bin has a 3”
tangential pneumatic conveying inlet pipe.
Flanged cover is approximately 18 inches tall and has a 3 inch vent and
a 20 inch hinged manway with cover. Hopper
is 60° conical with aeration in the bottom removable flanged section. Clearance
from outlet flange to ground is approximately13 inches. Outlet diameter is
approximately 8 inch.
Bottom has round flanged outlet
with removable 8 inch diameter plain end spout outlet. Hopper is carbon steel
construction. Bin is mounted on channel
frame that is approximately 68” wide by 56” long with four 6” x 6“ mounting feet.
Specs
Brand: Taylor
