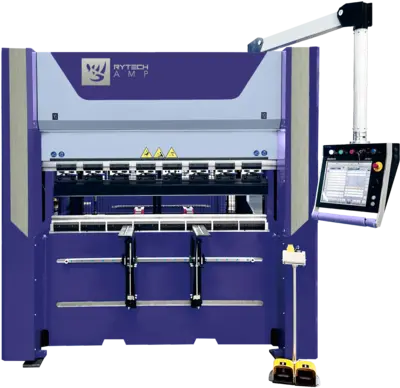

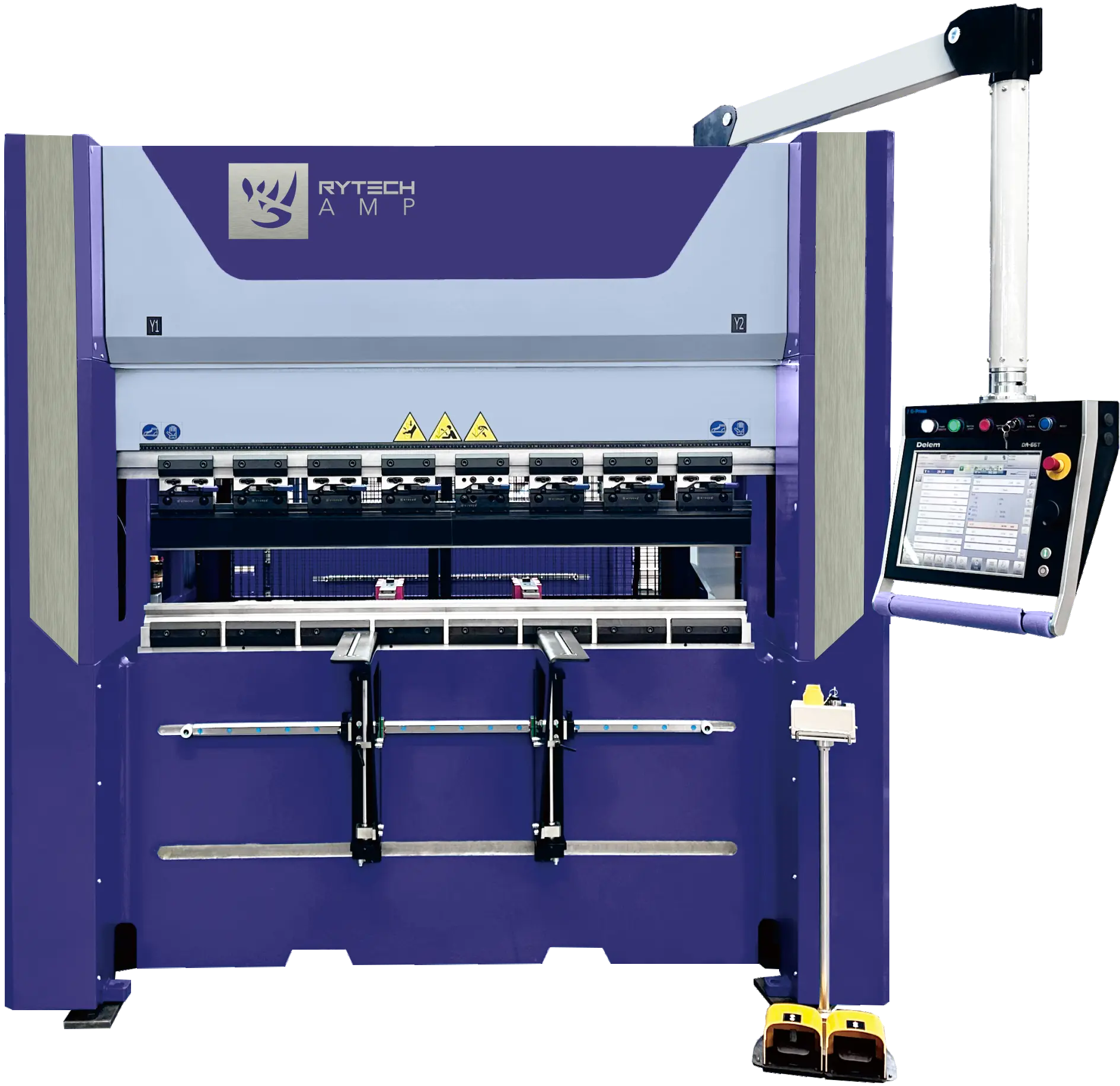

NEW RYTECH AMP SERVO-ELECTRIC PRESS BRAKE
Overview
The RYTECH AMP Servo-Electric Press Brake delivers precision bending, energy efficiency, and reliable performance through advanced electric servo drive and precision ball screw technology. Featuring a rigid O-Frame Structure, Dual Brake Protection, and advanced compensation systems, AMP provides faster cycle times, consistent accuracy, and oil-free operation with reduced maintenance requirements.
Specs
Manufacturer: RYTECH
Model: AMP
Machine Type: Servo-Electric Press Brake
Available Models: AMP 35-1600, AMP 35-2000, AMP 60-1600, AMP 60-2000
Bending Capacity: 38.58–66.14 U.S. Tons
Usable Bending Length: 66.93"–82.68"
Working Length: 62.99"–78.74"
Cylinder Stroke: 7.87"
Daylight: 17.72"
Approaching Speed: 566.93 IPM
Working Speed: 0–59.06 IPM
Return Speed: 566.93 IPM
Servo Motor Power: 24.14–30.84 HP
X-Axis Stroke: 15.75"
R-Axis Stroke: 6.30"
X-Axis Velocity: 1,417.32 IPM
R-Axis Velocity: 708.66 IPM
Z-Axis Velocity: 1,889.76 IPM
Machine Length: 98.43"–127.56"
Machine Width: 68.90"
Machine Height: 82.68"–98.43"
Machine Weight: 6,614–9,921 lbs.
Electrical Requirements: 480V, 3-Phase, 60 Hz
Equipped With
DELEM DA-58TX CNC Control
Y1, Y2, X & R Controlled Axes
Electric Servo Drive System
Precision Ball Screw Drive
Rigid O-Frame Structure
Dual Brake Protection
Structural Compensation System
Ram Compensation Technology
X-R Precision Backgauge System
Two Rear Backgauge Fingers
Manual Single-Side Promecan Upper Clamping
Manual Lower Tool Clamping
Standard Tooling
EZ Front Support
DSP AP+MCS Laser Safety System
Side & Rear Protective Doors
CE/UL Standard
480V, 3-Phase, 60 Hz Electrical System
